Rear Axle Hub And Bearing: Components

WARNING: This page is about a different car, the 2007 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

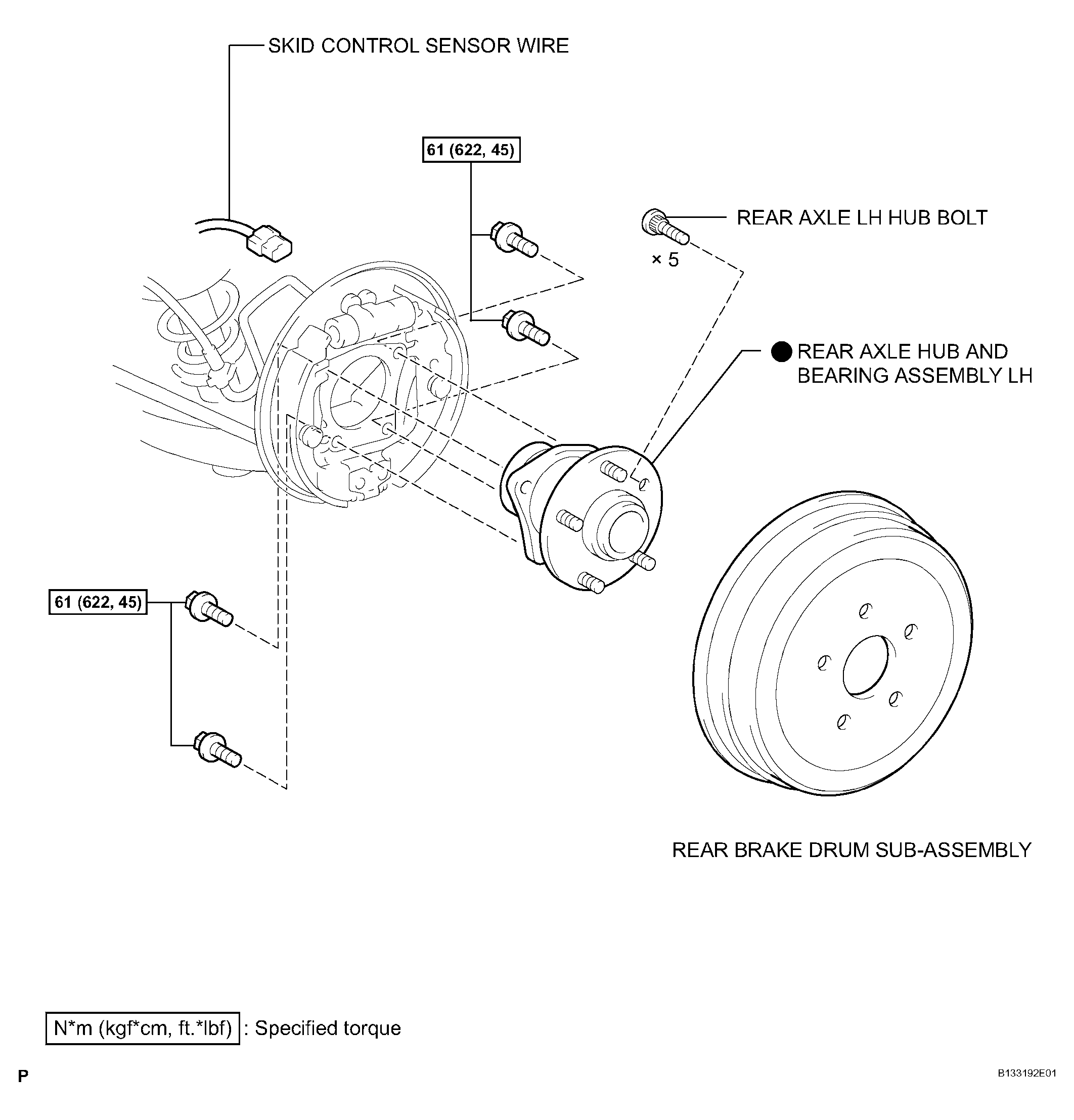

Fig 1: Rear Axle Hub And Bearing Replacement Components -- With Torque Specification
G04474380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
