Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  1. A: Vehicle Identification Number
  2. B: Certification Label

    Fig 1: Identifying Vehicle Identification Number Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
  A: Engine Serial Number

  Fig 2: Identifying Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

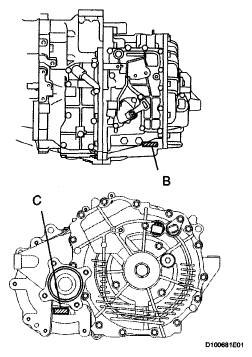

2. The transaxle serial number is stamped on the housing as shown in the illustration.
  B: P310 Transaxle Serial Number

  C: Q211 Transaxle Serial Number

  Fig 3: Identifying Q211 Transaxle Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
