Highlander Hybrid, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Tune-Up
>>
Engine Ignition System (Hybrid)
>>
Ignition System
>>
System Diagram
System Diagram

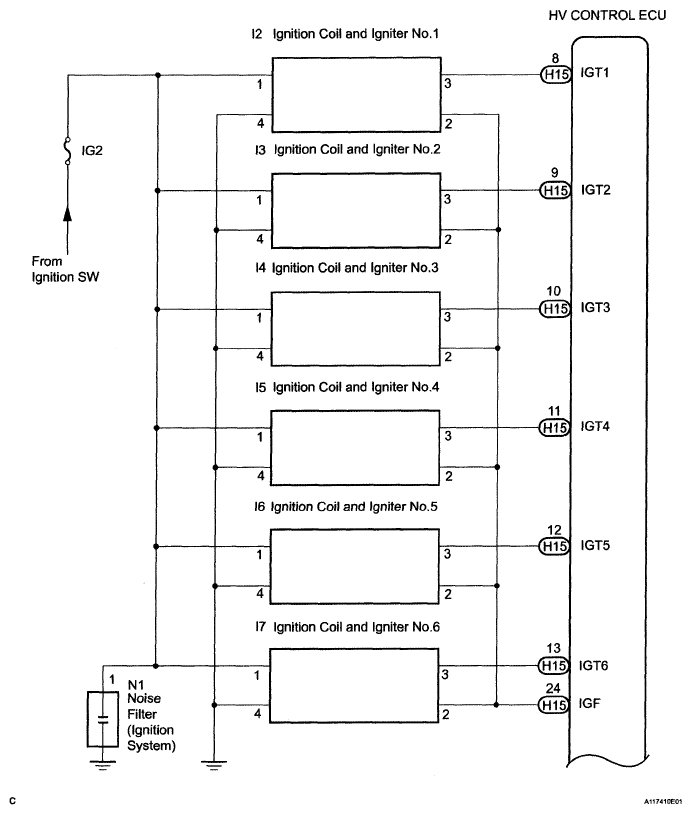

Fig 1: Ignition System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Ignition System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
