Parts Location

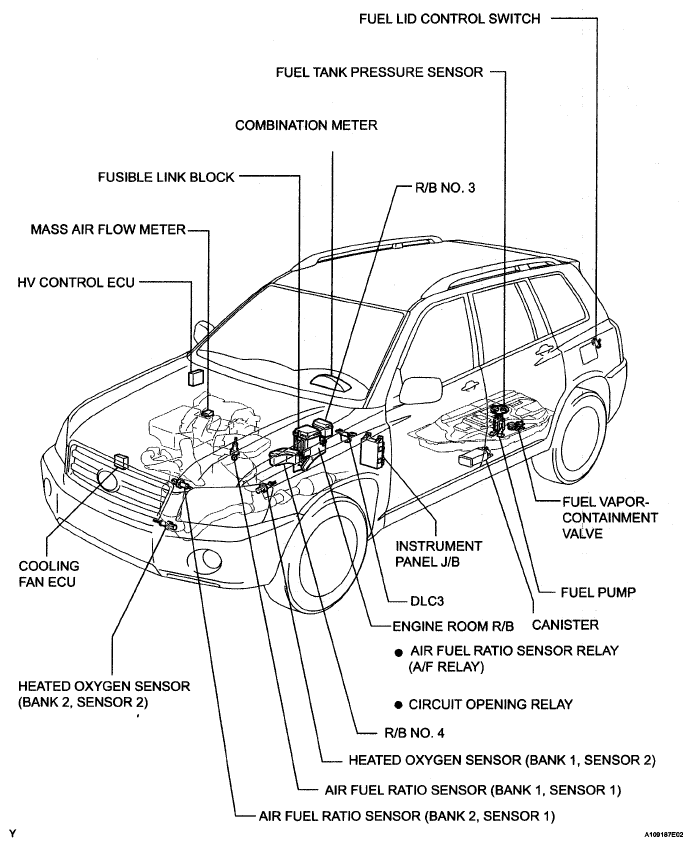

Fig 1: Identifying Engine Control System Components Location (1 Of 2)
G05199970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

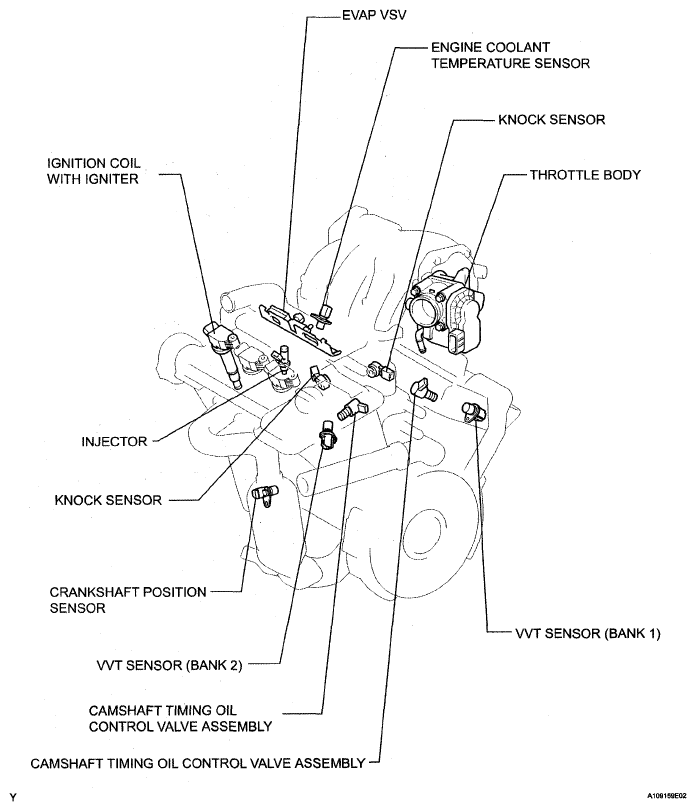

Fig 2: Identifying Engine Control System Components Location (2 Of 2)
G05199971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
