Headlight without Daytime Running Light: Notes

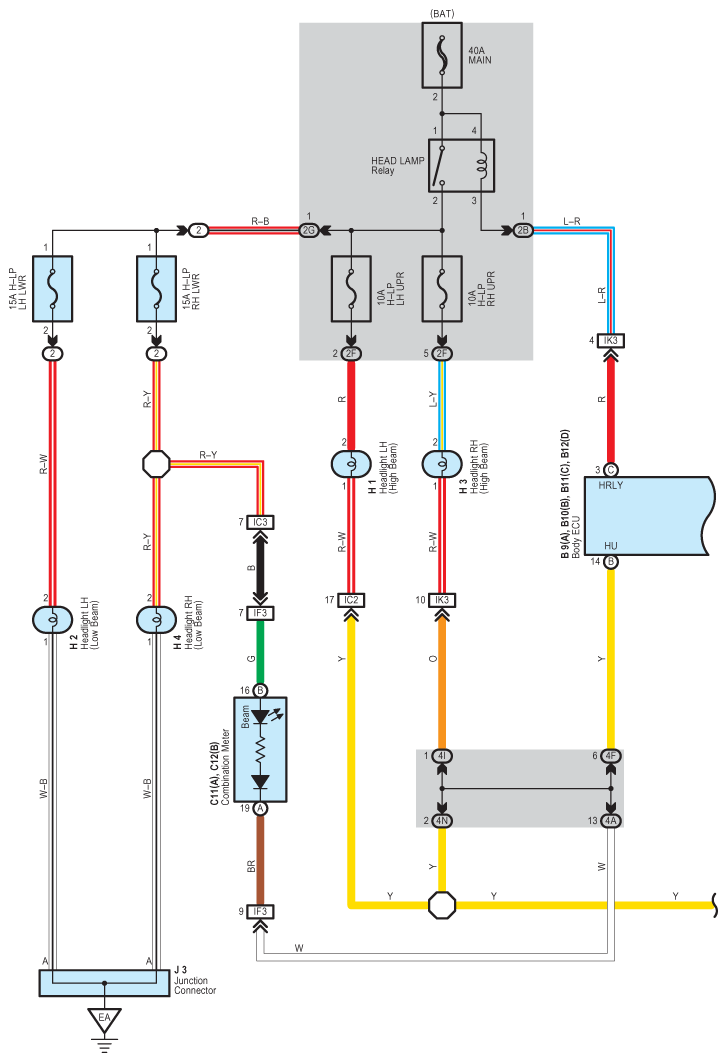

Fig 1: Headlight Without Daytime Running Light System Wiring Diagram (1 Of 2)
G08860905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

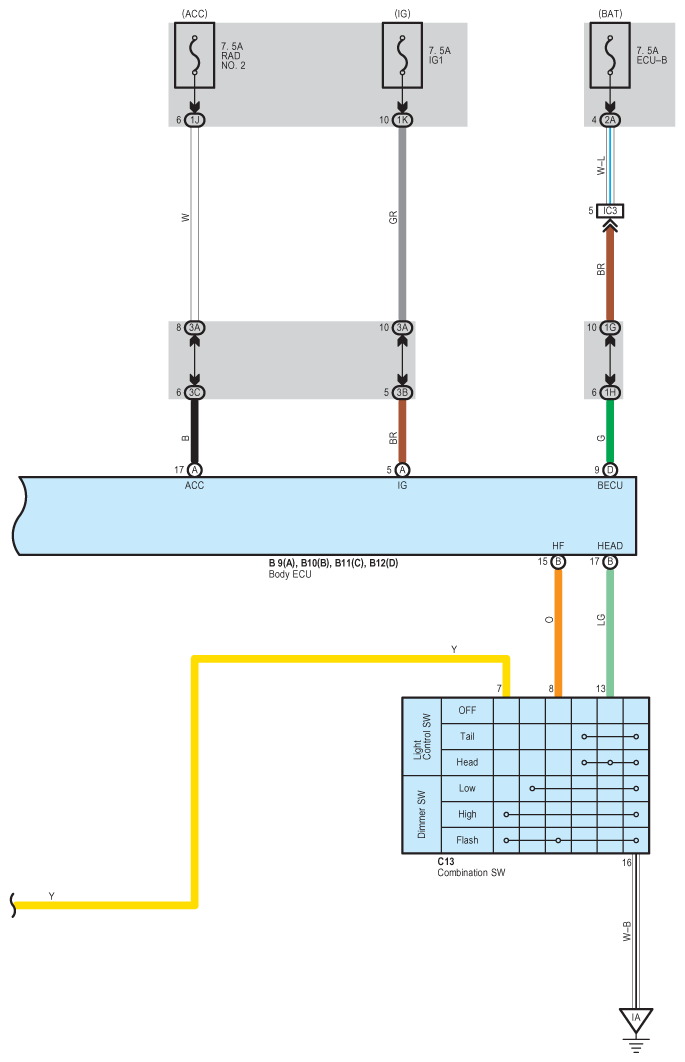

Fig 2: Headlight Without Daytime Running Light System Wiring Diagram (2 Of 2)
G08860906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
