Engine Immobilizer System: Notes

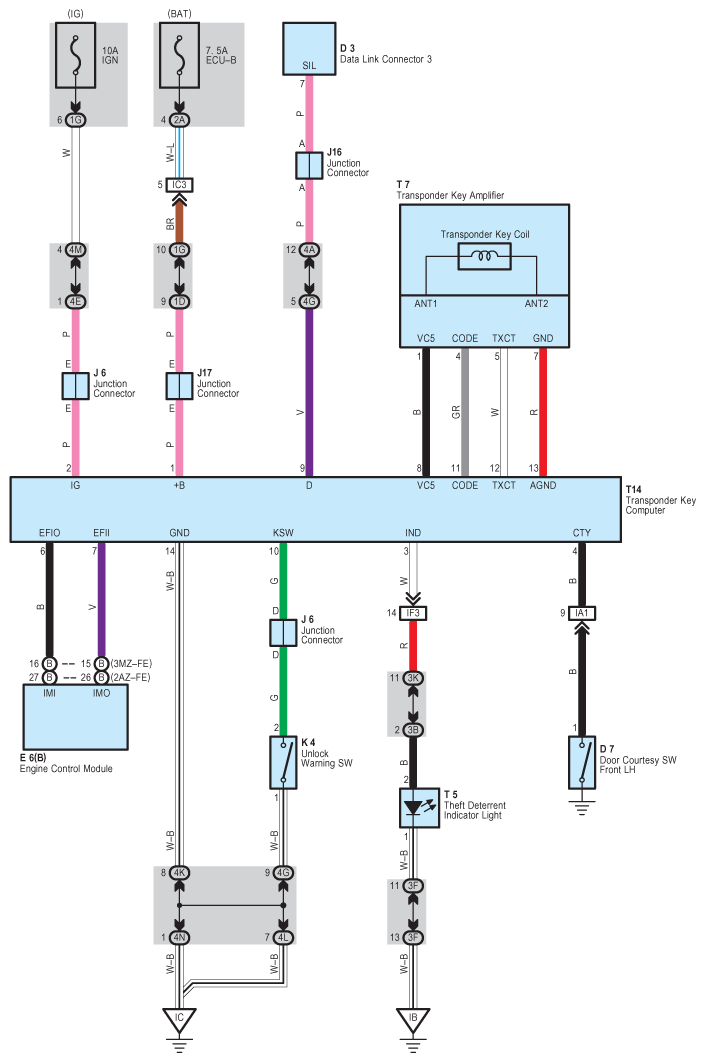

Fig 1: Engine Immobilizer System Wiring Diagram

G08860892

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
