Cruise Control for 3MZ-FE: Notes

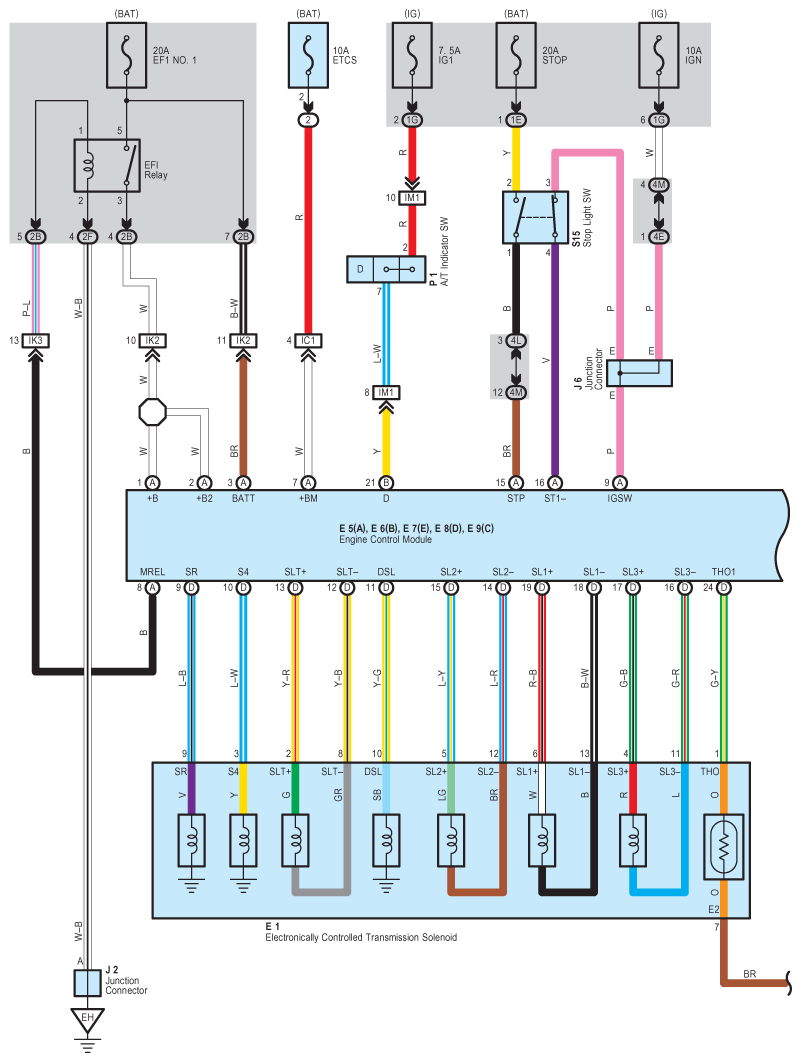

Fig 1: Cruise Control System Wiring Diagram (3MZ-FE; 1 Of 4)
G08860929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

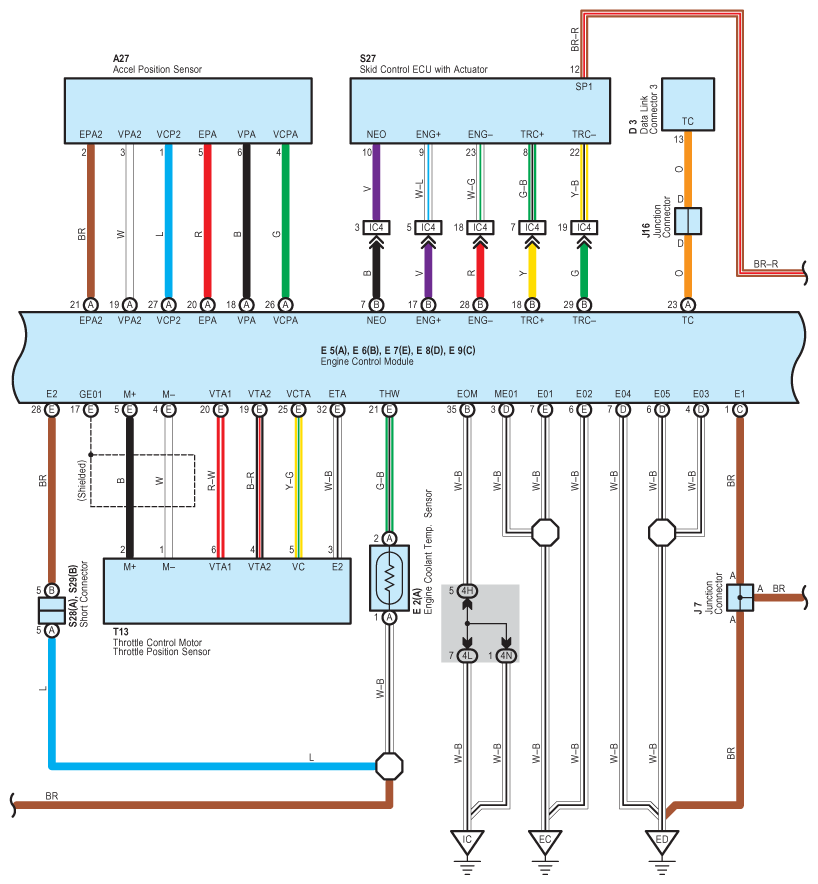

Fig 2: Cruise Control System Wiring Diagram (3MZ-FE; 2 Of 4)
G08860930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

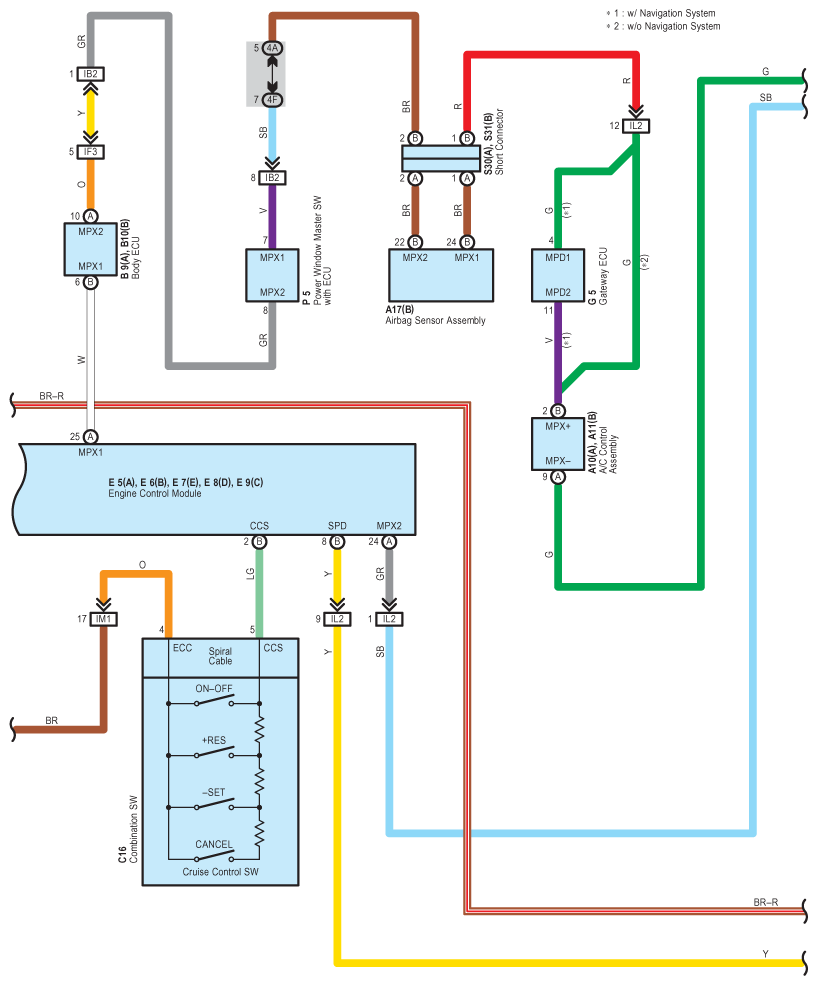

Fig 3: Cruise Control System Wiring Diagram (3MZ-FE; 3 Of 4)
G08860931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

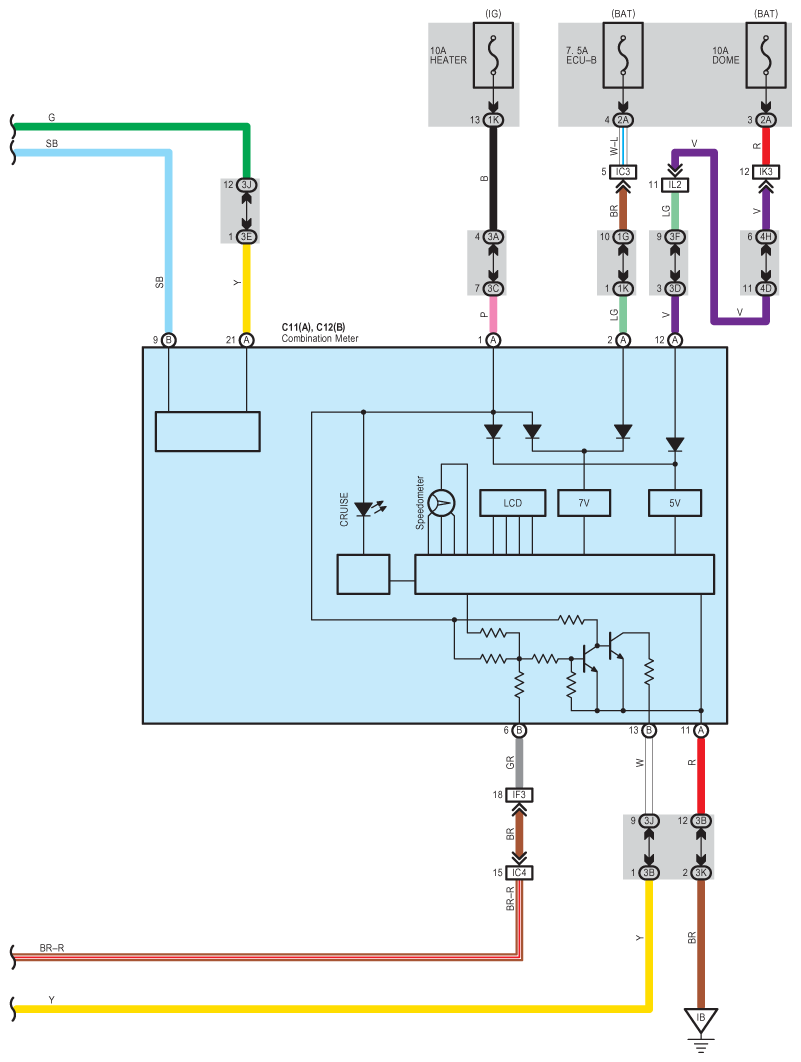

Fig 4: Cruise Control System Wiring Diagram (3MZ-FE; 4 Of 4)
G08860932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
