Parts Location

WARNING: This page is about a different car, the 2007 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

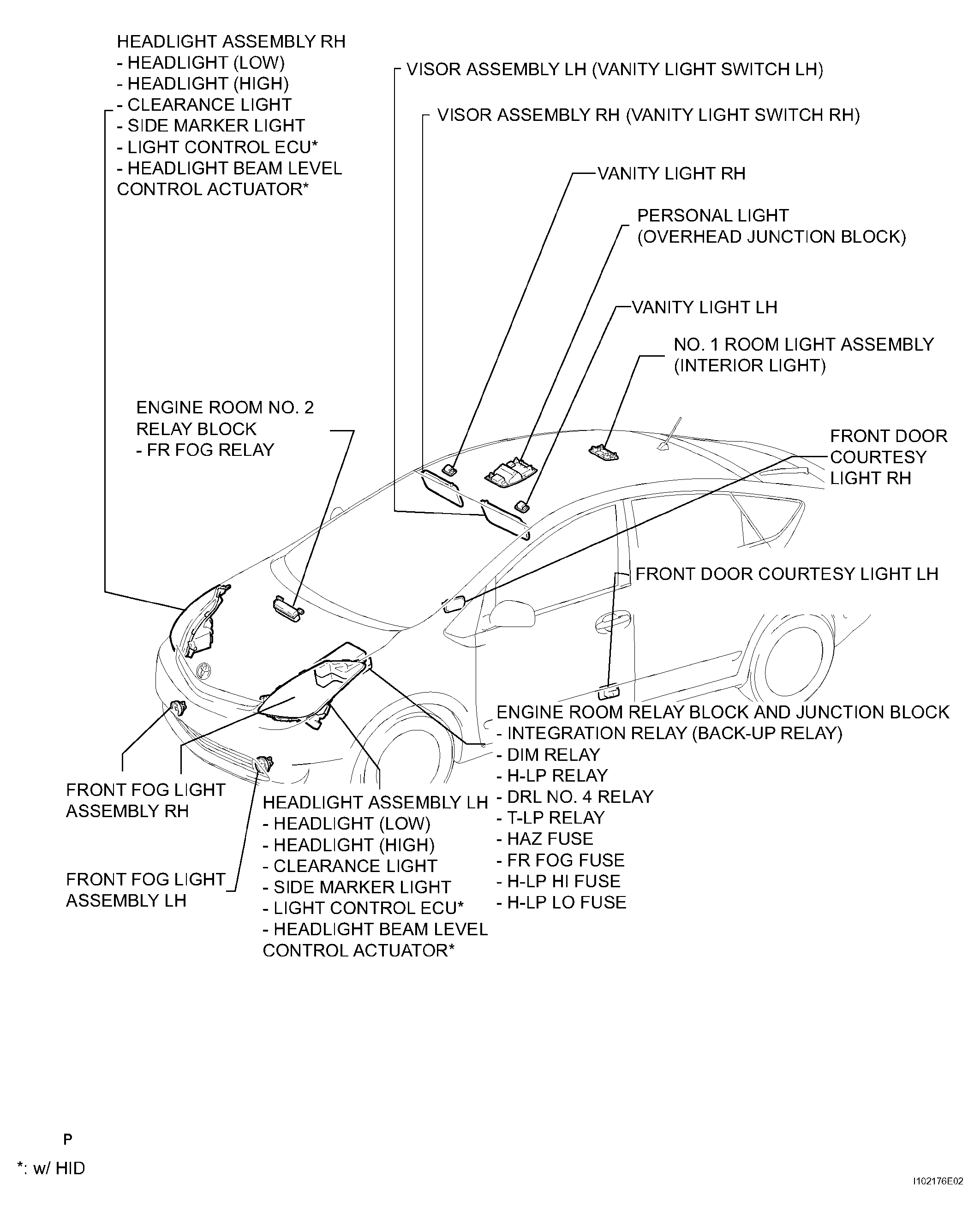

Fig 1: Locating Lighting System Components (1 Of 3)
G04475765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

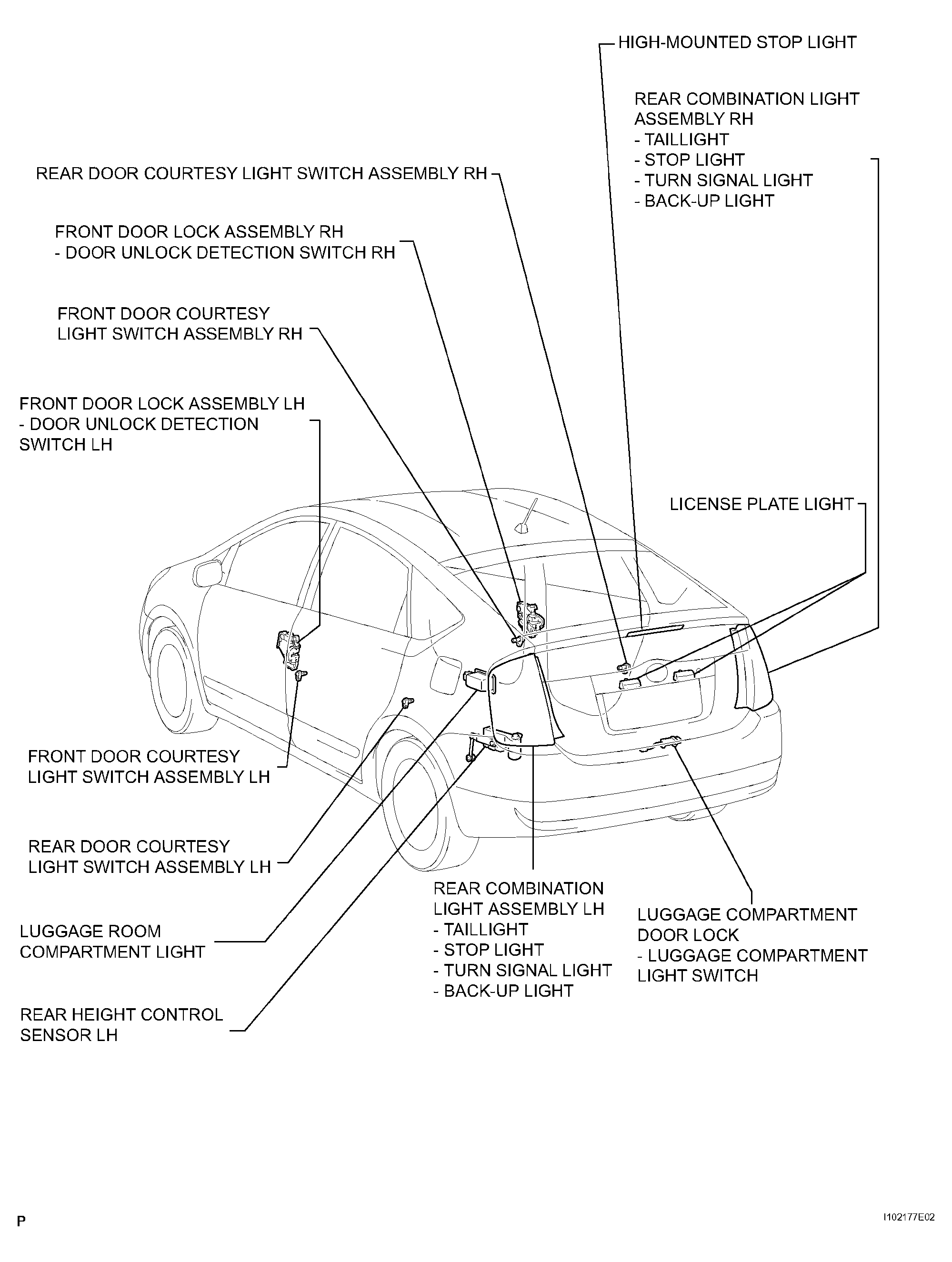

Fig 2: Locating Lighting System Parts Components (2 Of 3)
G04475766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

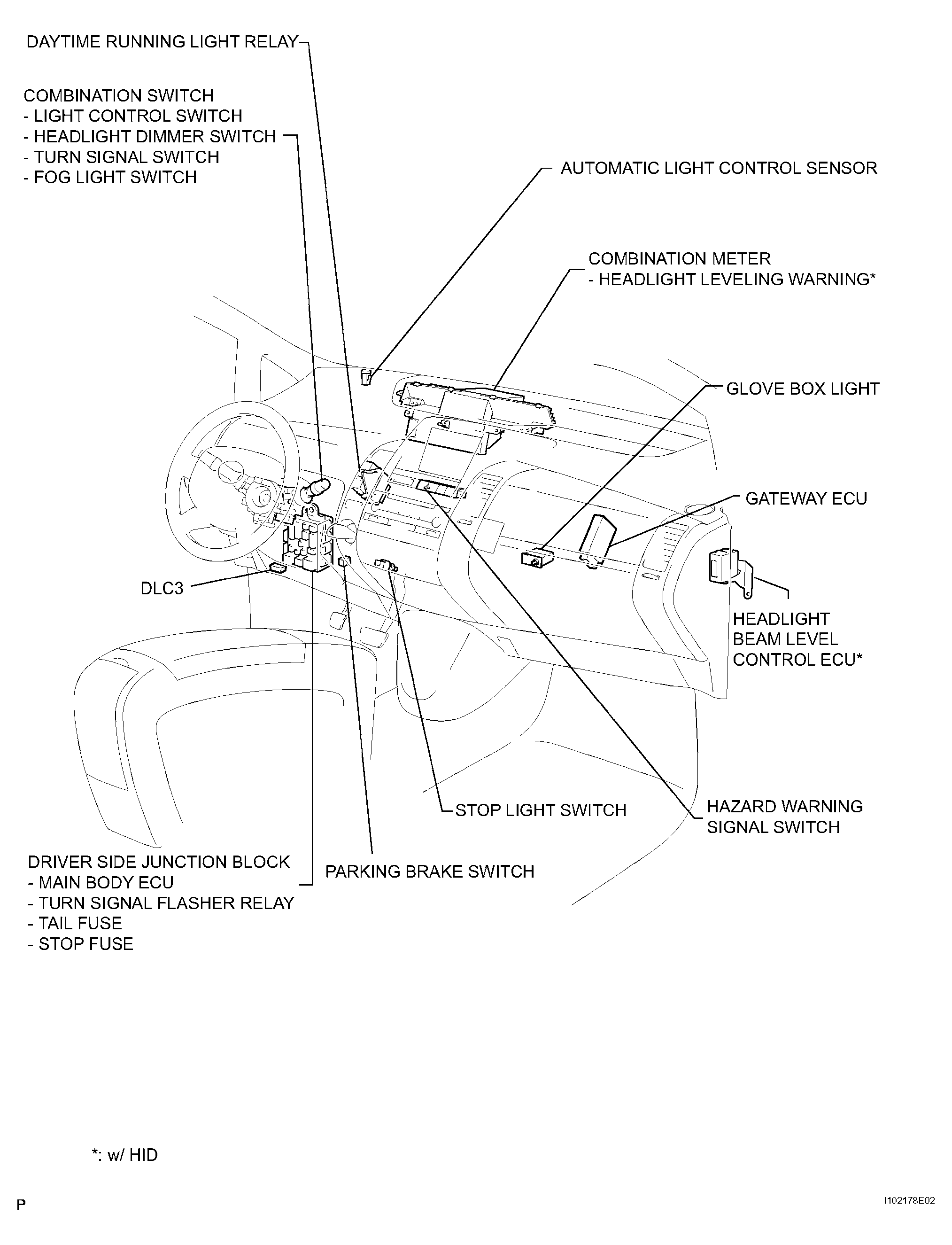

Fig 3: Locating Lighting System Parts Components (3 Of 3)
G04475767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
