High Mounted Stop Light Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY (See  DISASSEMBLY  )
  3. REMOVE CENTER STOP LIGHT ASSEMBLY
    1. Disconnect the connector.
    2. Tie a string around the center stop light assembly cord.

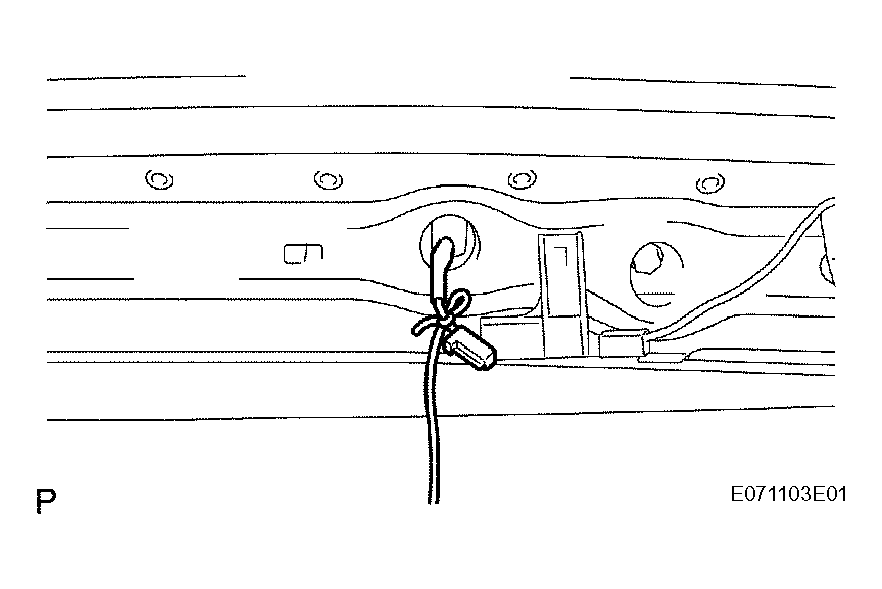

      Fig 1: Tying String Around Center Stop Light Assembly Cord
      G04475878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 screws and the center stop light assembly.
      NOTE: The string will be used when installing, so leave the string as it is inside the back door.

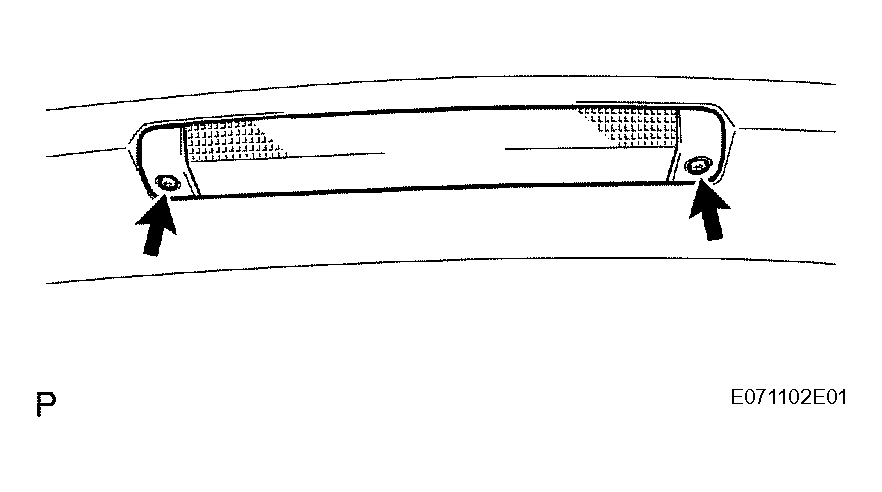

      Fig 2: Removing Center Stop Light Assembly
      G04475879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
