CAN Bus Line: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

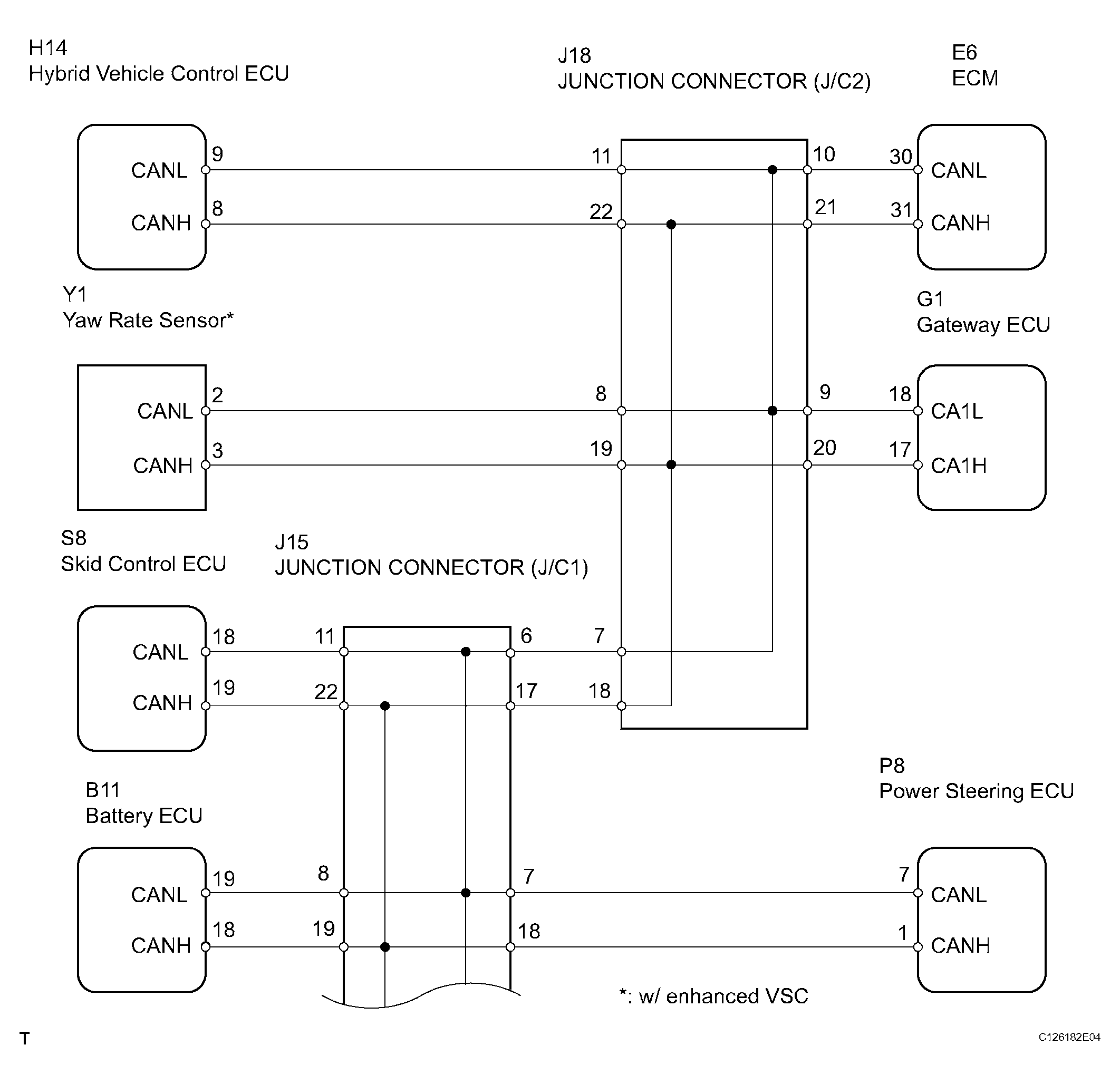

Fig 1: CAN Bus Line - Wiring Diagram (1 Of 2)
G04477375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

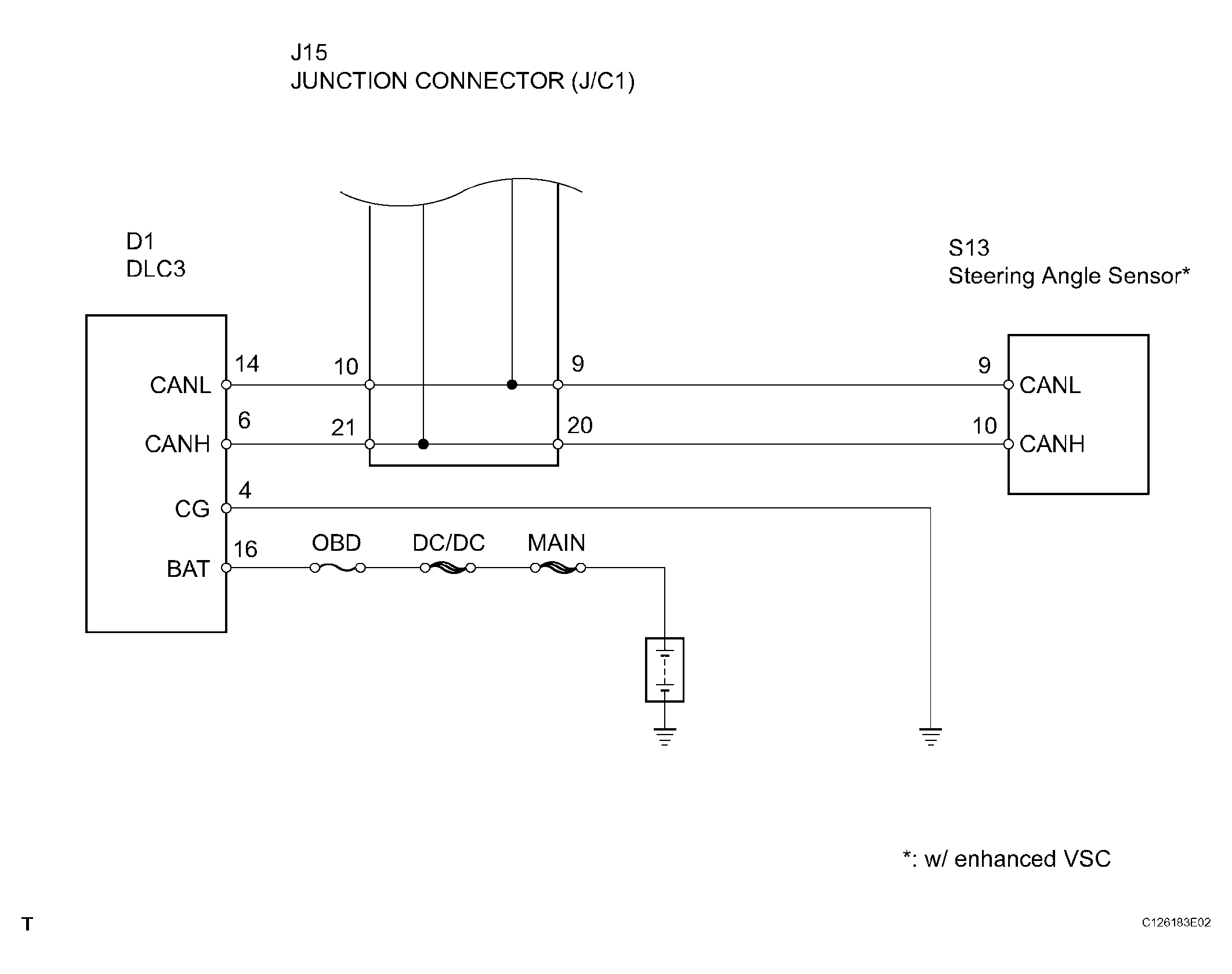

Fig 2: CAN Bus Line - Wiring Diagram (2 Of 2)
G04477376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
