Wiper Switch: Installation

WARNING: This page is about a different car, the 2007 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL WIPER AND WASHER SWITCH
    1. Attach the claw to install the wiper switch.
    2. Connect the connector.
  2. INSTALL STEERING COLUMN COVER (See  INSTALLATION  )
  3. INSTALL TILT LEVER BRACKET (See  INSTALLATION  )

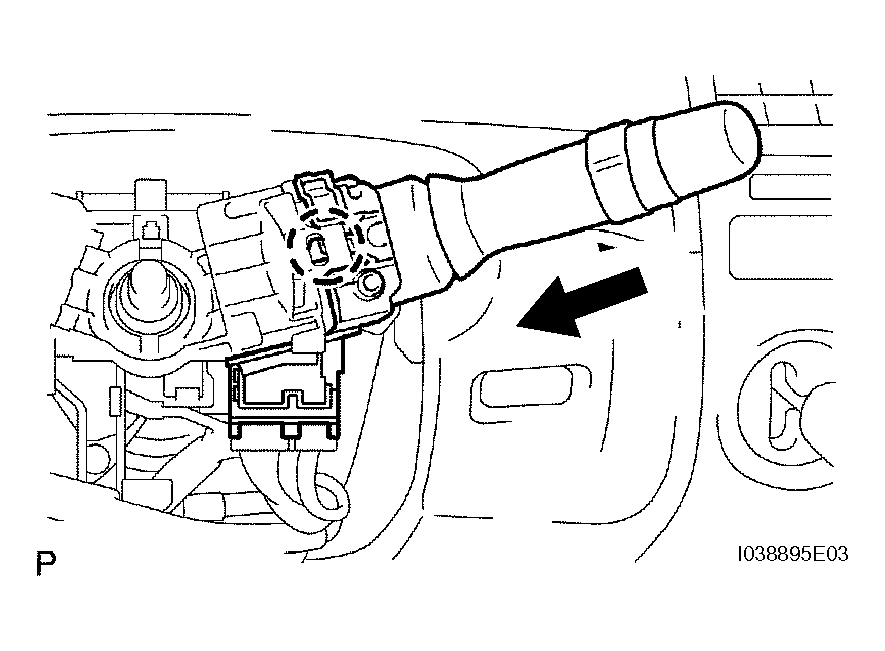

    Fig 1: Installing Wiper And Washer Switch
    G04475972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL SPIRAL CABLE SUB-ASSEMBLY (See  INSTALLATION  )
  5. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )
  6. INSTALL NO. 2 STEERING WHEEL COVER LOWER
  7. REMOVE NO. 3 STEERING WHEEL COVER LOWER
  8. INSTALL STEERING PAD ASSEMBLY (See  INSTALLATION  )
  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  10. INSPECT STEERING PAD ASSEMBLY (See  ON-VEHICLE INSPECTION  )
  11. CHECK SRS WARNING LIGHT (See  ON-VEHICLE INSPECTION  )
  12. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
