Knock Sensor: Components

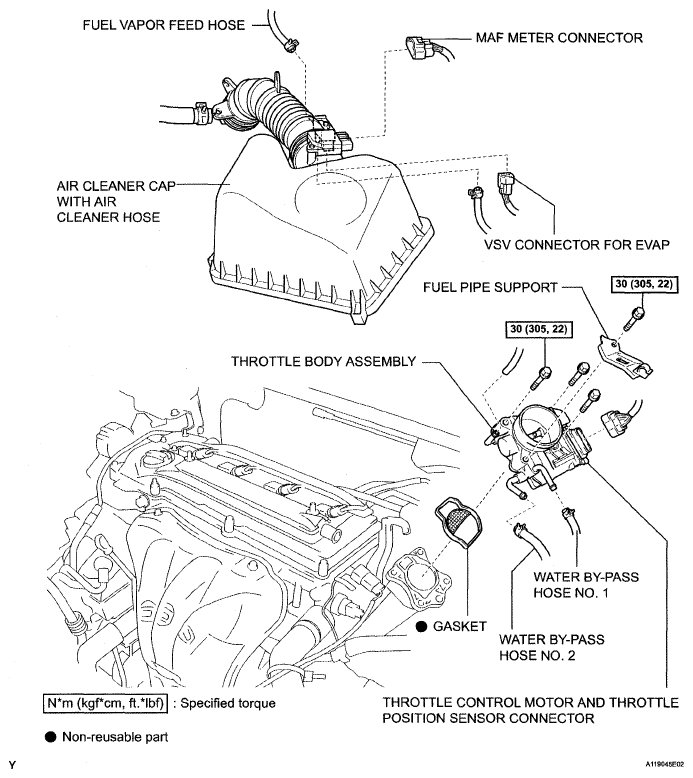

Fig 1: Knock Sensor Replacement Components With Torque Specifications (1 Of 3)
G05245514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

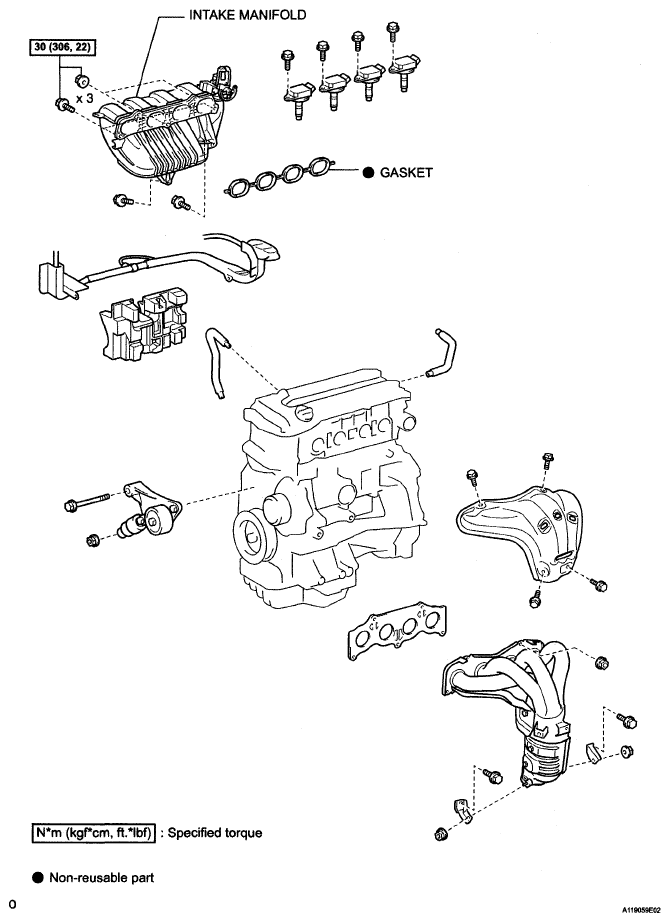

Fig 2: Knock Sensor Replacement Components With Torque Specifications (2 Of 3)
G05245515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

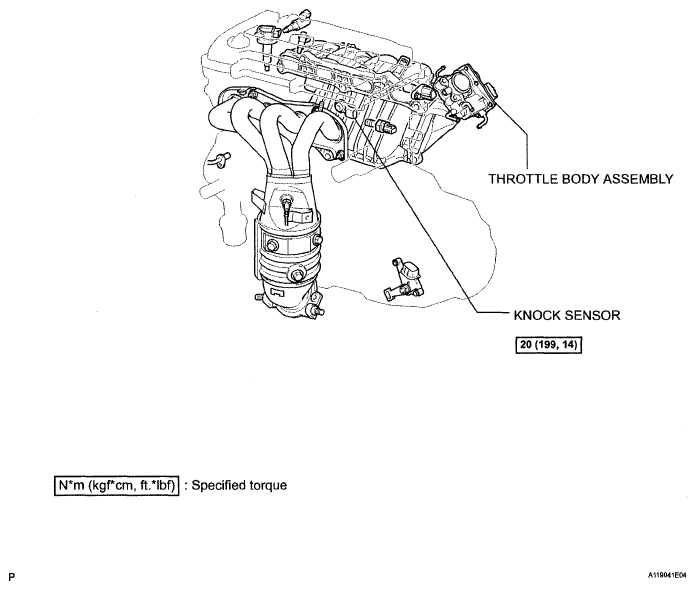

Fig 3: Knock Sensor Replacement Components With Torque Specifications (3 Of 3)
G05245516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
