Seat Heater: Notes

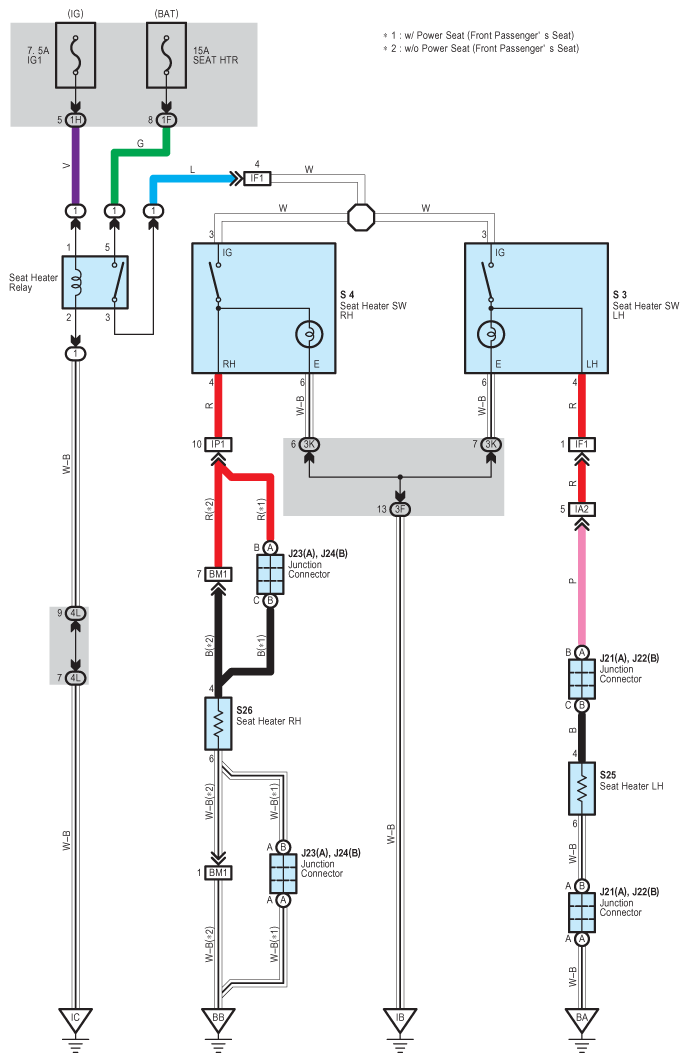

Fig 1: Seat Heater System Wiring Diagram
G08860973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
