Headlight with Daytime Running Light: Notes

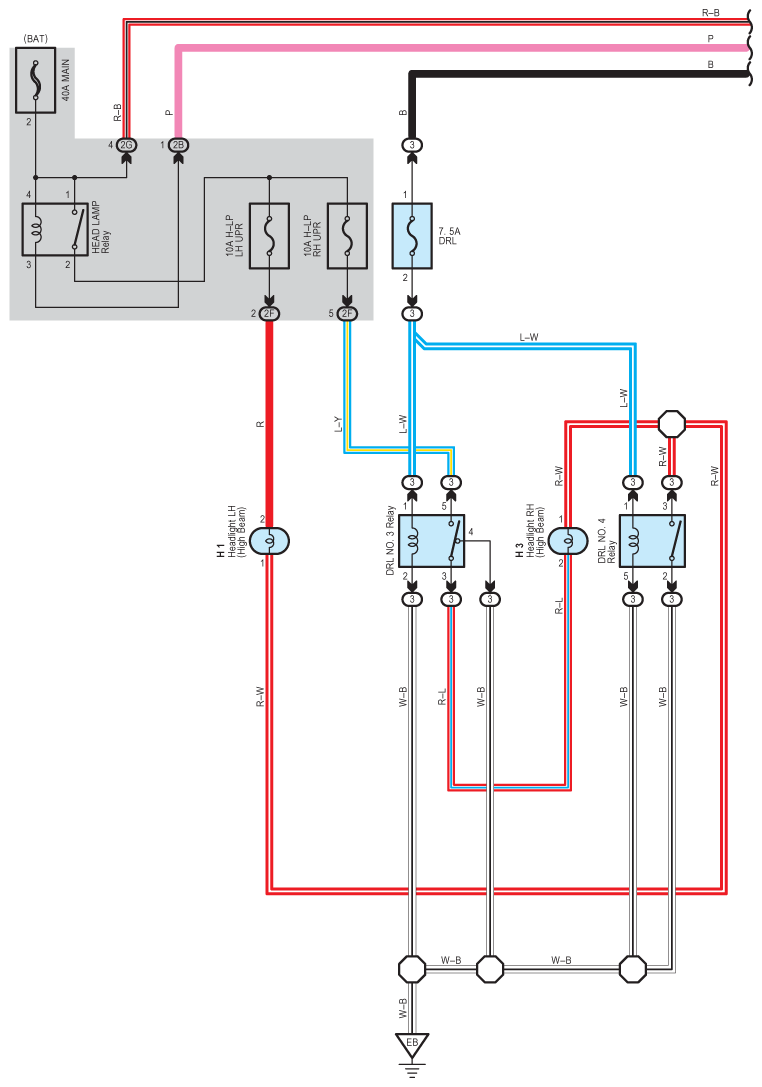

Fig 1: Headlight With Daytime Running Light System Wiring Diagram (1 Of 2)
G08860903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

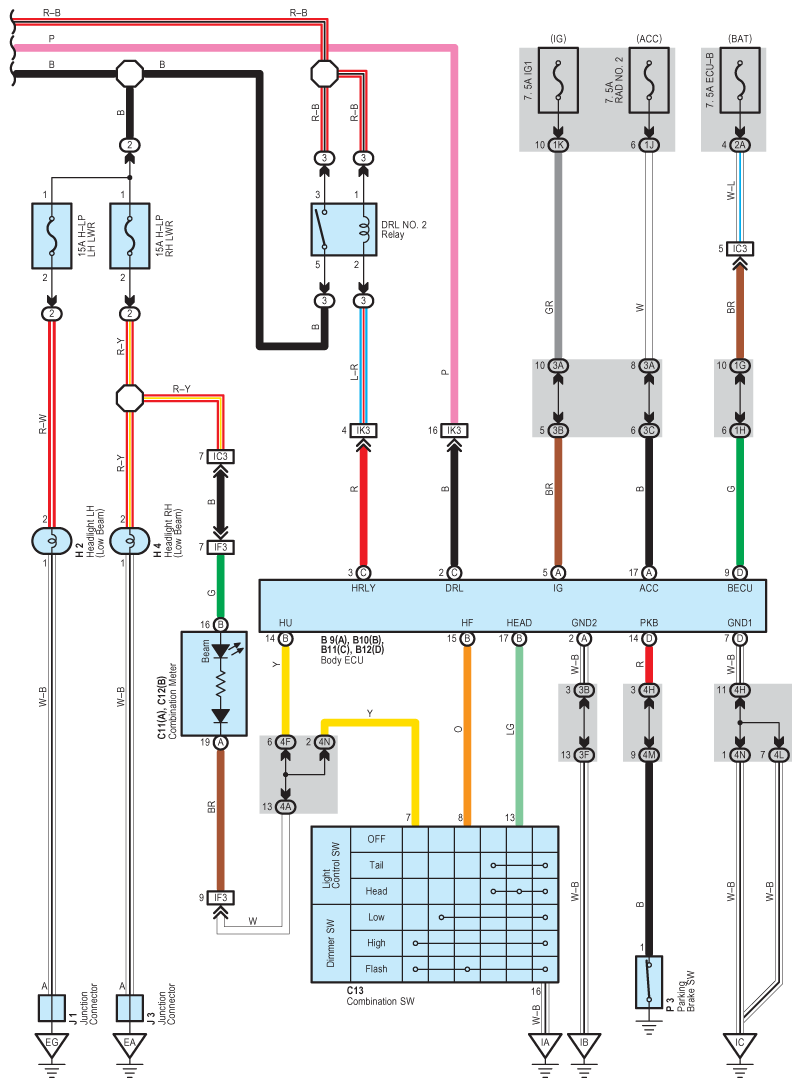

Fig 2: Headlight With Daytime Running Light System Wiring Diagram (2 Of 2)
G08860904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
