Audio System with 6 Speaker: Notes

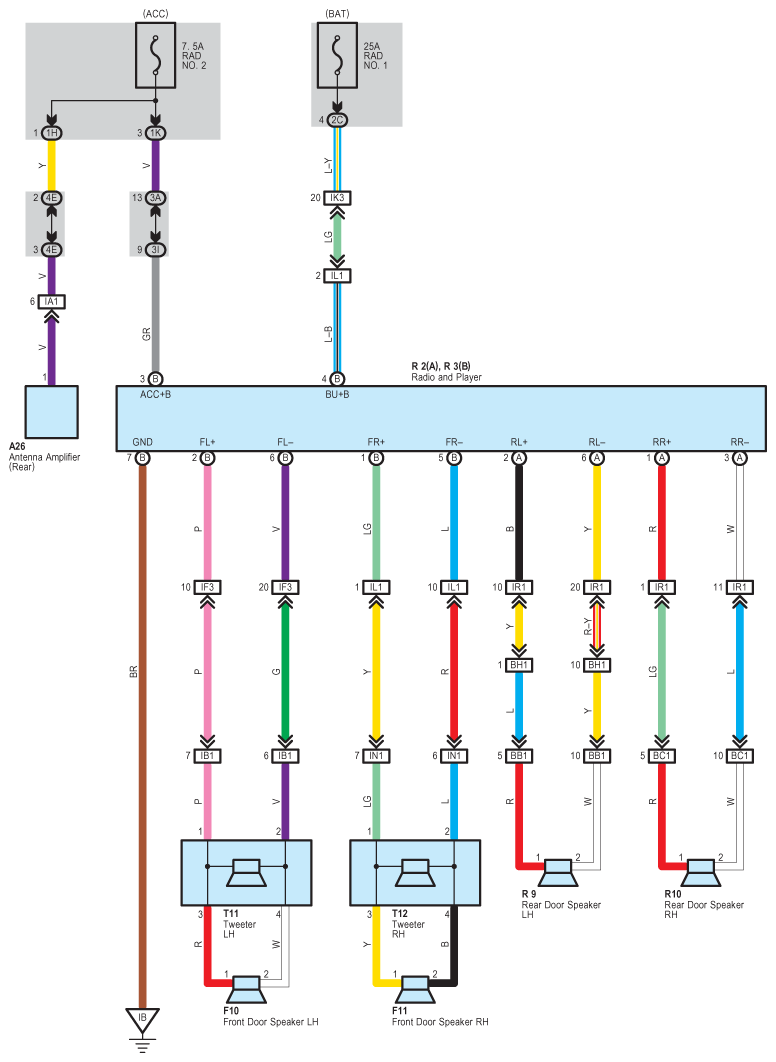

Fig 1: Audio System (With 6 Speaker) Wiring Diagram
G08860987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
