Parts Location

WARNING: This page is about a different variant/trim than selected.

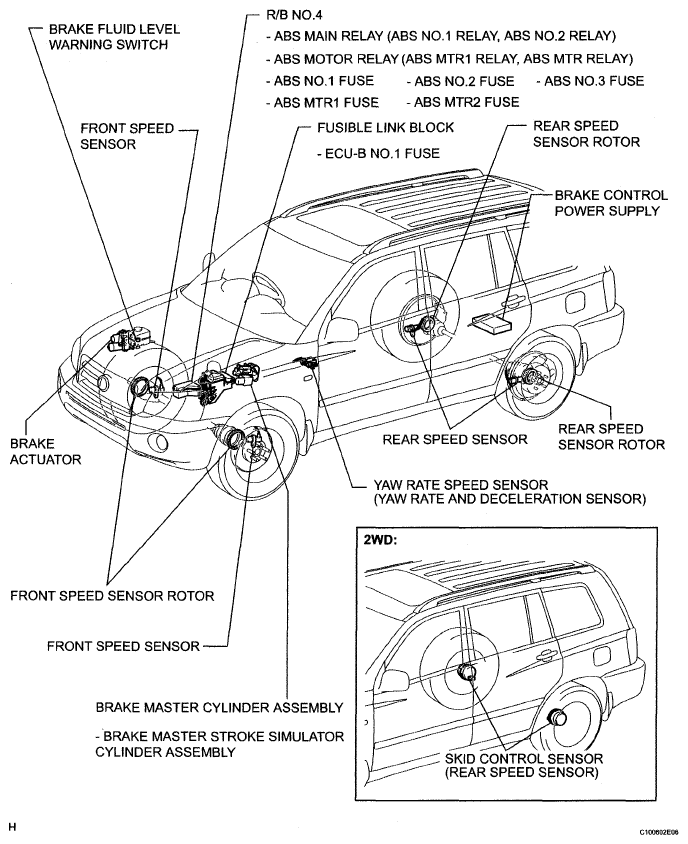

Fig 1: Identifying Electronically Controlled Brake System Parts Location (1 Of 2)
G05202621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

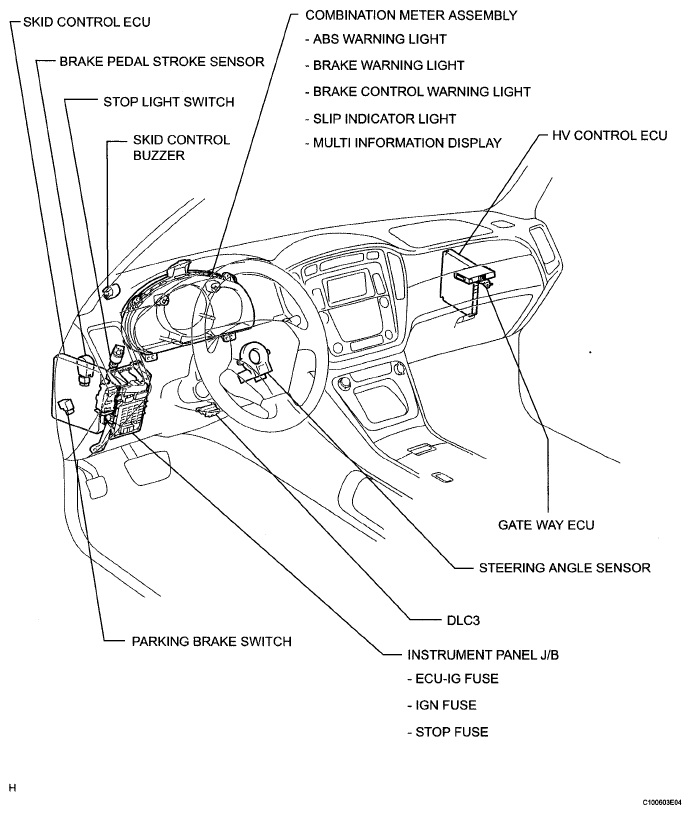

Fig 2: Identifying Electronically Controlled Brake System Parts Location (2 Of 2)
G05202622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
