Inspection Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration (See INITIALIZATION  ).
  1. CHECK STOP LIGHT SWITCH OPERATION
    1. Check that the stop light comes on when the brake pedal is depressed and turns off when the brake pedal is released.

      OK

      ILLUMINATION CONDITION CHART

      Condition Illumination Condition
      Brake pedal depressed ON
      Brake pedal released OFF

      HINT:

      Check the stop light bulb as it may have burnt out.

    NG: REPAIR STOP LIGHT CIRCUIT

    OK: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (BETWEEN SKID CONTROL ECU AND STOP LIGHT SWITCH)
    1. Disconnect the stop light switch connector and skid control ECU connector.

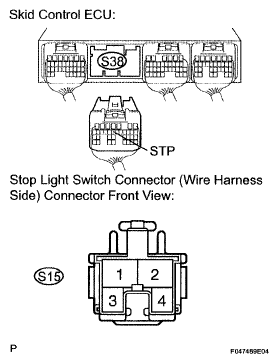

      Fig 1: Checking Harness And Connector (Between Skid Control ECU And Stop Light Switch)
      G05202720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      S38-14 (STP) - S15-1 Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  3. INSPECT SKID CONTROL ECU (GND TERMINAL)
    1. Connect the skid control ECU connector.
      Fig 2: Inspecting Skid Control ECU (GND Terminal)
      G05202721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      S37-1 (GND1) - Body ground Below 1 Ω
      S38-2 (GND2) - Body ground Below 1 Ω
      S38-1 (GND3) - Body ground Below 1 Ω
      S39-2 (GND4) - Body ground Below 1 Ω
      S39-1 (GND5) - Body ground Below 1 Ω
      S40-4 (GND6) - Body ground Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  4. INSPECT STOP LIGHT SWITCH ASSEMBLY
    1. Disconnect the stop light switch assembly connector.
      Fig 3: Inspecting Stop Light Switch Assembly
      G05202722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      1-2 Switch pin free Below 1 Ω
      1-2 Switch pin pushed in 10 kΩ or higher

    NG: REPLACE STOP LIGHT SWITCH ASSEMBLY

    OK: Go to Next Step

  5. RECONFIRM DTC
    1. Clear the DTC (See DTC CHECK / CLEAR  ).
    2. Turn the ignition switch on.
    3. Depress the brake pedal several times to test the stop light circuit.
    4. Check that the same DTC is recorded (See DTC CHECK / CLEAR  ).

      HINT:

      Reinstall the sensors, connectors, etc. and store the previous vehicle conditions before rechecking for DTCs.

      Result

      RESULT CHART

      Condition Proceed To
      DTC is not output A
      DTC is output B

    B: REPLACE SKID CONTROL ECU

    A: END
