Brake Pedal Stroke Sensor: Components

WARNING: This page is about a different variant/trim than selected.

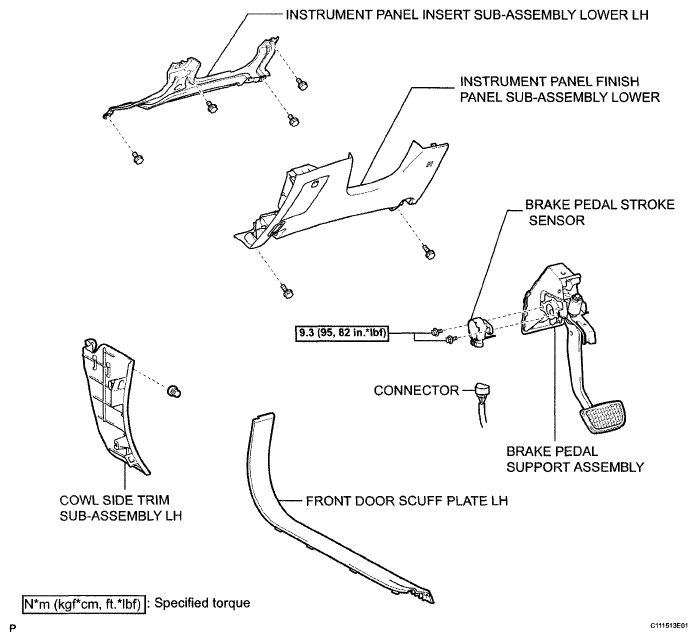

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components With Torque Specification
G05202850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
