Roof Headlining: Reassembly

INSTALL ROOF WIRE
1. Apply new double-sided tape to the roof headlining along the markings of the roof headlining.

  Fig 1: Identifying Markings Of Roof Headlining
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Apply the tape securely in place.
  - Do not touch the adhesive surface when applying the tape to prevent adhesion failure.
2. Install the roof wire.

  Fig 2: Identifying Roof Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not twist the flat wire harness when installing it.
  - Securely fix the wire harness by pressing it.
  - Securely fix the wire harness to secure gap between the wire harness and the roof panel in part A.
  - Securely fix the wire harness to avoid looseness in the wire harness between portion B and the marking tape.
INSTALL ROOF SILENCER PAD
1. Align 2 new roof silencer pads with the markings of the roof headlining and install them onto the roof headlining.

  Fig 3: Identifying New Roof Silencer Pads
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SPEAKER ASSEMBLY
HINT:

Use the same procedure for both sides.
1. Install the roof speaker by turning it.

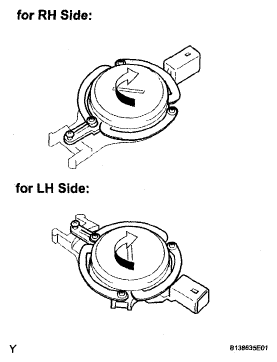

  Fig 4: Identifying Roof Speaker
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the screw.
3. Connect the speaker connector.

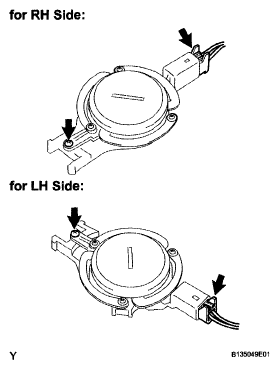

  Fig 5: Identifying Speaker Connector & Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
