Rear Speaker: Components

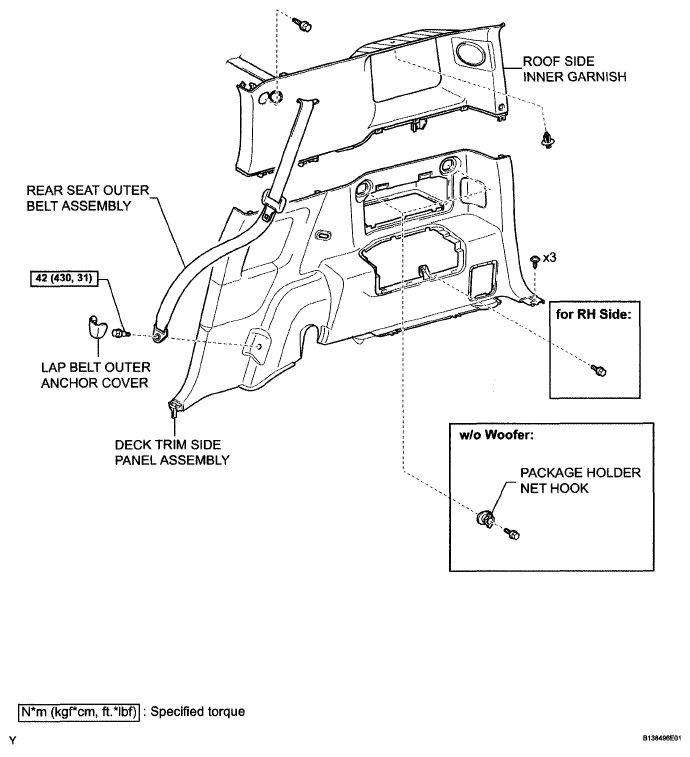

Fig 1: Rear Speaker Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

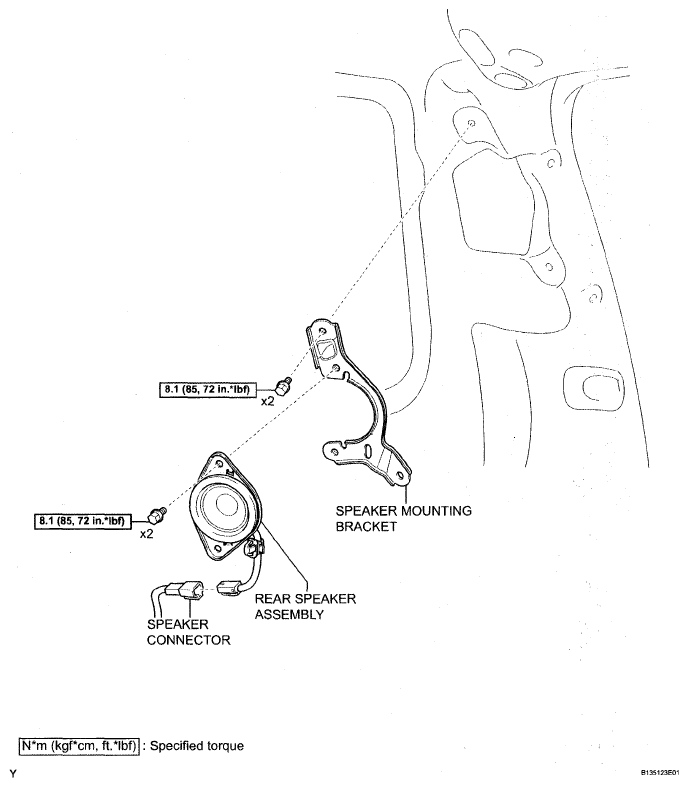

Fig 2: Identifying Rear Speaker Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Rear Speaker Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Rear Speaker Replacement Components With Torque Specifications (4 Of 6)

Fig 5: Rear Speaker Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Rear Speaker Replacement Components With Torque Specifications (6 Of 6)
