Radio Receiver Power Source Circuit: Wiring Diagram

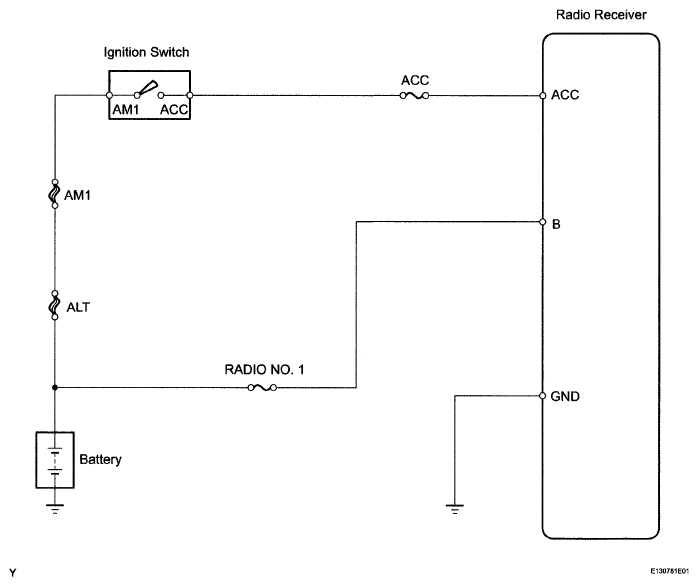

Fig 1: Identifying Radio Receiver Wiring Diagram

G05114068

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
