Parts Location

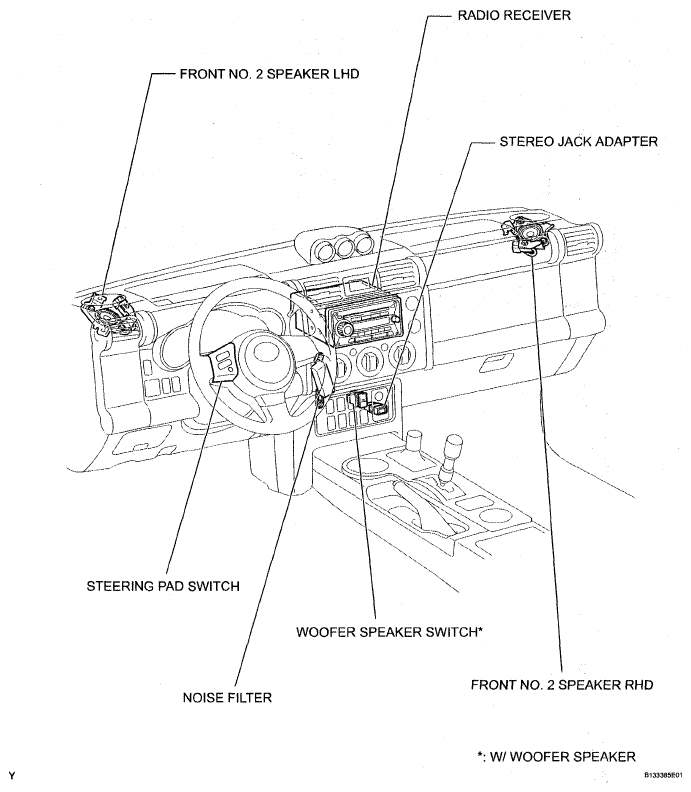

Fig 1: Identifying Audio & Visual System Components (1 Of 2)
G05114029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

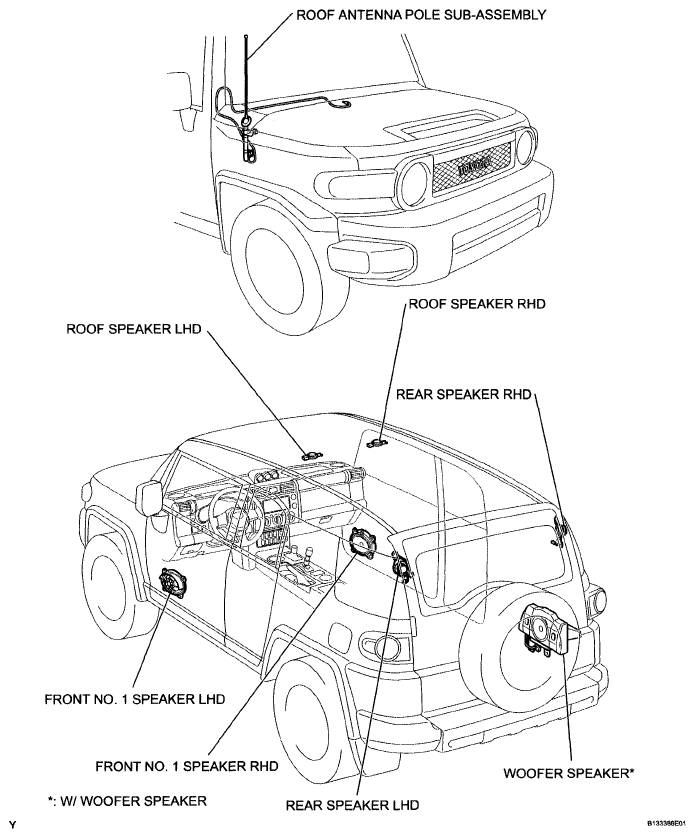

Fig 2: Identifying Audio & Visual System Components (2 Of 2)
G05114030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
