Front Upper Suspension Arm: Components

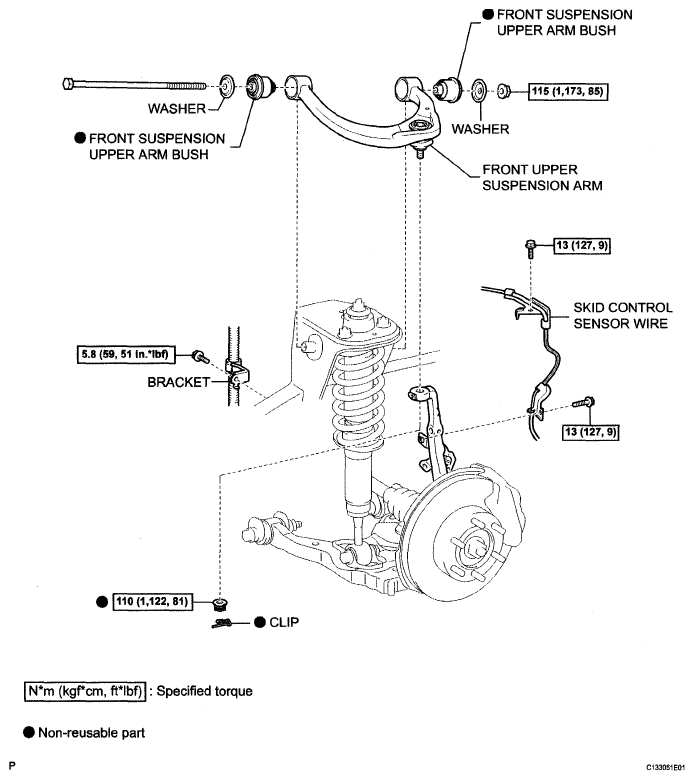

Fig 1: Front Upper Suspension Arm Replacement Components With Torque Specifications

G05112111

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
