System Diagram

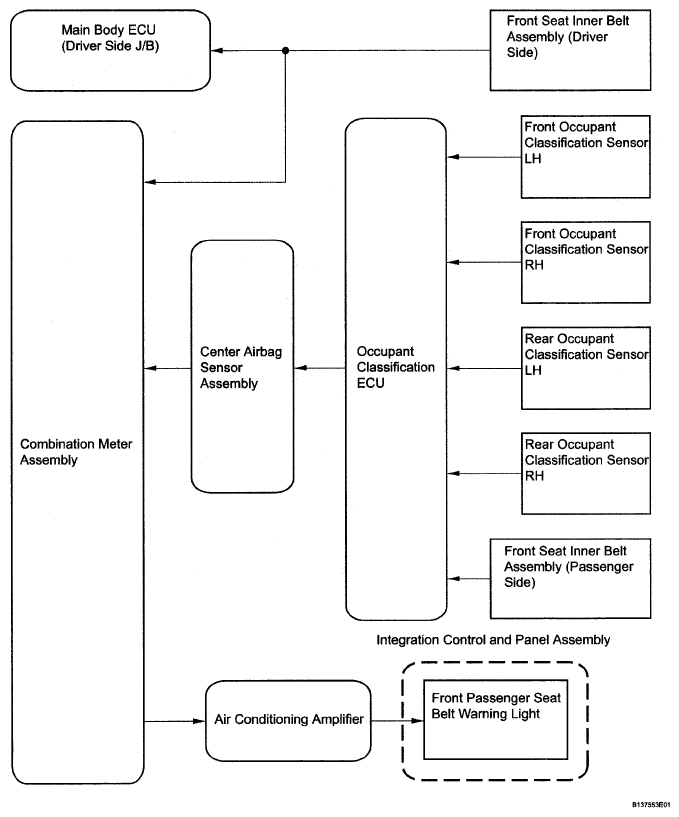

Fig 1: Identifying Seat Belt Warning System Diagram
G05113359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION REFERENCE

Sender Receiver Signal Line
Center airbag sensor assembly Combination meter assembly Front seat inner belt switch signal (passenger side) CAN communication line
