DTC P0100, P0102, P0103: Mass or Volume Air Flow Circuit; Mass or Volume Air Flow Circuit Low Input; Mass or Volume Air Flow Circuit High Input: Wiring Diagram

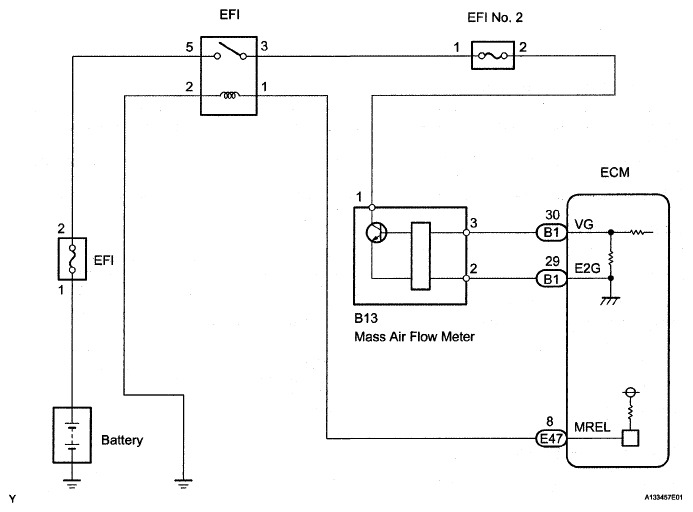

Fig 1: Identifying Mass Or Volume Air Flow Wiring Diagram
G05108621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
