System Diagram

  1. COMBINATION METER ASSEMBLY

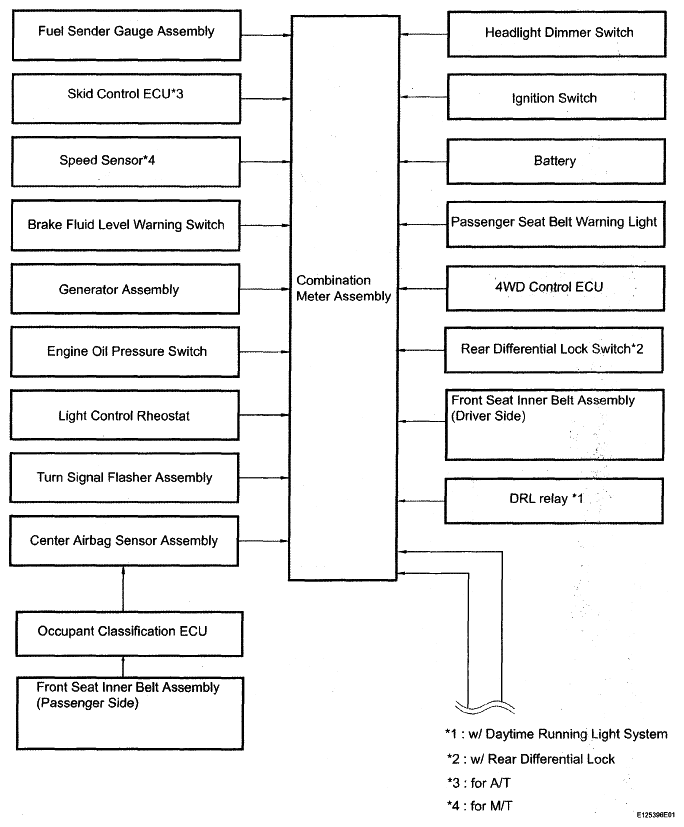

    Fig 1: Identifying Combination Meter Assembly System Diagram (1 Of 2)
    G05113947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

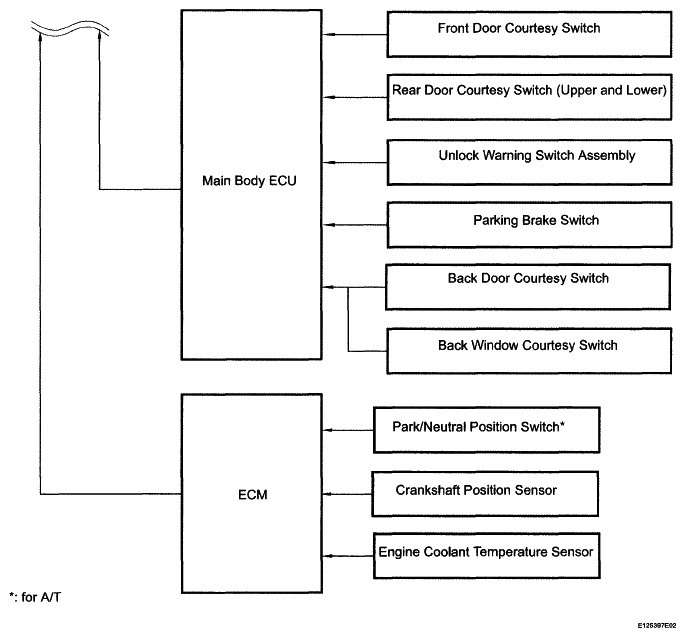

    Fig 2: Identifying Combination Meter Assembly System Diagram (2 Of 2)
    G05113948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ACCESSORY METER ASSEMBLY

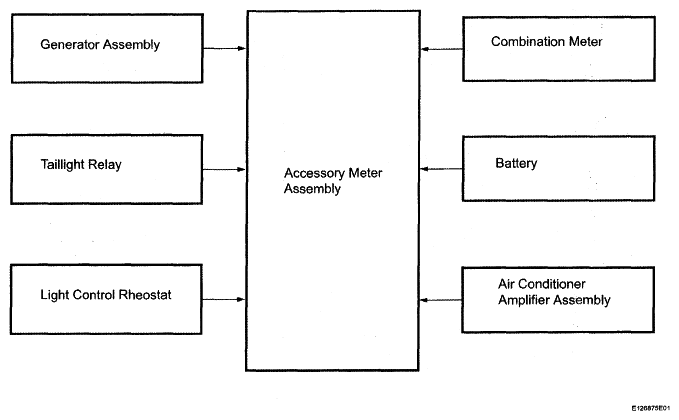

    Fig 3: Identifying Accessory Meter Assembly System Diagram
    G05113949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
