Taillight and Illumination: Notes

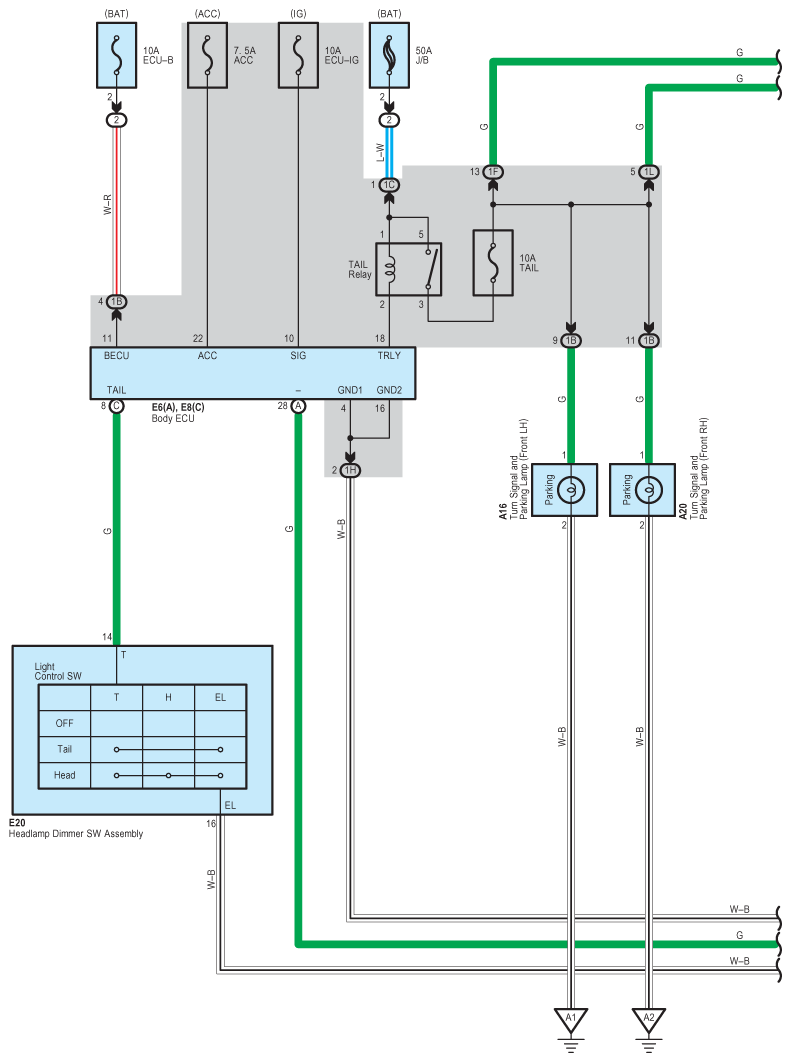

Fig 1: Taillight And Illumination System Wiring Diagram (1 Of 4)
G08781834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

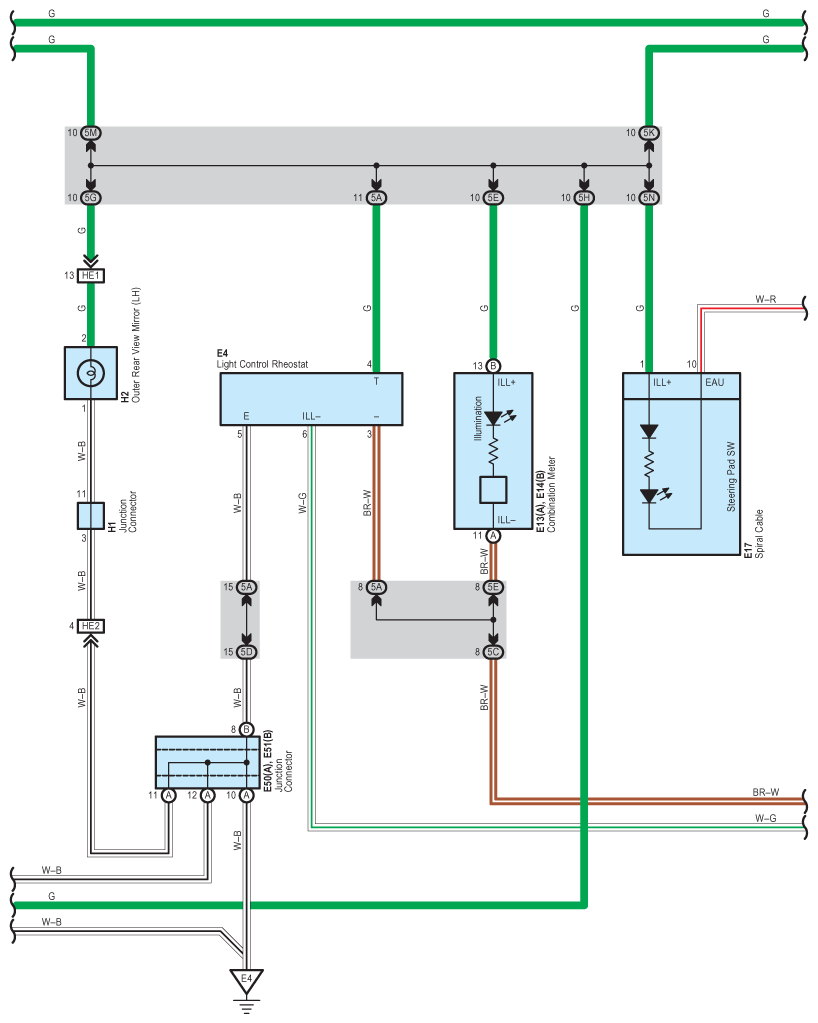

Fig 2: Taillight And Illumination System Wiring Diagram (2 Of 4)
G08781835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

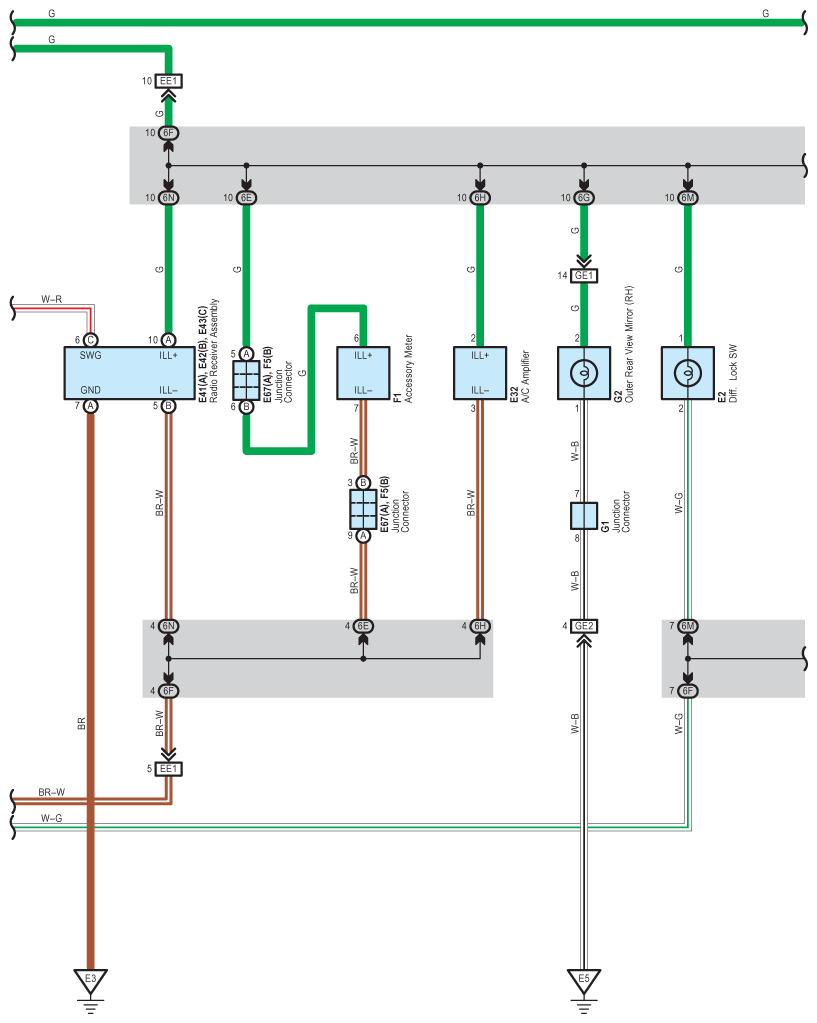

Fig 3: Taillight And Illumination System Wiring Diagram (3 Of 4)
G08781836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

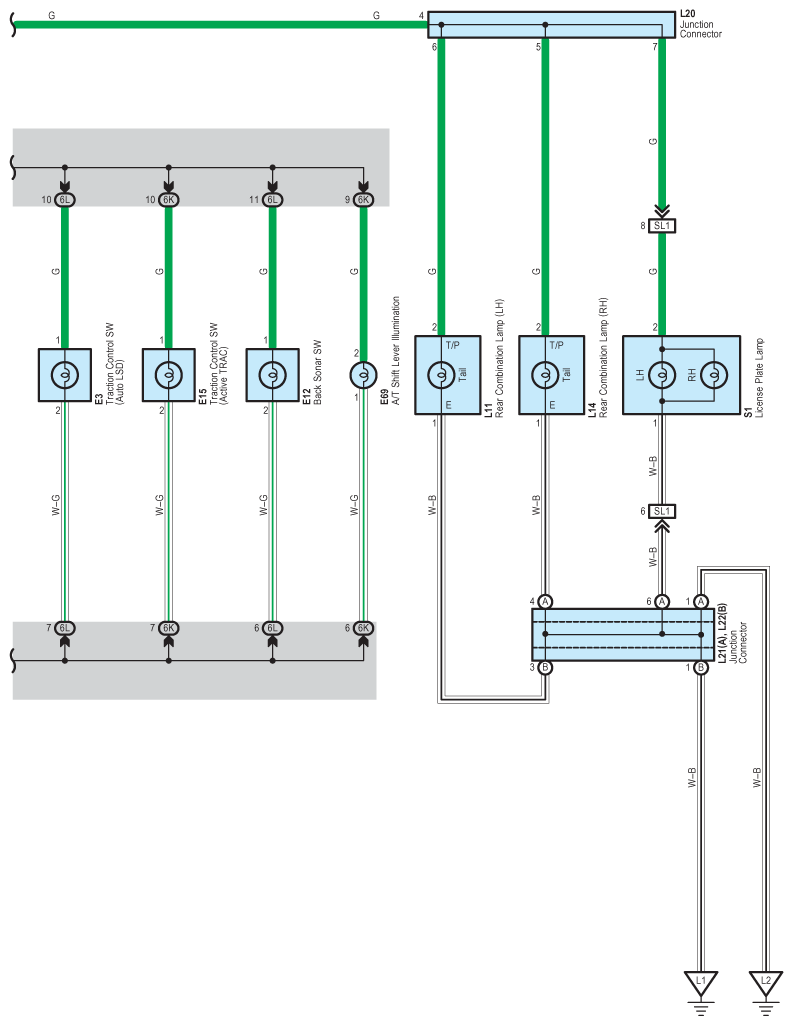

Fig 4: Taillight And Illumination System Wiring Diagram (4 Of 4)
G08781837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
