Power Outlet for 115V: Notes

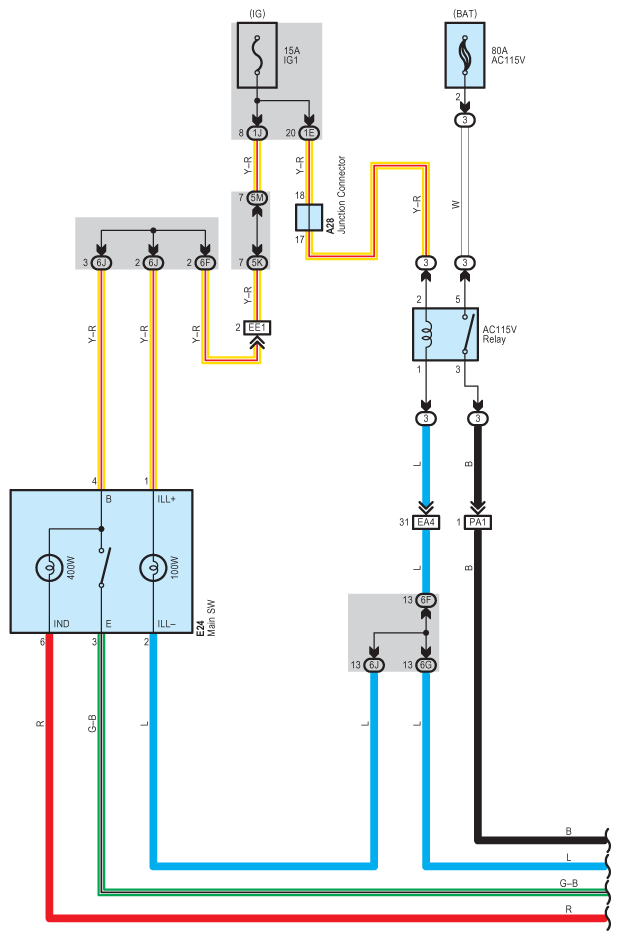

Fig 1: Power Outlet (For 115V) System Wiring Diagram (1 Of 3)
G08781898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

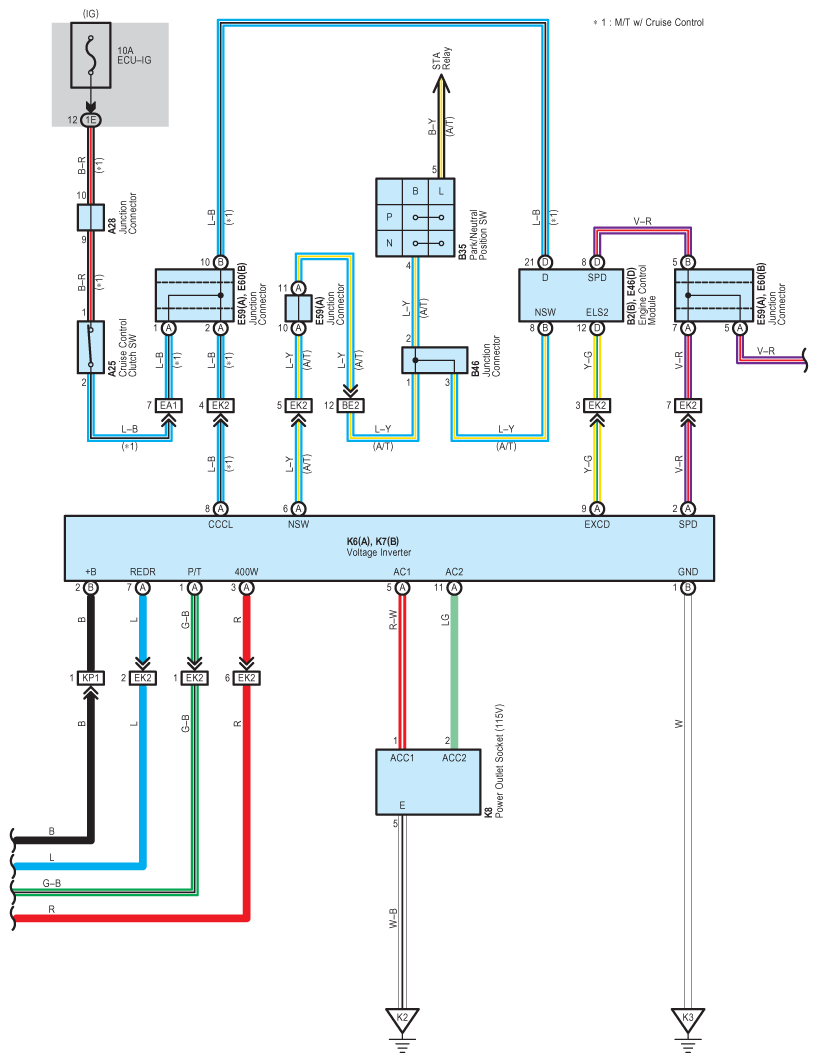

Fig 2: Power Outlet (For 115V) System Wiring Diagram (2 Of 3)
G08781899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

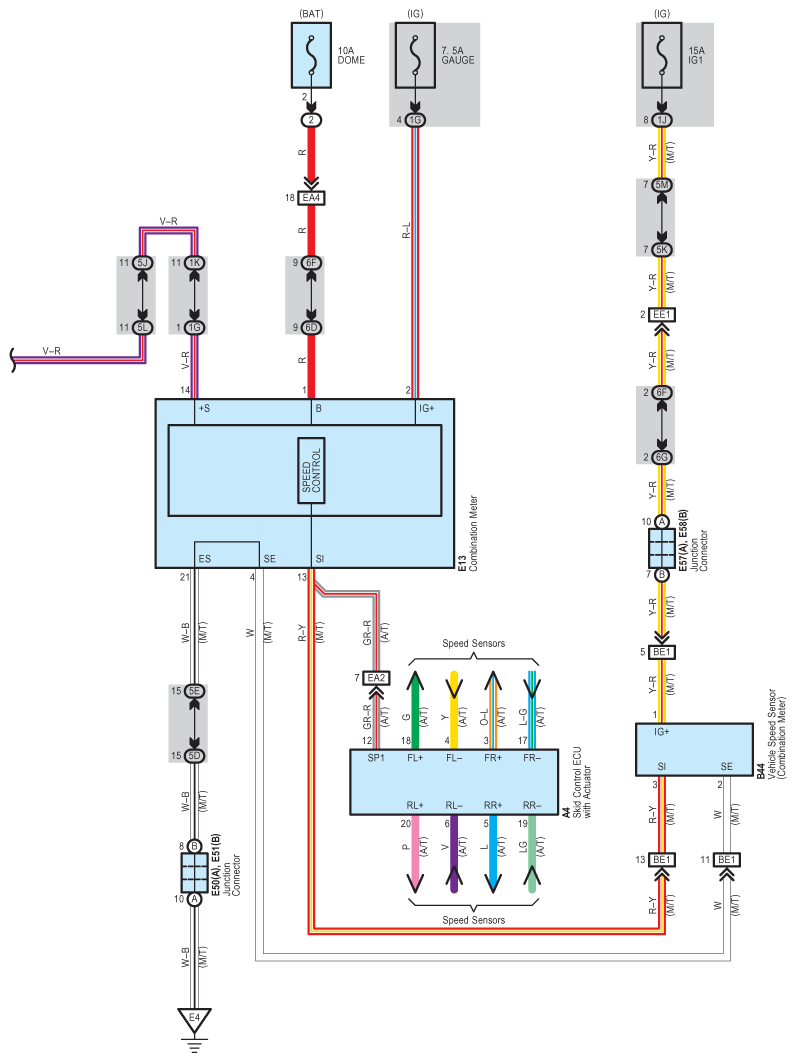

Fig 3: Power Outlet (For 115V) System Wiring Diagram (3 Of 3)
G08781900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
