Ground Point: Notes — 2007 Toyota FJ Cruiser 4WD, Part Time Service Manual ~ LEMON Manuals

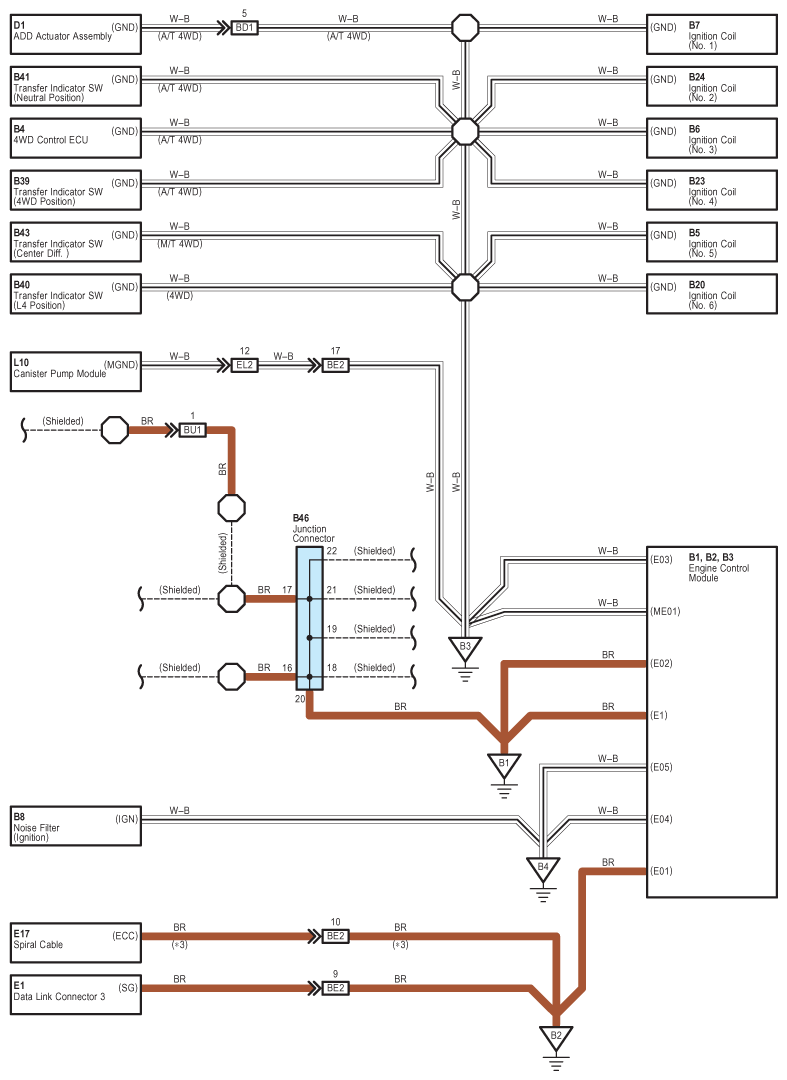

Fig 1: Ground Point System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

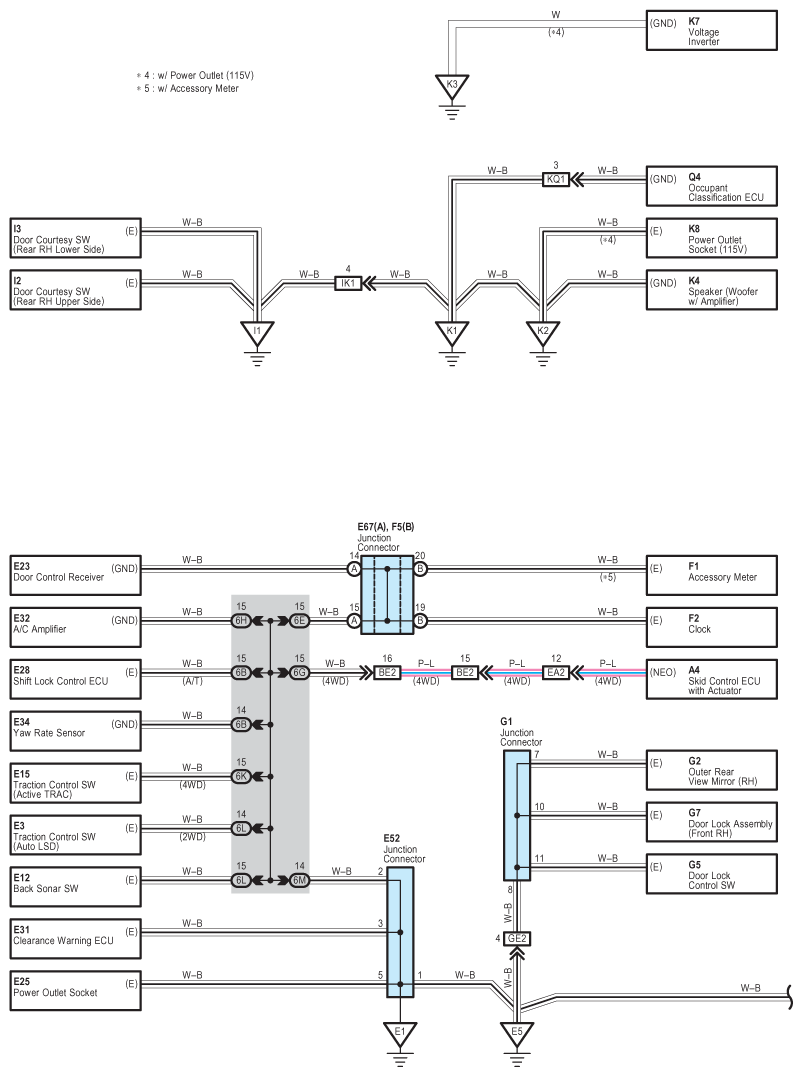

Fig 2: Ground Point System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

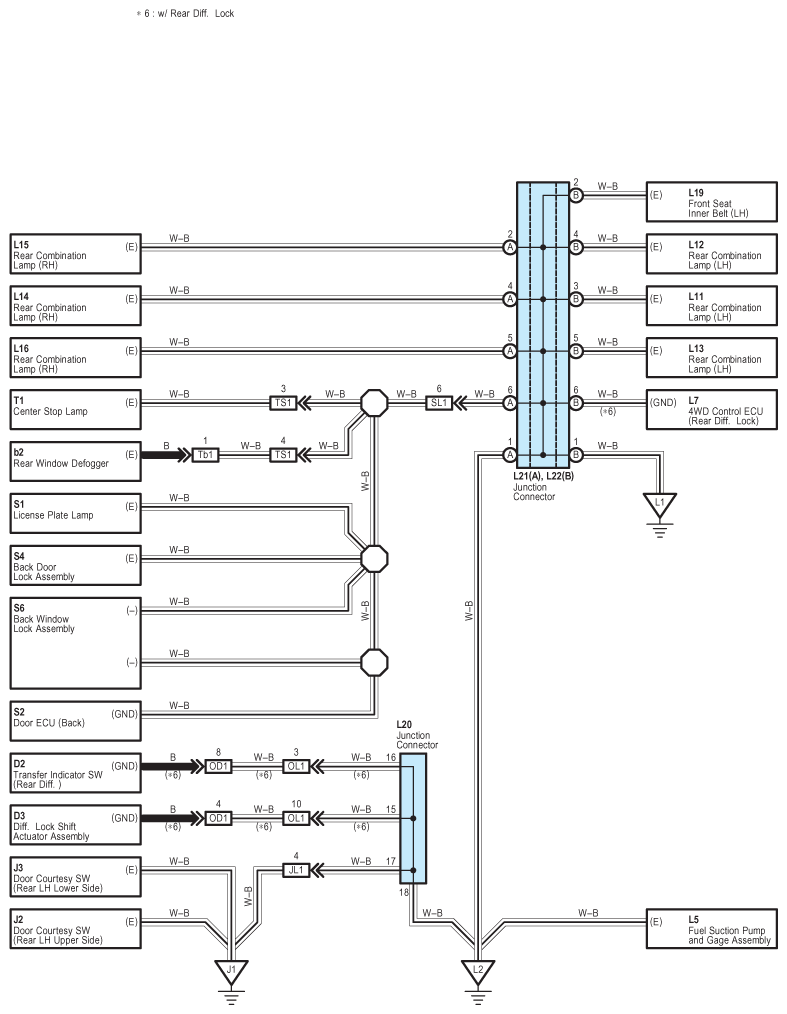

Fig 3: Ground Point System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

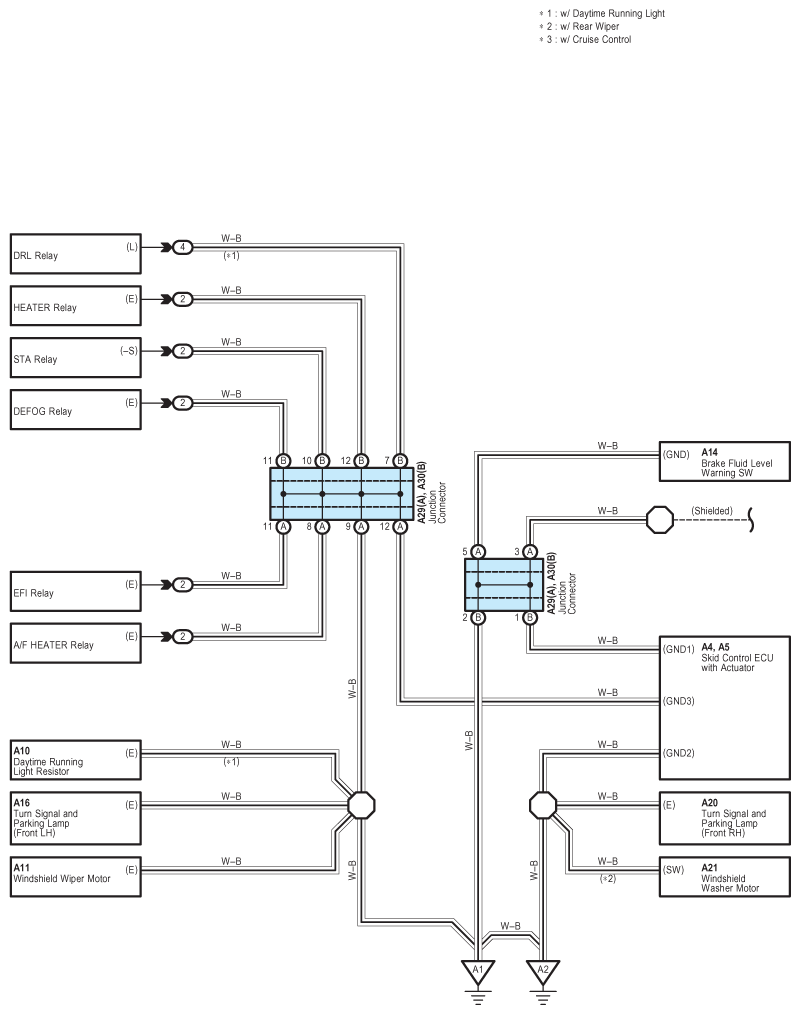

Fig 4: Ground Point System Wiring Diagram (4 Of 5)

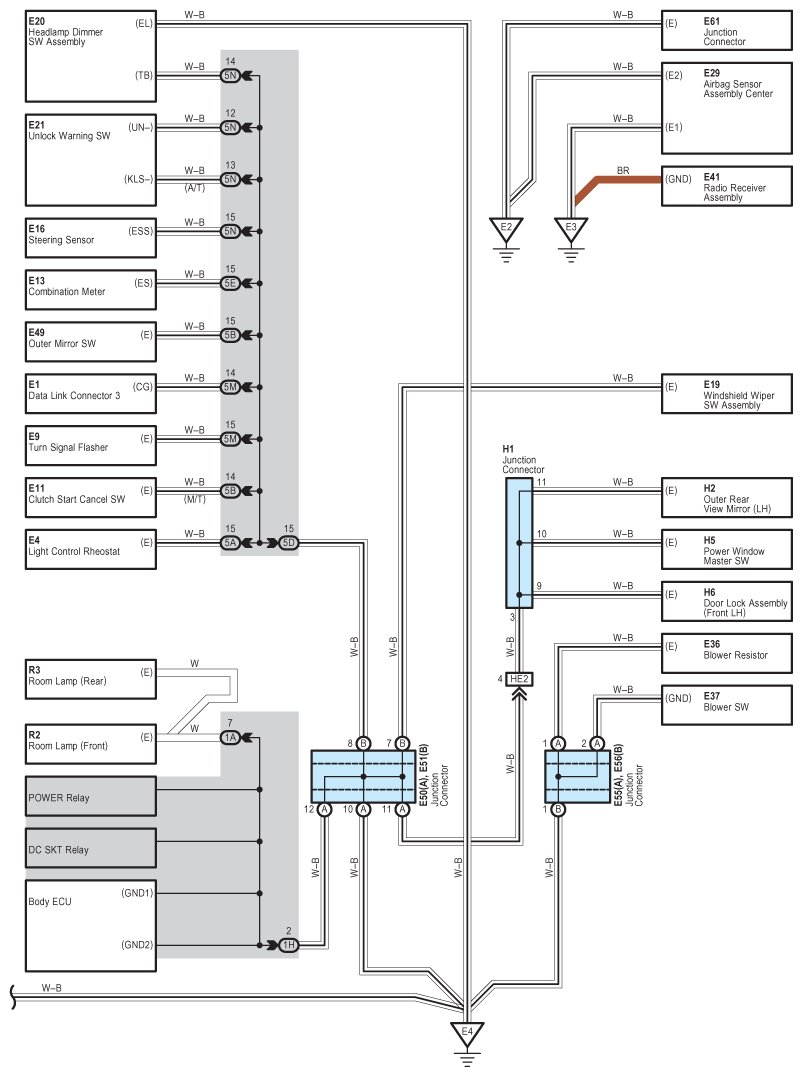

Fig 5: Ground Point System Wiring Diagram (5 Of 5)
