Rear Side Window Glass: Removal

HINT:

• Use the same procedure for both the RH and LH sides.
• The procedure described below is for the LH side.

1. REMOVE ACCESS PANEL REAR WEATHERSTRIP

   HINT:

   Use the same procedure as for the RH side (See DISASSEMBLY ).

2. REMOVE LAP BELT OUTER ANCHOR COVER

   HINT:

   Use the same procedure as for the RH side (See DISASSEMBLY ).

3. REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY

   HINT:

   Use the same procedure as for the RH side (See DISASSEMBLY ).

4. REMOVE NO. 1 CUP HOLDER

   HINT:

   Use the same procedure as for the RH side (see DISASSEMBLY ).

5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

   HINT:

   Use the same procedure as for the RH side (See DISASSEMBLY ).

6. REMOVE CENTER PILLAR UPPER GARNISH

   HINT:

   Use the same procedure as for the RH side (See DISASSEMBLY ).

7. REMOVE REAR DOOR OPENING TRIM

   HINT:

   Use the same procedure as for the RH side (see DISASSEMBLY ).

8. REMOVE ACCESS DOOR GLASS OUTER WEATHERSTRIP

   HINT:

   Use the same procedure as for the RH side (see REMOVAL ).

9. REMOVE REAR DOOR GLASS
   1. Apply protective tape to the outer circumference of the rear door glass.
   2. From the interior, insert piano wires between the vehicle body and rear door glass.

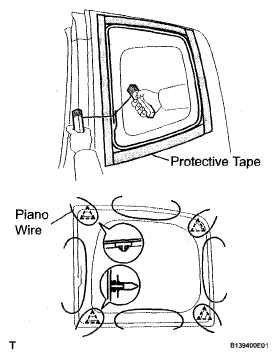

      Fig 1: Cutting Through Adhesive By Pulling Piano Wire Around Rear Door Glass

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Tie objects that can serve as handles (for example, wooden blocks) to all wire ends.
      NOTE: When separating the rear door glass from the vehicle, do not damage the vehicle's paint work or exterior/interior ornaments.
   4. Cut through the adhesive by pulling the piano wire around the rear door glass.
