Quarter Window Glass: Removal

HINT:

• Use the same procedure for both the RH and LH sides.
• The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY RH  (See REMOVAL )
3. REMOVE REAR SEATBACK ASSEMBLY RH  (See REMOVAL )
4. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY LH  (See REMOVAL )
5. REMOVE REAR SEATBACK ASSEMBLY LH  (See REMOVAL )
6. REMOVE REAR FLOOR BOARD  (See REMOVAL )
7. REMOVE REAR FLOOR MAT SUPPORT PLATE  (See REMOVAL )
8. REMOVE REAR FLOOR MAT ASSEMBLY  (See REMOVAL )
9. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY  (See REMOVAL )
10. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
11. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
12. REMOVE REAR DOOR SCUFF PLATE RH  (See REMOVAL )
13. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
14. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
15. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
16. REMOVE DECK SIDE GARNISH (w/ Woofer)  (See REMOVAL )
17. REMOVE SPEAKER MOUNTING COVER (w/ Woofer)  (See REMOVAL )
18. REMOVE BOX SPEAKER ASSEMBLY (w/ Woofer)  (See REMOVAL )
19. REMOVE PACKAGE HOLDER NET HOOK  (See REMOVAL )
20. REMOVE QUARTER TRIM POCKET TRAY (w/o Woofer)  (See REMOVAL )
21. REMOVE SIDE TRIM COVER (w/o Woofer)  (See REMOVAL )
22. REMOVE QUARTER TRIM POCKET (w/o Woofer)  (See REMOVAL )
23. REMOVE LAP BELT OUTER ANCHOR COVER  (See REMOVAL )
24. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
25. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
26. REMOVE REAR DECK TRIM COVER (w/ Power Outlet Socket)  (See REMOVAL )
27. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH  (See REMOVAL )
28. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH  (See REMOVAL )
29. REMOVE ROOF SIDE INNER GARNISH RH  (See REMOVAL )
30. REMOVE ROOF SIDE INNER GARNISH LH  (See REMOVAL )
31. REMOVE QUARTER WINDOW GLASS
    1. Apply protective tape to the outer circumference of the quarter window.
    2. From the interior, insert piano wires between the vehicle body and quarter window.

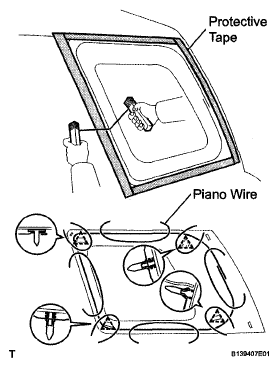

       Fig 1: Applying Protective Tape To Outer Circumference Of Quarter Window

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tie objects that can serve as handles (for example, wooden blocks) to all wire ends.
       NOTE: When separating the quarter window from the vehicle, do not damage the vehicle's paint work or exterior/interior ornaments.
    4. Cut through the adhesive by pulling the piano wire around the quarter window.
