Back Door Glass: Adjustment

INSPECT BACK DOOR GLASS

Check that the clearance measurements are within the standard ranges.

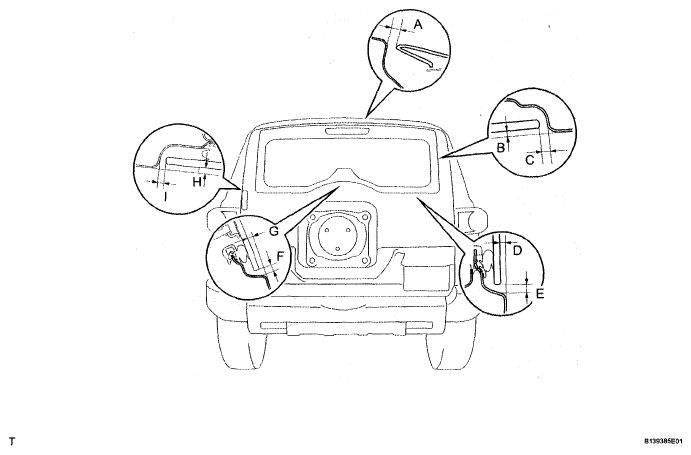

Fig 1: Identifying Back Door Glass

G05114355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard

AREA MEASUREMENT

Area	Measurement
A	8 to 11 mm (0.315 to 0.433 In.)
B	2 to 5 mm (0.079 to 0.197 in.)
C	3.5 to 6.5 mm (0.138 to 0.256 In.)
D	2 to 5 mm (0.079 to 0.197 in.)
E	4.5 to 7.5 mm (0.177 to 0.295 In.)
F	4.5 to 7.5 mm (0.177 to 0.295 in.)
G	2 to 5 mm (0.079 to 0.197 in.)
H	2 to 5 mm (0.079 to 0.197 in.)
I	3.5 to 6.5 mm (0.138 to 0.256 in.)

ADJUST BACK DOOR GLASS
1. Adjust the glass position.
  1. Loosen the glass side hinge nuts and adjust the glass position.
  2. Tighten the glass side hinge nuts after the adjustment.
    Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    Fig 2: Adjusting Back Door Glass
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
