Only Wireless Control Function is Inoperative: Wiring Diagram

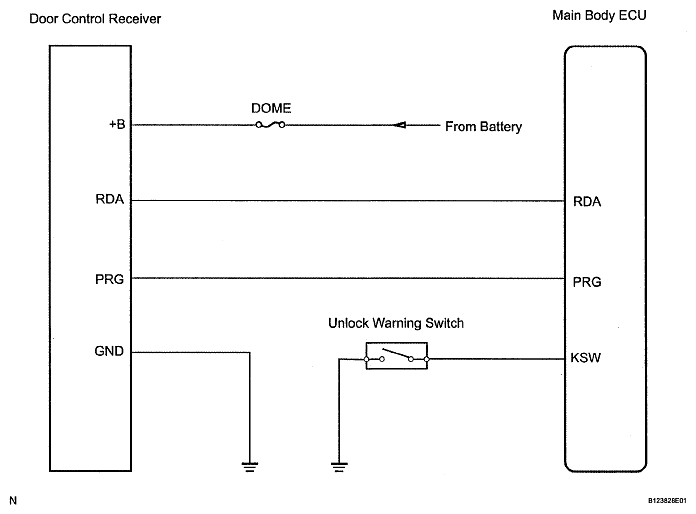

Fig 1: Identifying Door Control Receiver Wiring Diagram

G04833202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
