All Doors Cannot Be Locked/Unlocked Simultaneously: Wiring Diagram

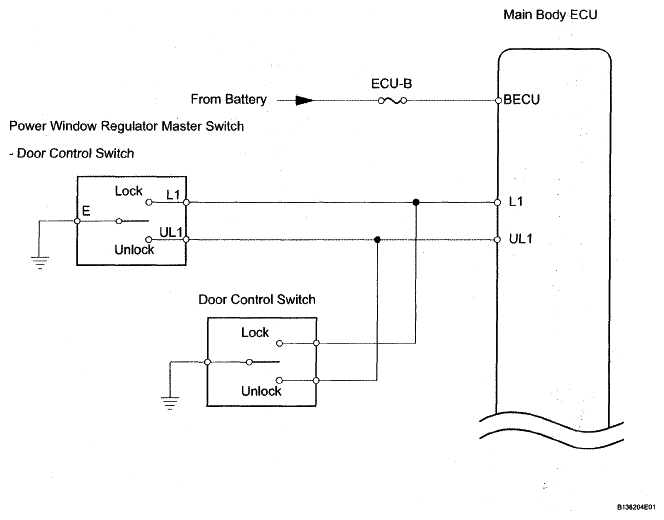

Fig 1: Identifying Door Control Switch Wiring Diagram (1 Of 2)
G05113812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

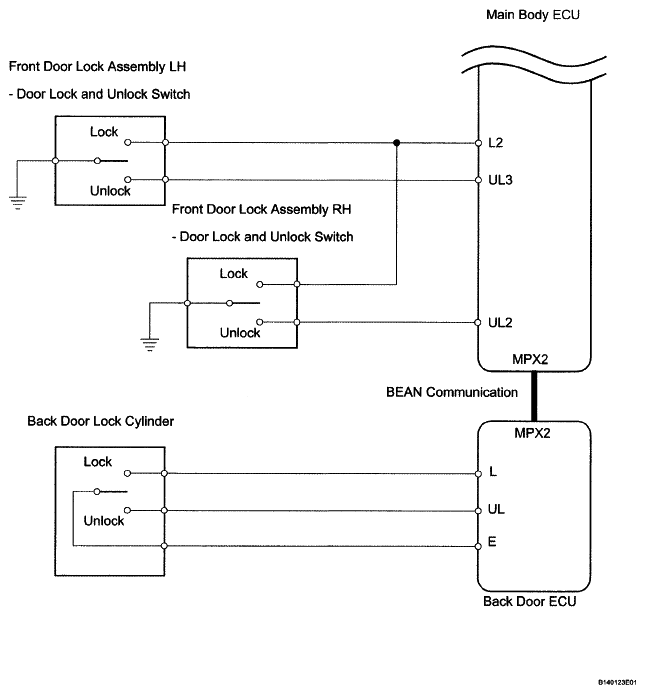

Fig 2: Identifying Door Control Switch Wiring Diagram (2 Of 2)
G05113813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
