Front Door Lock: Components

Fig 1: Front Door Lock Replacement Components (1 Of 3) With Torque Specifications
G05114306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Door Lock Replacement Components (2 Of 3) With Torque Specifications
G05114307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

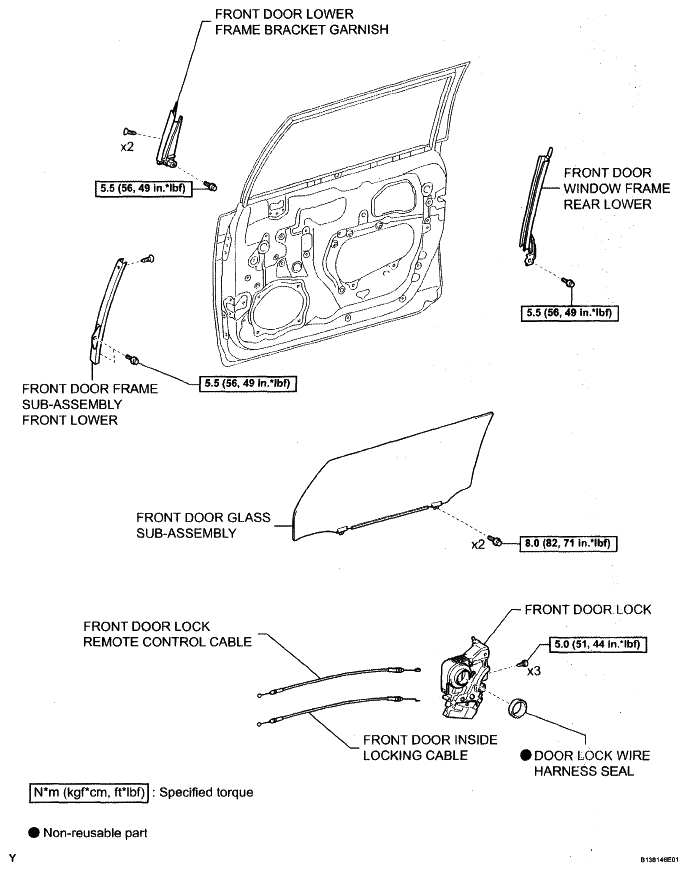

Fig 3: Front Door Lock Replacement Components (3 Of 3) With Torque Specifications
G05113907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
