Steering Angle Sensor Communication Stop Mode: Wiring Diagram

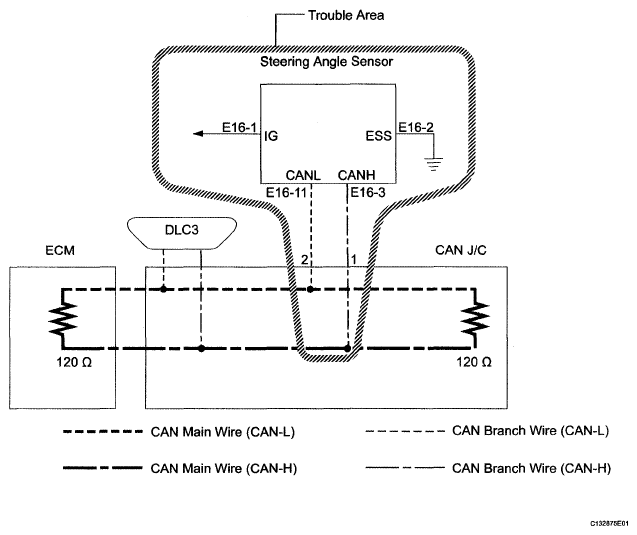

Fig 1: Identifying Steering Angle Sensor Communication Stop Mode Wiring Diagram

G05115255

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
