Combination Meter ASSY: Overhaul

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See INSTRUMENT PANEL/METER .
Installation is in the reverse order or removal.

REMOVE METER HOOD SUB-ASSY
1. Remove the clip.
2. Using a screwdriver, disengage the 7 claws, then remove the meter hood sub-assy.
HINT:

Tape the screwdriver tip before use.

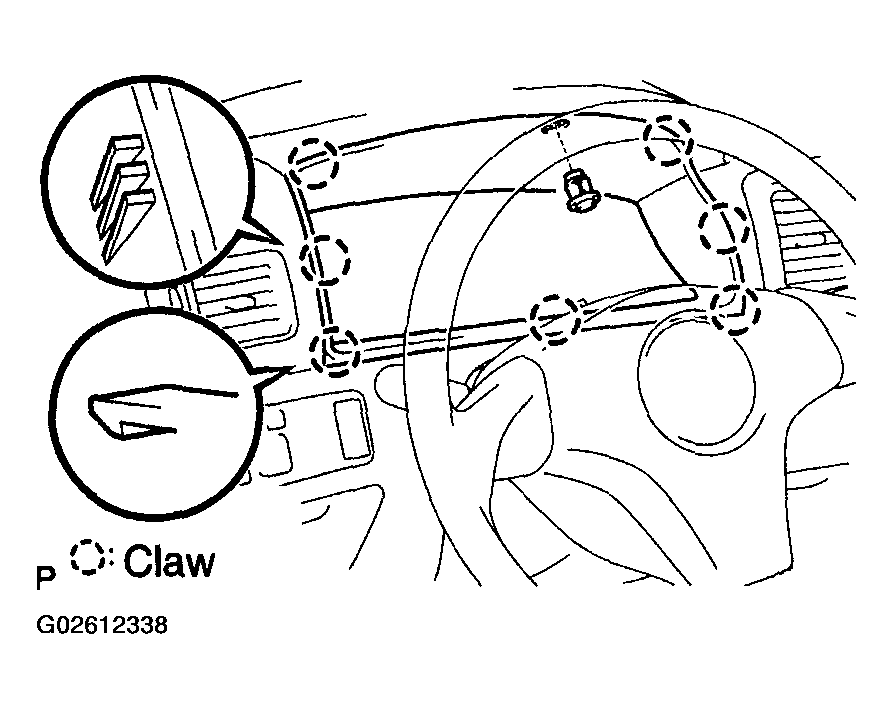

Fig 1: Removing Meter Hood Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSY
1. Remove the screw.
2. Disengage the 2 clips as shown in the illustration.
3. Disconnect the connector, then remove the combination meter.

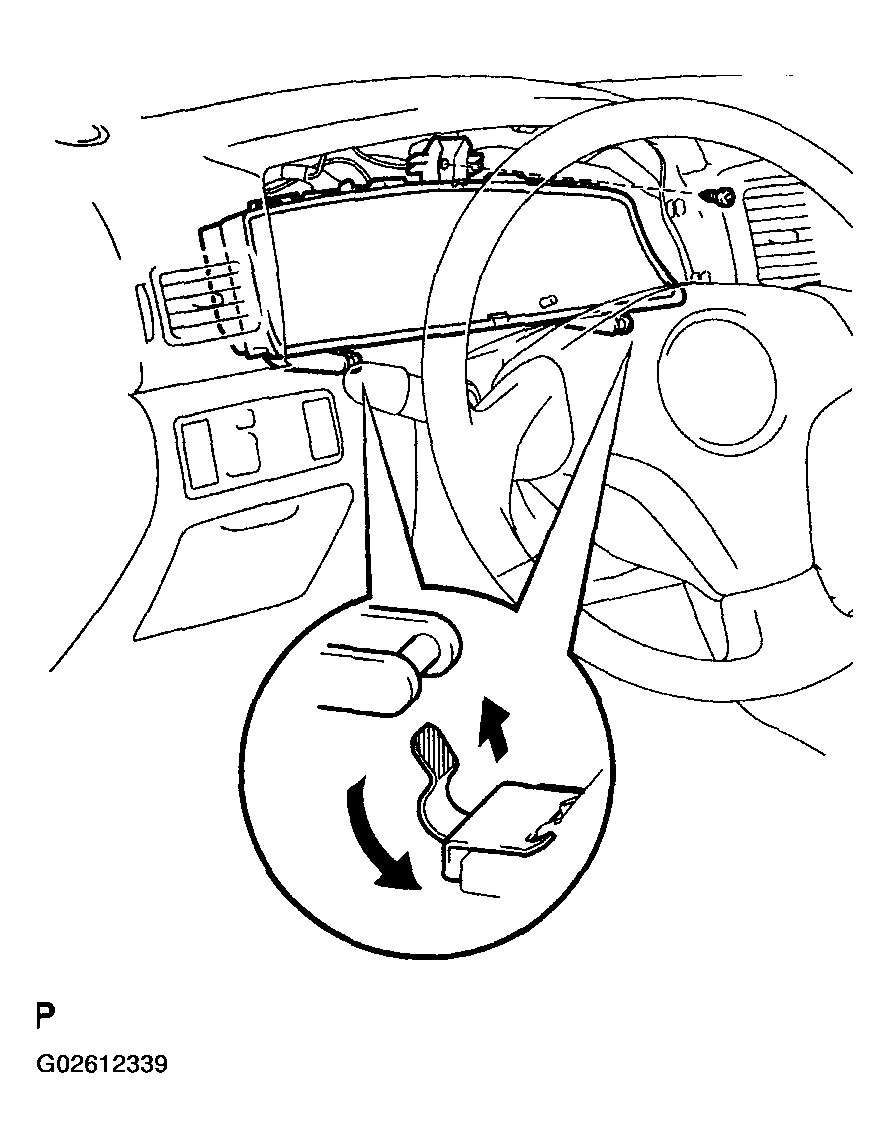

Fig 2: Removing Combination Meter Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS
1. Using a screwdriver, disengage the 8 claws, then remove the combination meter glass.
HINT:

Tape the screwdriver tip before use.

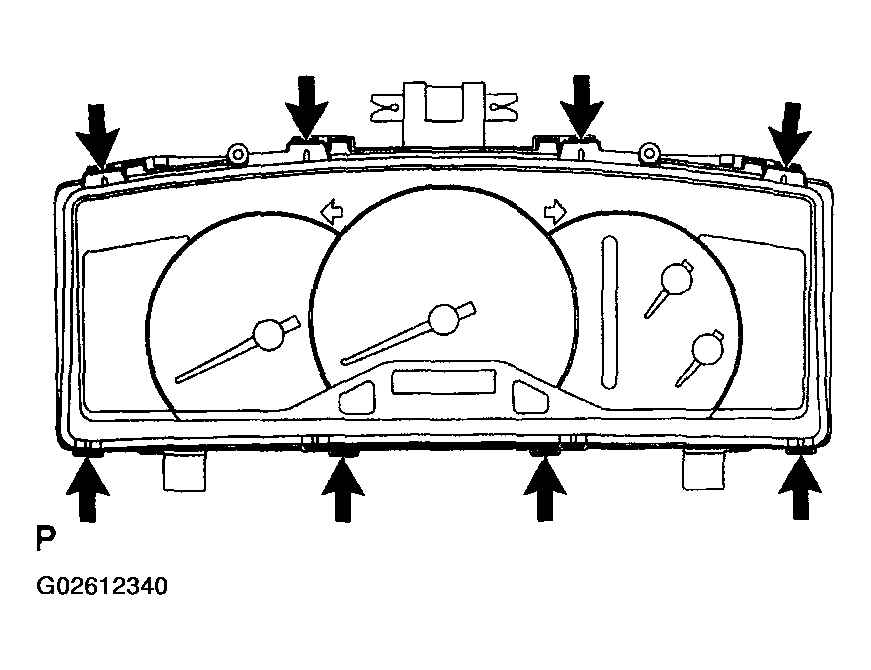

Fig 3: Removing Combination Meter Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
