Windshield Wiper Switch ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

REMOVE STEERING COLUMN COVER LWR
1. Remove the 3 screws and the steering column cover LWR.

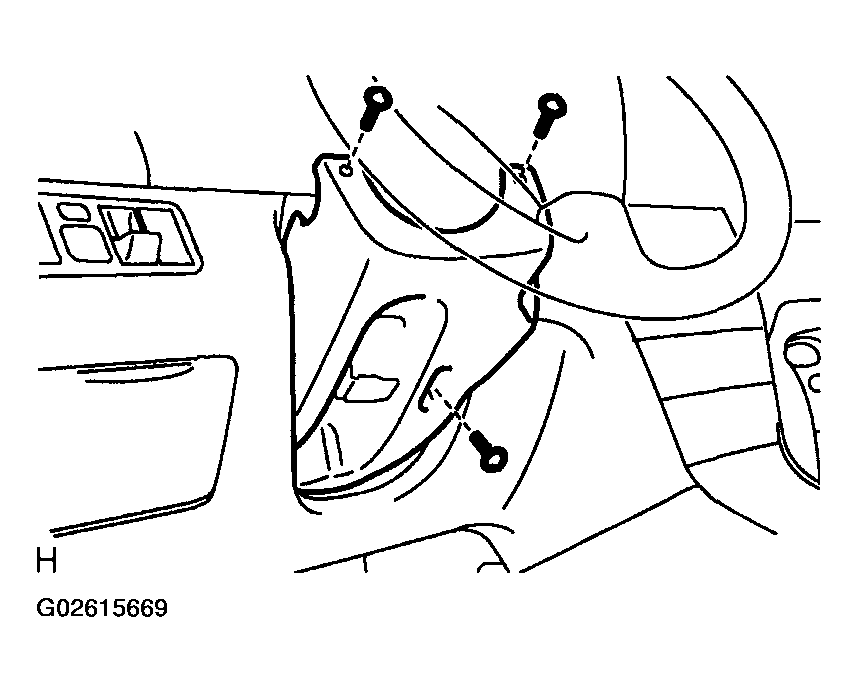

Fig 1: Removing Steering Column Cover LWR Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD WIPER SWITCH ASSY
1. Disconnect the connector.
2. Release the claw and pull out the windshield wiper switch assy as shown in the illustration.
NOTE: Pressing the claw hard breaks the claw.

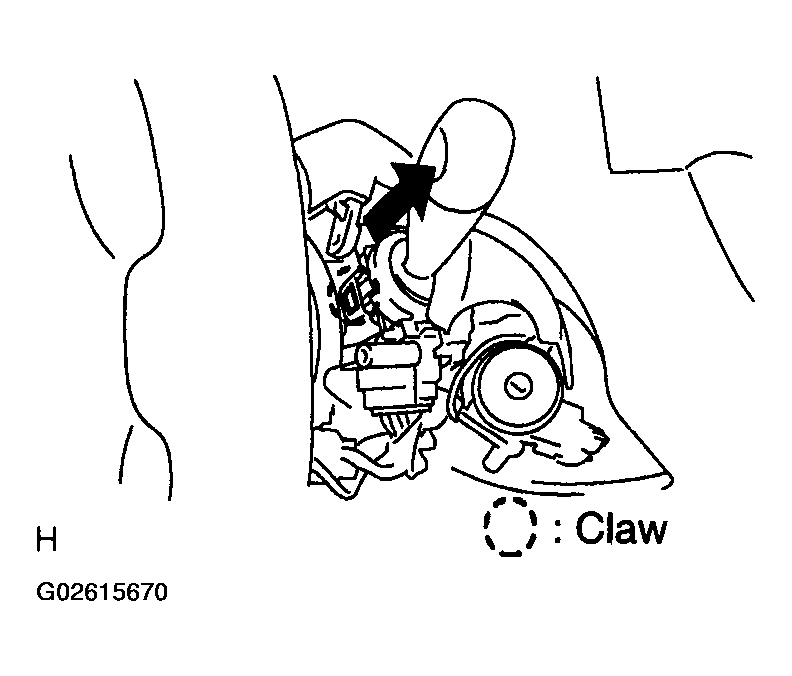

Fig 2: Removing Windshield Wiper Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
