On-Vehicle Inspection

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK STEERING WHEEL FREE PLAY
    1. Stop the vehicle and align the tires straight ahead.
    2. Turn the steering wheel gently right and left by hand, and check the steering wheel free play.

    Maximum free play: 30 mm (1.18 in.)

    If the free play exceeds the maximum, replace the steering intermediate shaft or steering gear.

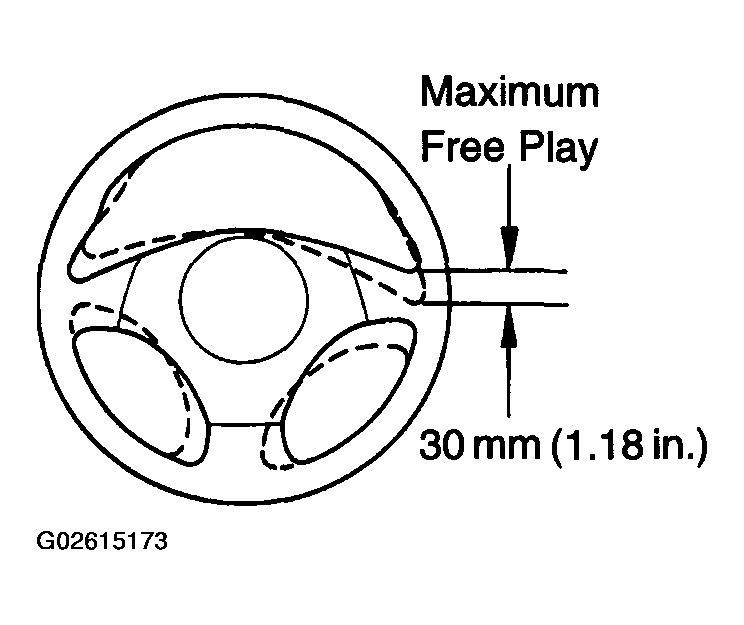

    Fig 1: Checking Steering Wheel Free Play
    G02615173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
