Section 11 (Combination Meter - Diagnostics): Location

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

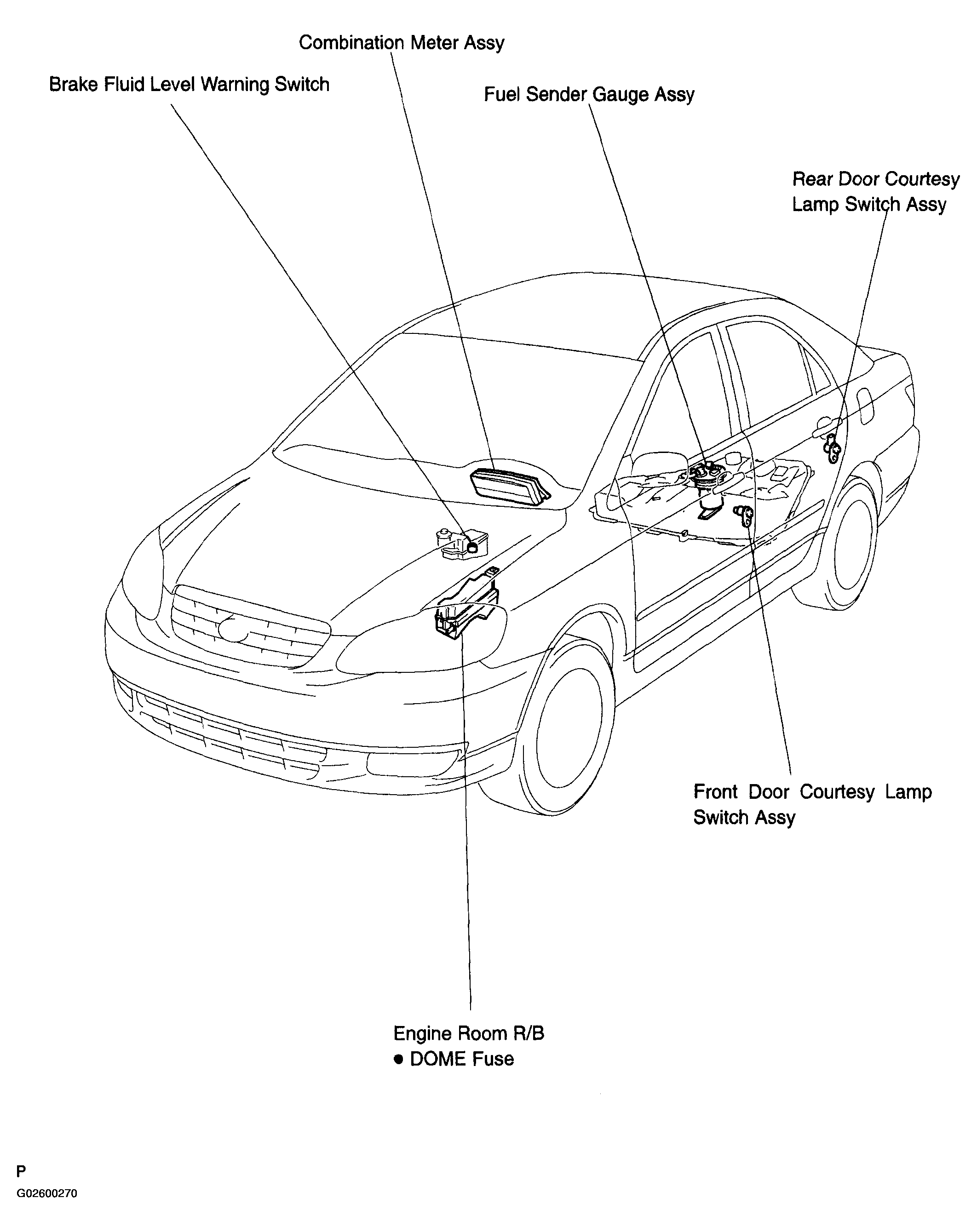

Fig 1: Identifying Combination Meter Components Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

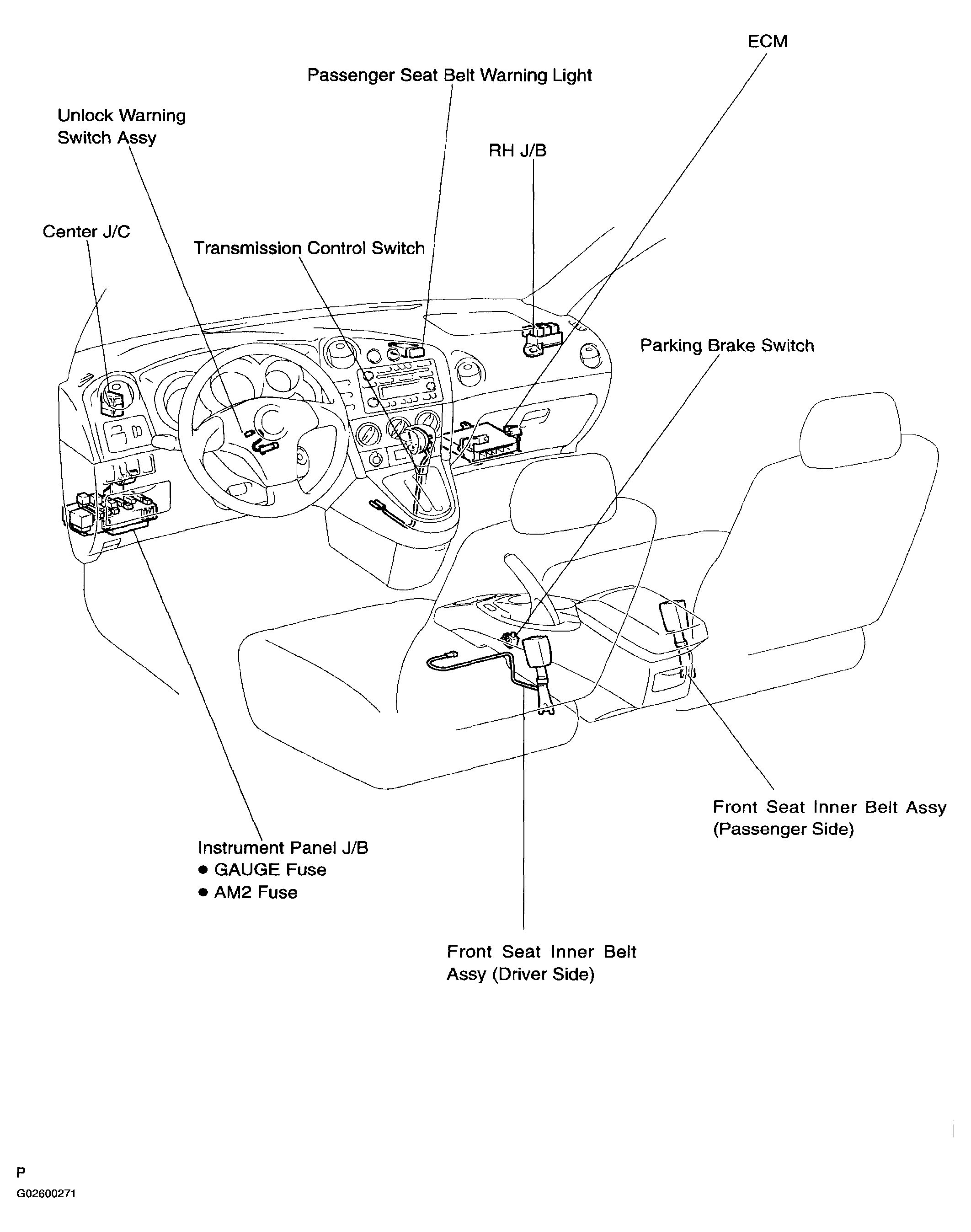

Fig 2: Identifying Electrical Components Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

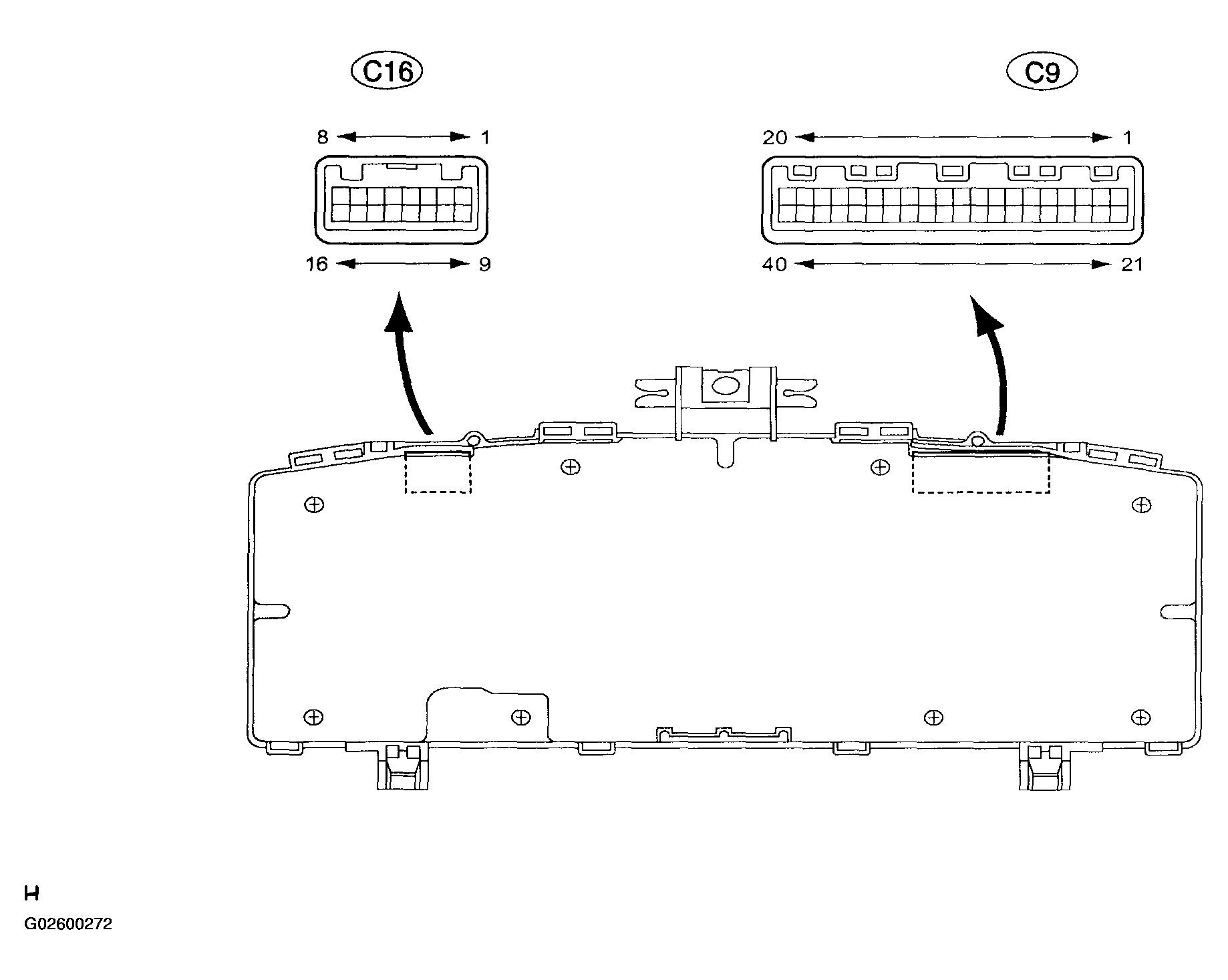

Fig 3: Identifying C16 And C9 Connectors Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

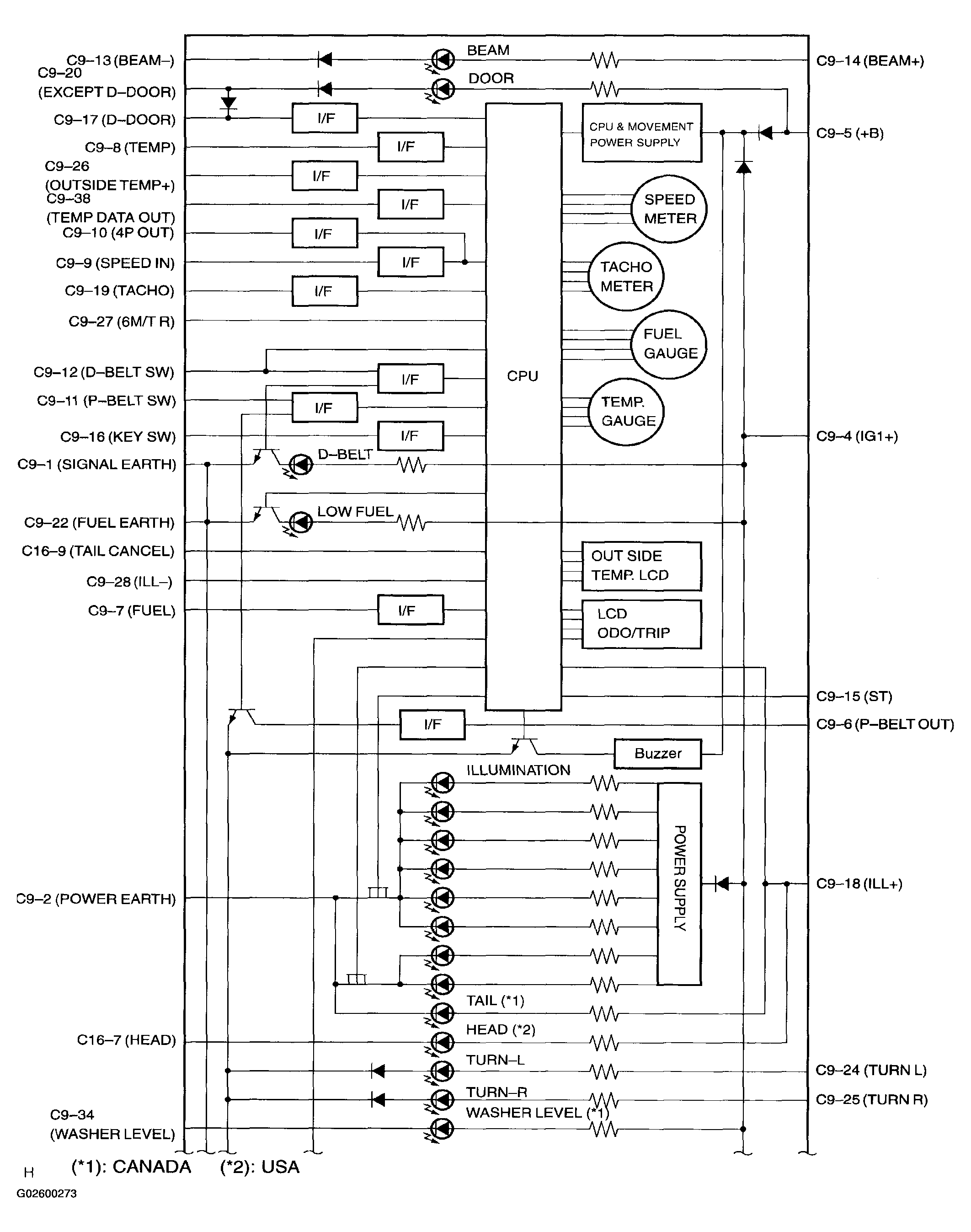

Fig 4: Wiring Diagram - Combination Meter (1 Of 2)

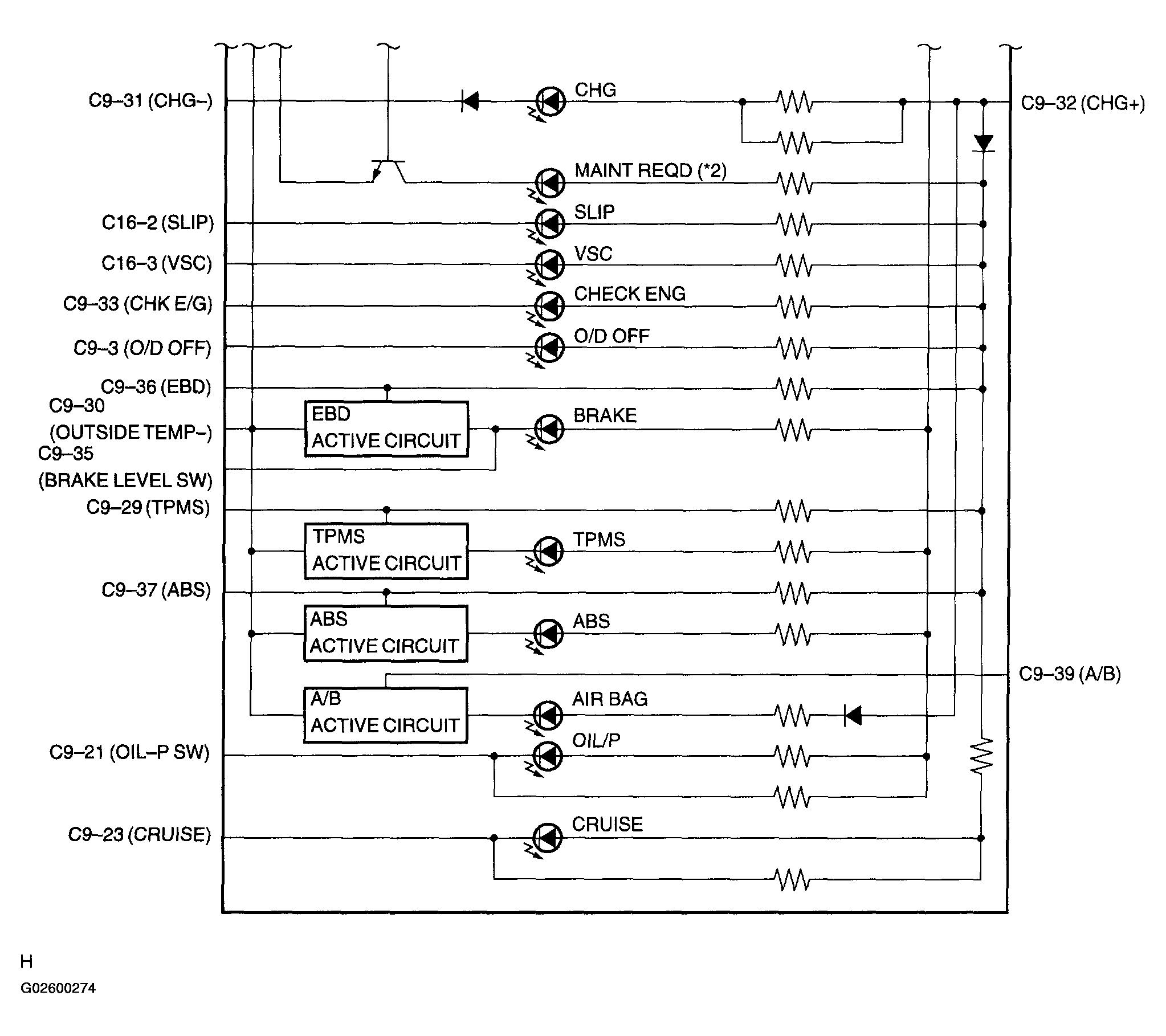

Fig 5: Wiring Diagram - Combination Meter (2 Of 2)

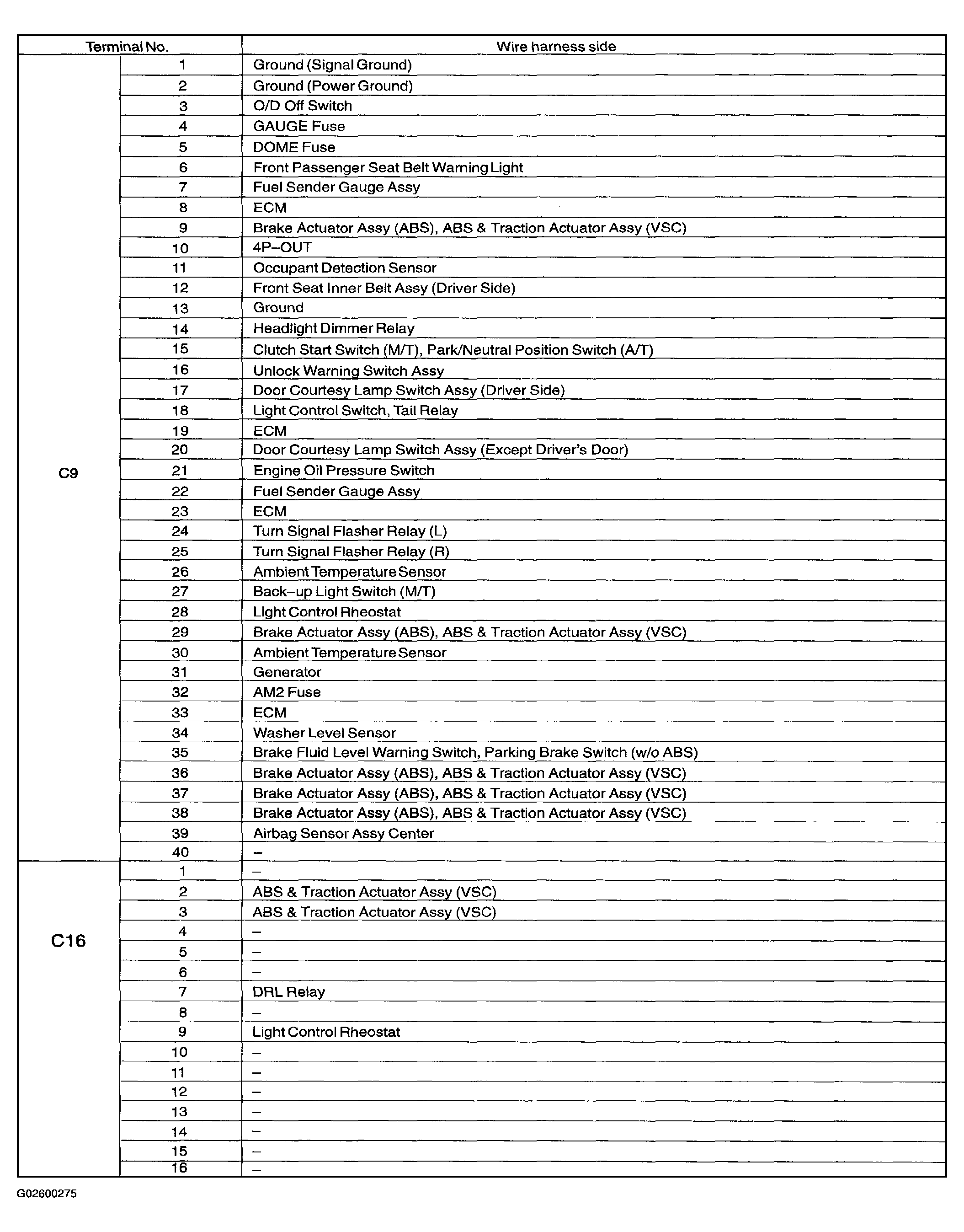

Fig 6: Connector Terminals Reference Table
