Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT COMBINATION METER ASSY
    1. Disconnect C9 connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified Condition
      C9-2-Body ground Always Below 1 Ω
    3. Measure the voltage according to the value (s) in the table below.

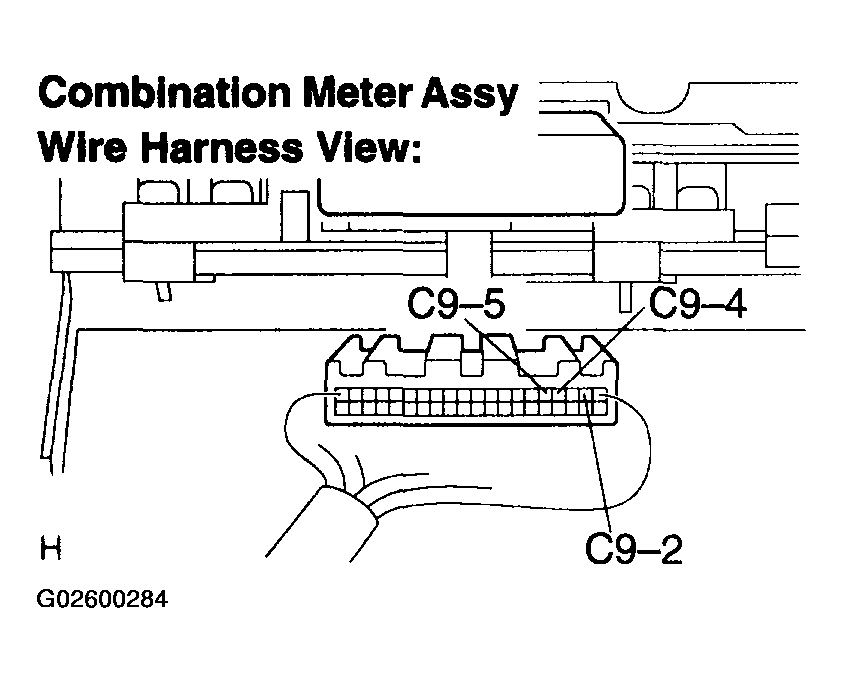

      Fig 1: Inspecting Combination Meter Assy
      G02600284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified Condition
      C9-4 - Body ground Ignition switch ACC or ON 10 to 14 V
      C9-5 - Body ground Always 10 to 14 V
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP

      REPLACE COMBINATION METER ASSY (SEE  COMBINATION METER ASSY  )
