Corolla S, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System (1ZZ-FE)
>>
SFI System
>>
EVAP System
>>
Wiring Diagram
EVAP System: Wiring Diagram

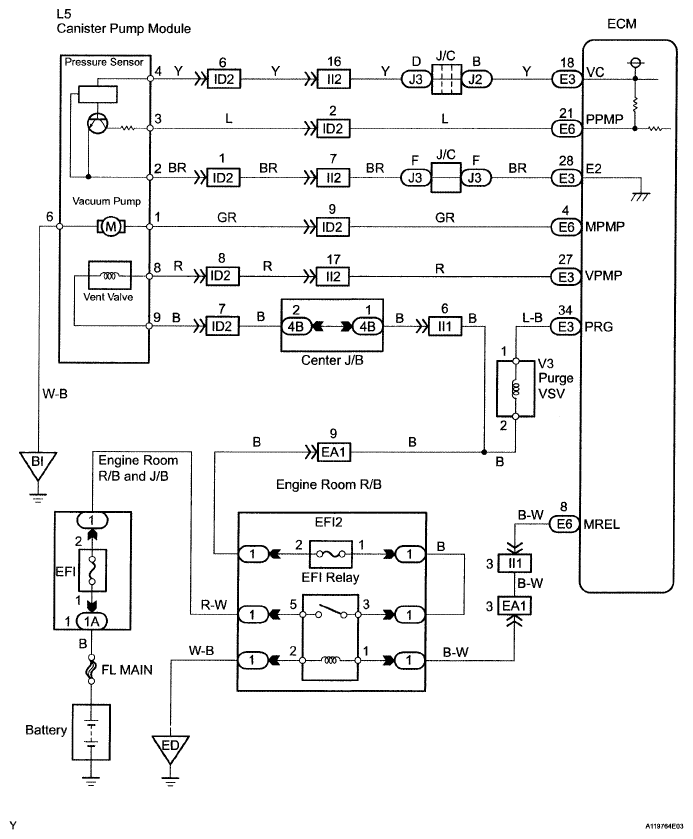

Fig 1: EVAP System - Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
