Section 9 (Supplemental Restraint System - Diagnostics)
>>
System Diagram
System Diagram
WARNING:
This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

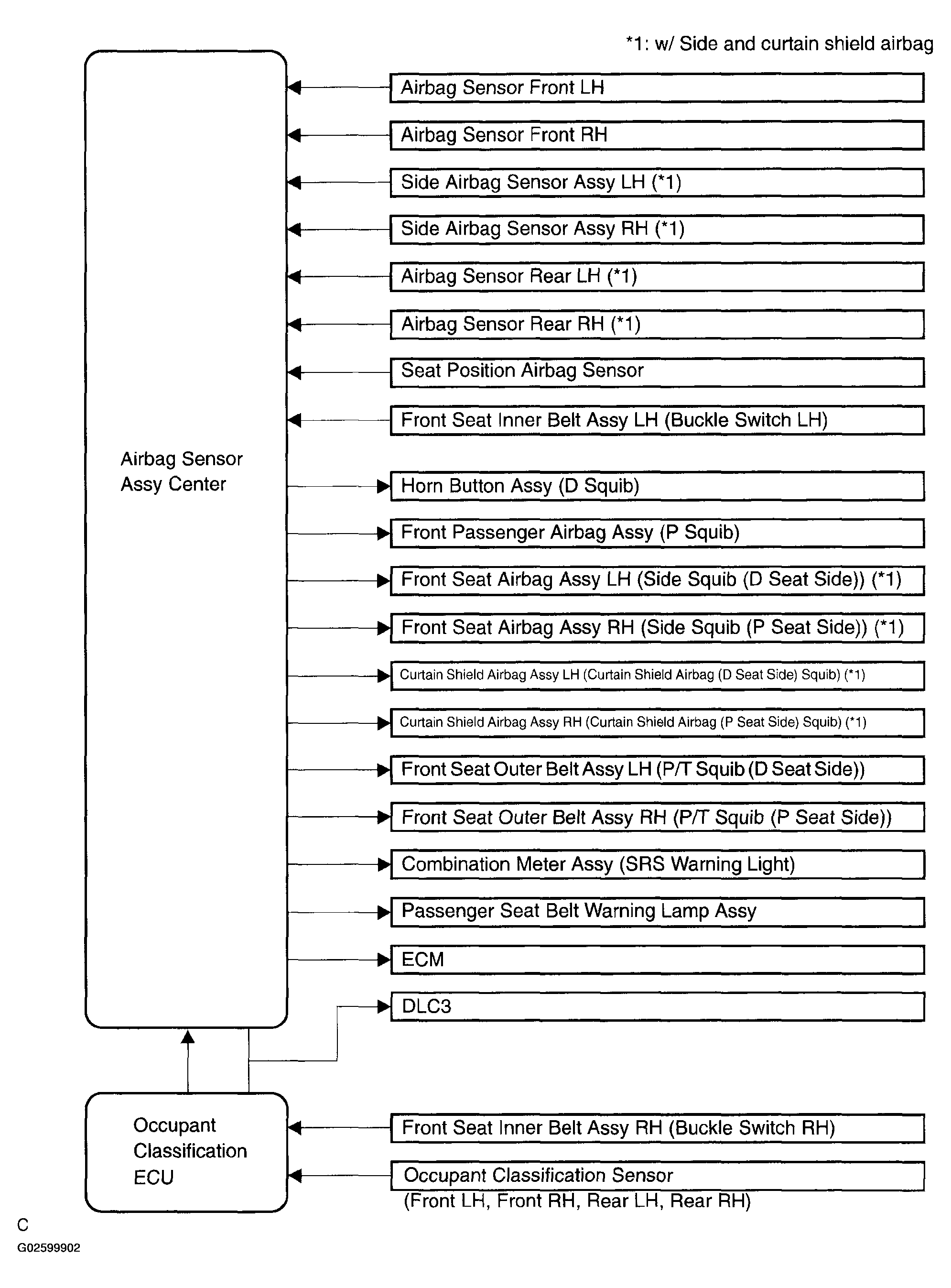

Fig 1: System Diagram - Supplemental Restraint System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
