DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC B1000/31 | AIRBAG SENSOR ASSY CENTER MALFUNCTION |
| DTC B1610/13 | FRONT AIRBAG SENSOR (RH) MALFUNCTION |
| DTC B1615/14 | FRONT AIRBAG SENSOR (LH) MALFUNCTION |
| DTC B1620/21 | SIDE AIRBAG SENSOR ASSEMBLY (D SEAT SIDE) MALFUNCTION |
| DTC B1625/22 | SIDE AIRBAG SENSOR ASSEMBLY (P SEAT SIDE) MALFUNCTION |
| DTC B1630/23 | CURTAIN SHIELD AIRBAG SENSOR (D SEAT SIDE) MALFUNCTION |
| DTC B1635/24 | CURTAIN SHIELD AIRBAG SENSOR (P SEAT SIDE) MALFUNCTION |
| DTC B1650/32 | OCCUPANT CLASSIFICATION SYSTEM MALFUNCTION |
| DTC B1653/35 | SEAT POSITION SENSOR ASSEMBLY MALFUNCTION |
| DTC B1655/37 | SEAT BELT BUCKLE SWITCH (D SEAT SIDE) MALFUNCTION |
| DTC B1660/43 | PASSENGER AIRBAG ON/OFF INDICATOR LIGHT CIRCUIT MALFUNCTION |
| DTC B1771 | PASSENGER SIDE BUCKLE SWITCH CIRCUIT MALFUNCTION |
| DTC B1780 | OCCUPANT CLASSIFICATION SENSOR FRONT LH CIRCUIT MALFUNCTION |
| DTC B1781 | OCCUPANT CLASSIFICATION SENSOR FRONT RH CIRCUIT MALFUNCTION |
| DTC B1782 | OCCUPANT CLASSIFICATION SENSOR REAR LH CIRCUIT MALFUNCTION |
| DTC B1783 | OCCUPANT CLASSIFICATION SENSOR REAR RH CIRCUIT MALFUNCTION |
| DTC B1785 | OCCUPANT CLASSIFICATION SENSOR FRONT LH COLLISION DETECTION |
| DTC B1786 | OCCUPANT CLASSIFICATION SENSOR FRONT RH COLLISION DETECTION |
| DTC B1787 | OCCUPANT CLASSIFICATION SENSOR REAR LH COLLISION DETECTION |
| DTC B1788 | OCCUPANT CLASSIFICATION SENSOR REAR RH COLLISION DETECTION |
| DTC B1790 | AIRBAG SENSOR ASSY CENTER COMMUNICATION CIRCUIT MALFUNCTION |
| DTC B1793 | OCCUPANT CLASSIFICATION SENSOR POWER SUPPLY CIRCUIT MALFUNCTION |
| DTC B1795 | OCCUPANT CLASSIFICATION ECU MALFUNCTION |
| DTC B1796 | SLEEP OPERATION FAILURE OF OCCUPANT CLASSIFICATION ECU |
| DTC B1800/51, B1801/51, B1802/51, B1803/51 | SHORT/OPEN IN D SQUIB CIRCUIT (TO GROUND/TO B+) |
| DTC B1805/52, B1806/52, B1807/52, B1808/52 | SHORT/OPEN IN P SQUIB CIRCUIT (TO GROUND/TO B+) |
| DTC B1810/53, B1811/53, B1812/53, B1813/53 | SHORT/OPEN IN D SQUIB (DUAL STAGE - 2ND STEP) CIRCUIT (TO GROUND/TO B+) |
| DTC B1815/54, B1816/54, B1817/54, B1818/54 | SHORT/OPEN IN P SQUIB (DUAL STAGE - 2ND STEP) CIRCUIT (TO GROUND/TO B+) |
| DTC B1820/55, B1821/55, B1822/55, B1823/55 | SHORT/OPEN IN SIDE SQUIB (D SEAT SIDE) CIRCUIT (TO GROUND/TO B+) |
| DTC B1825/56, B1826/56, B1827/56, B1828/56 | SHORT/OPEN IN SIDE SQUIB (P SEAT SIDE) CIRCUIT (TO GROUND/TO B+) |
| DTC B1830/57, B1831/57, B1832/57, B1833/57 | SHORT/OPEN IN CURTAIN SHIELD AIRBAG (D SEAT SIDE) SQUIB CIRCUIT (TO GROUND/TO B+) |
| DTC B1835/58, B1836/58, B1837/58, B1838/58 | SHORT/OPEN IN CURTAIN SHIELD AIRBAG (P SEAT SIDE) SQUIB CIRCUIT (TO GROUND/TO B+) |
| DTC B1900/73, B1901/73, B1902/73, B1903/73 | SHORT/OPEN IN P/T SQUIB (D SEAT SIDE) CIRCUIT (TO GROUND/TO B+) |

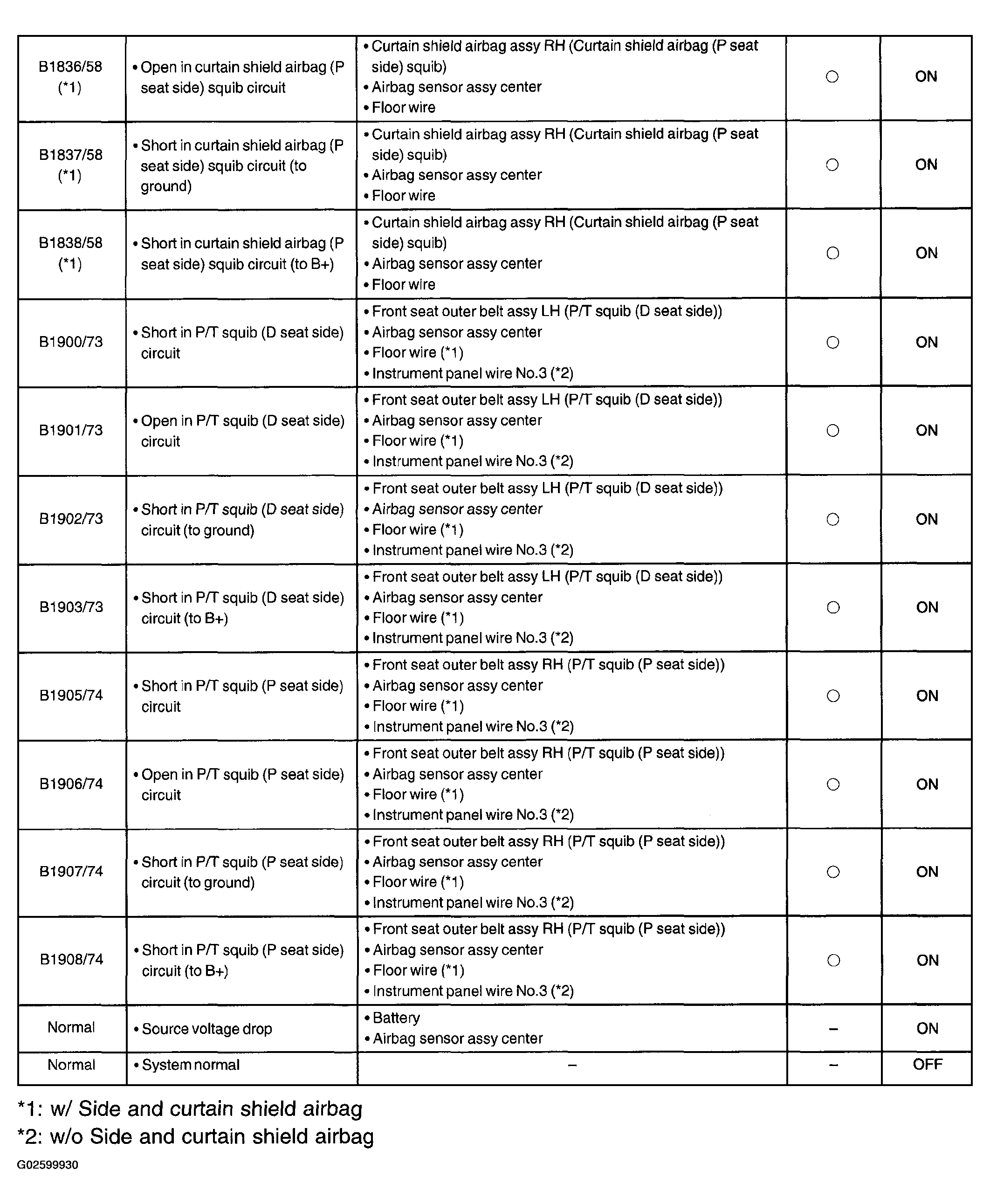

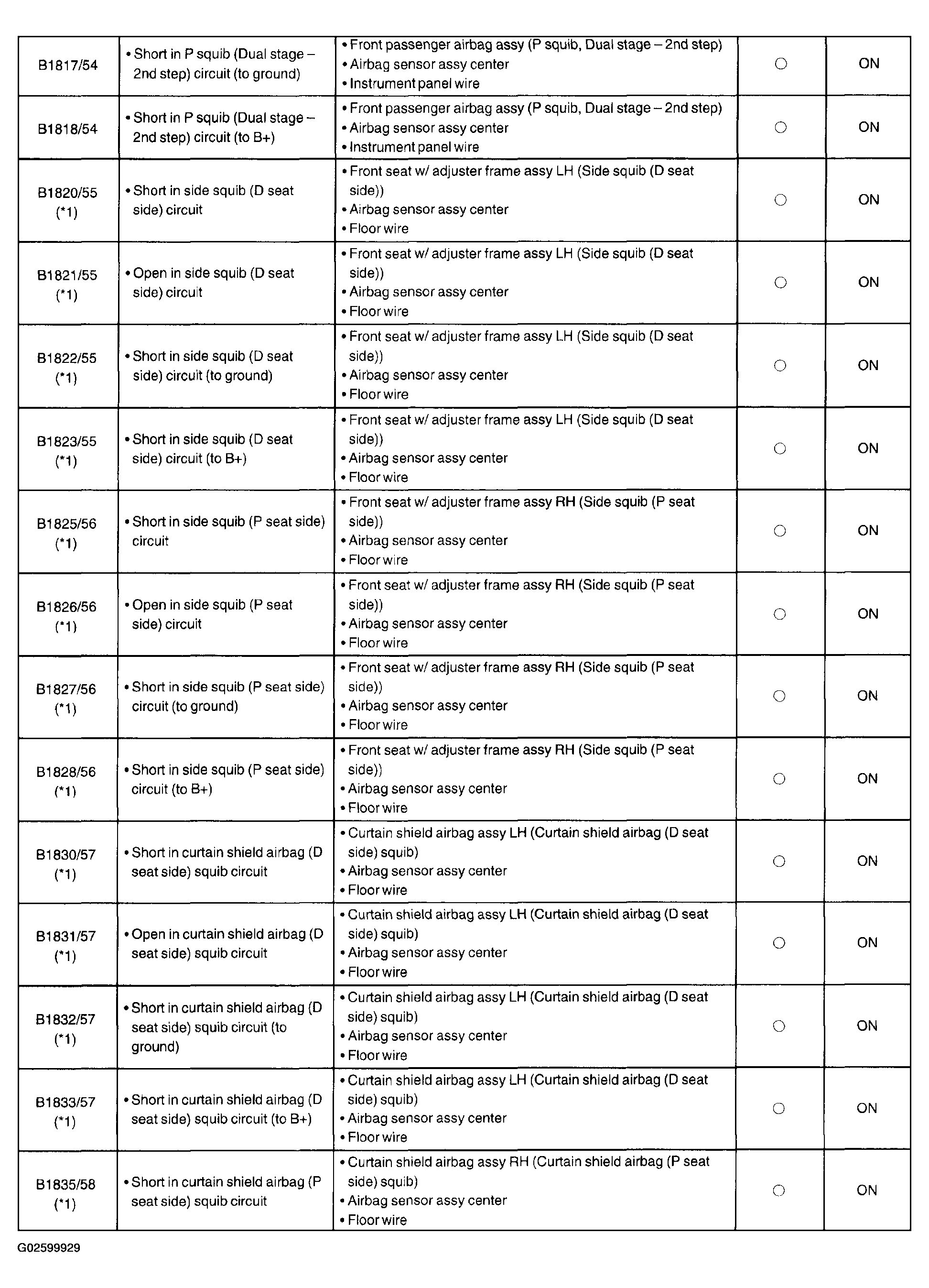

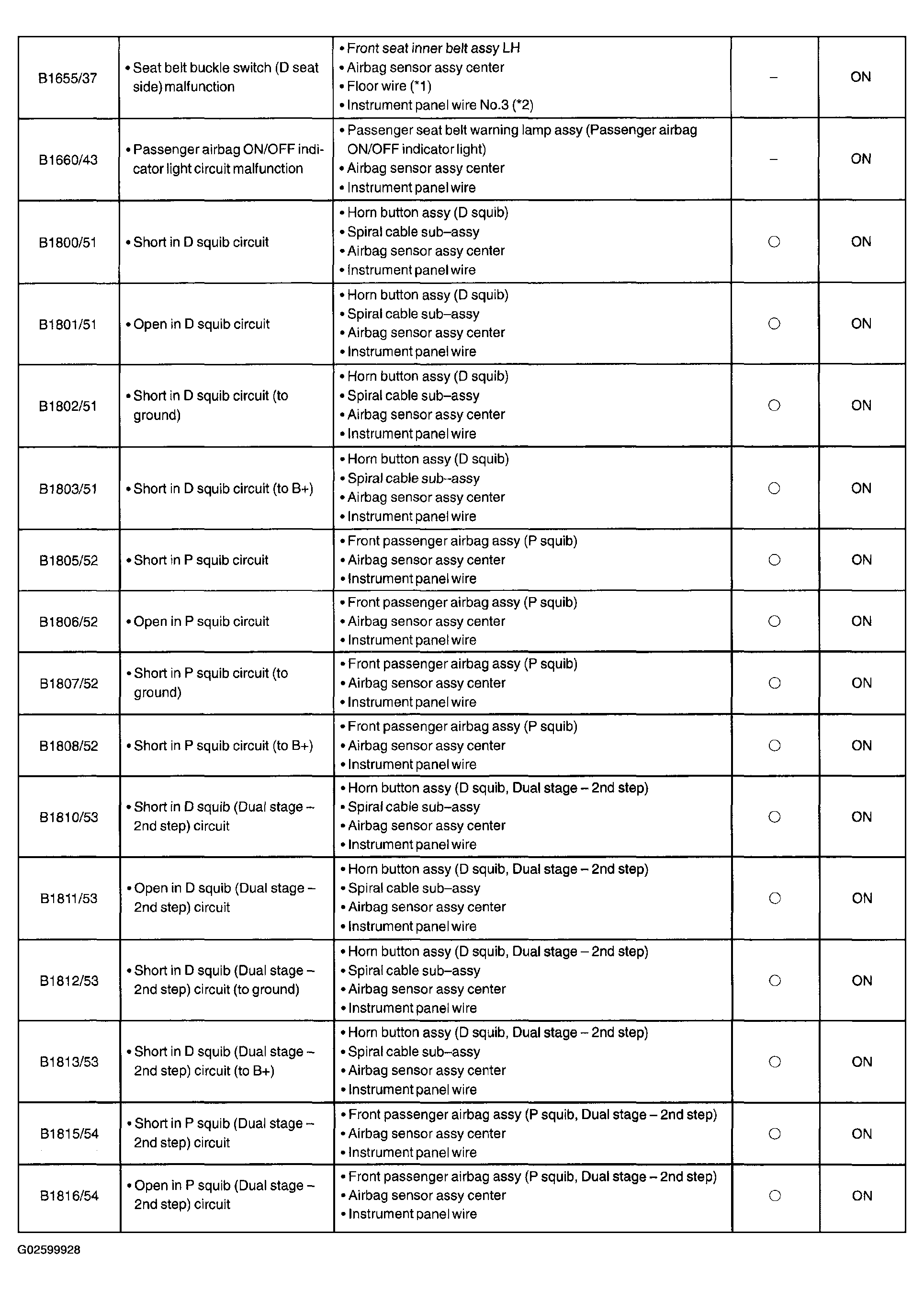

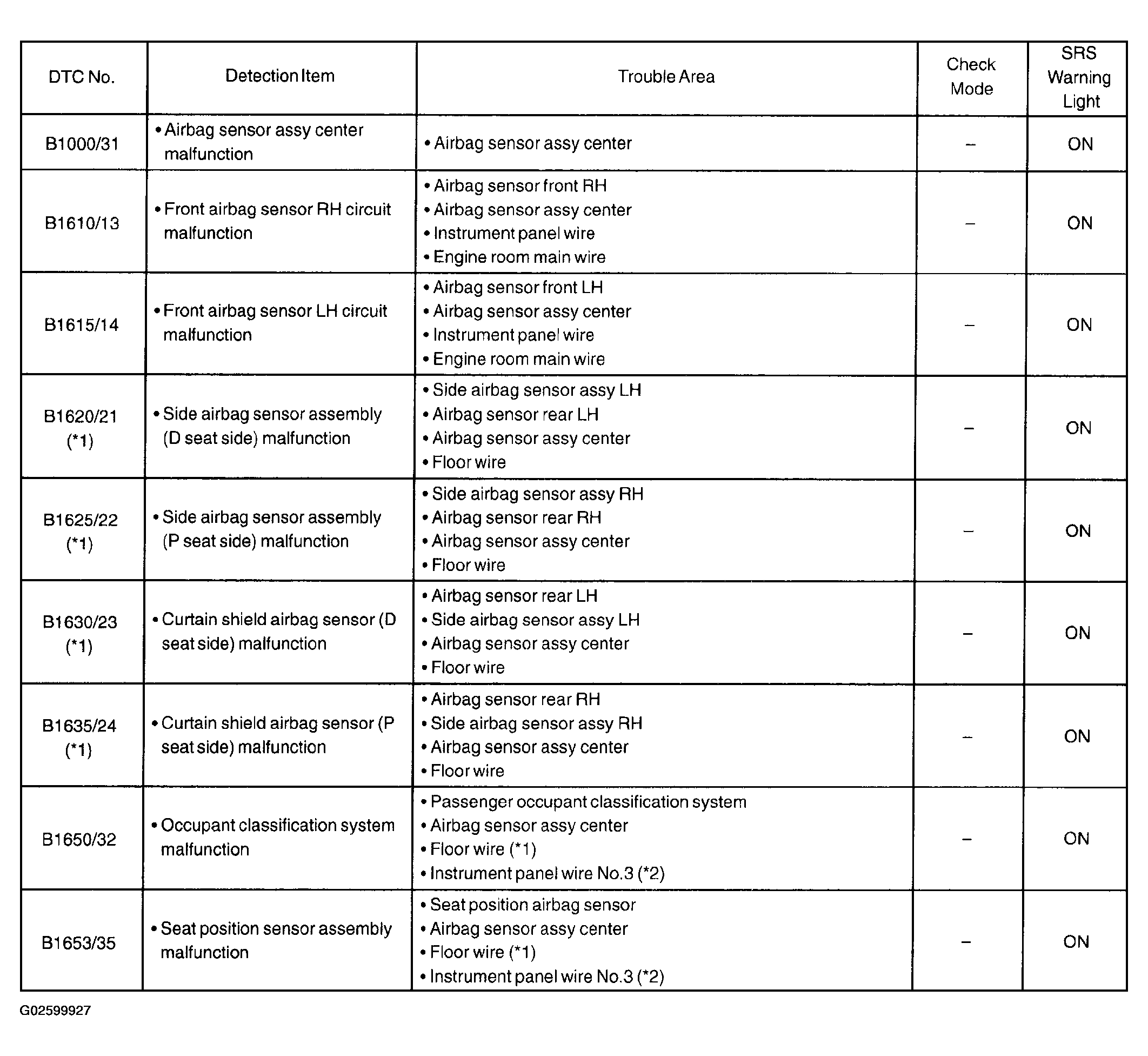

- DTCS FOR SUPPLEMENTAL RESTRAINT SYSTEM
If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table below (Proceed to the page listed for that circuit).
HINT:
- When the SRS warning light remains on and the DTC output is the normal system code, a voltage source drop is likely to occur. This malfunction is not stored in memory by the airbag sensor assy center. If the power source voltage returns to normal, the SRS warning light will automatically go off.
- When 2 or more codes are indicated, the code with the lower number appears first.
- If a code is not listed on the display chart, the airbag sensor assy center may have failed.
- In the case of any malfunction concerning an open circuit, short to ground, or short to B+ due to an squib, other trouble codes may not be detected. In this case, repair the malfunction currently indicated and then perform malfunction diagnosis again.
- Mark in the check mode column:
- "O": DTC is corresponding to the check mode.
- "-": DTC is not corresponding to the check mode.
- When DTC B1650/32 is detected as a result of troubleshooting for the Supplemental Restraint System, perform troubleshooting for the occupant classification system as shown in the chart below.

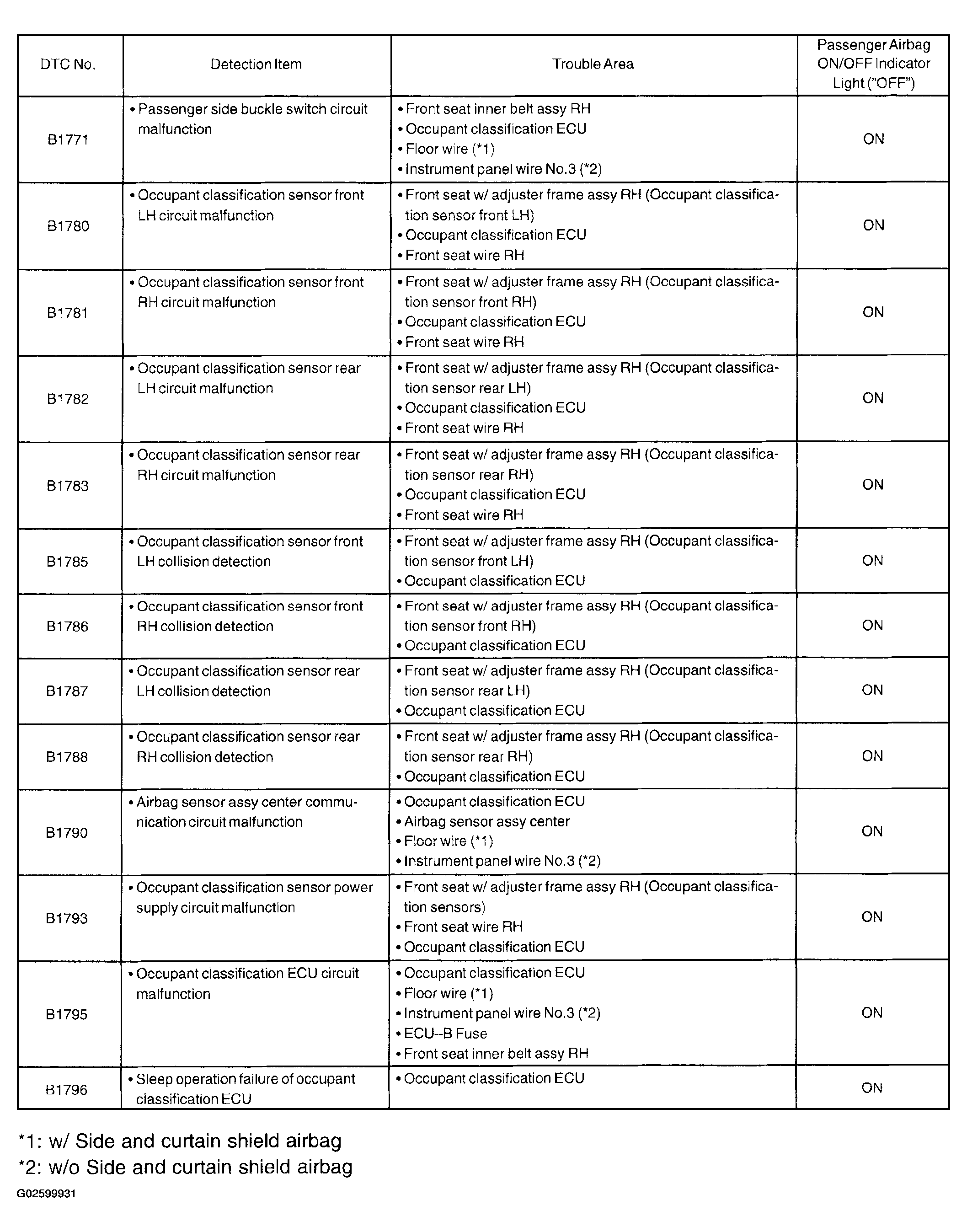

- DTCS FOR FRONT PASSENGER OCCUPANT CLASSIFICATION SYSTEM
HINT:
When DTC B1650/32 is detected as a result of troubleshooting for the Supplemental Restraint System, perform troubleshooting for the occupant classification system as shown in the chart below.
