On-Vehicle Inspection

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SLIDING ROOF FUNCTION
1. Check the slide opening operation (Manual).
  1. Turn the ignition switch ON.
  2. When pressing and holding the sliding roof switch to the OPEN side, check that the roof glass will slide and fully open.
2. Check the slide closing operation (Manual).
  1. Turn the ignition switch ON.
  2. When pressing and holding the slide roof switch to the CLOSE side, check that the roof glass will slide but stop halfway.
  3. When operating the sliding roof switch to the CLOSE side again after the above operation, check that the roof glass will slide fully close.
INSPECT SLIDING ROOF DRIVE GEAR
1. Disconnect the connector from the relay and switch, and voltage and measure the resistance of the connector on the wire harness side, as shown in the chart.

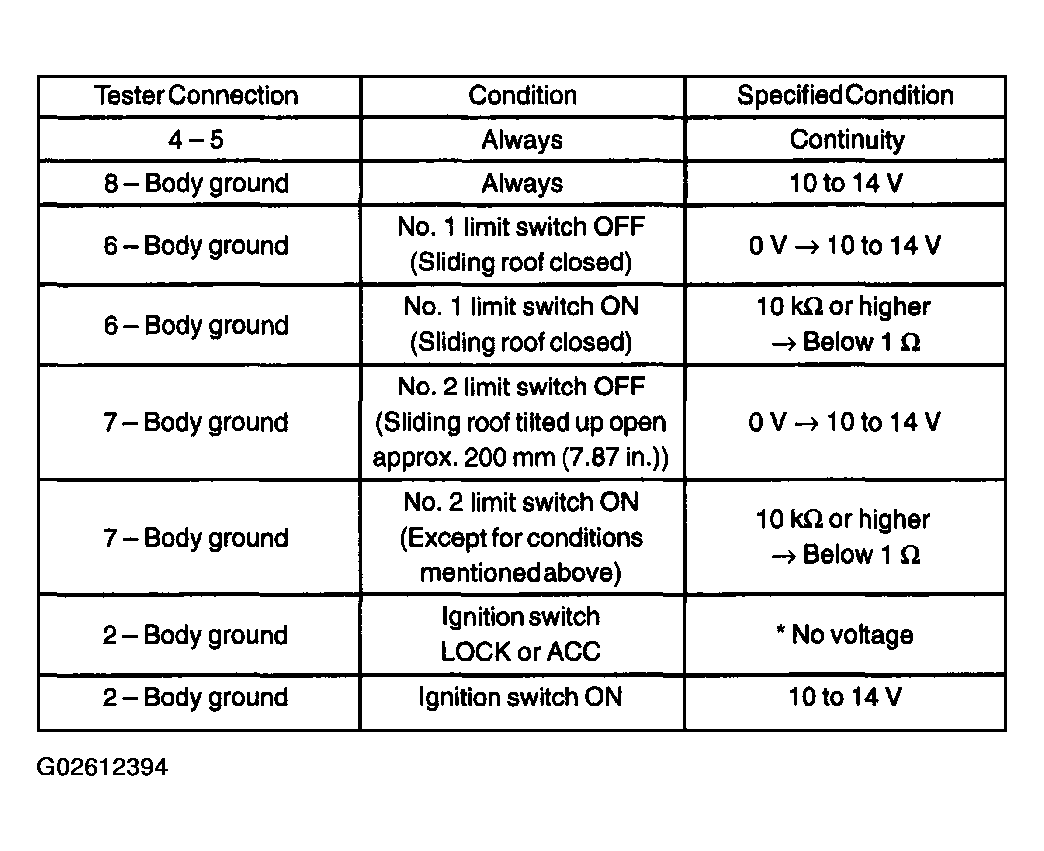

Fig 1: Tester Connection Specified Condition Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

* Exceptions:

For 60 seconds after the ignition switch ON --> OFF (ACC), or until the driver or passenger door is opened after the ignition switch ON --> OFF (ACC).

If the result is not as specified, replace the relay.

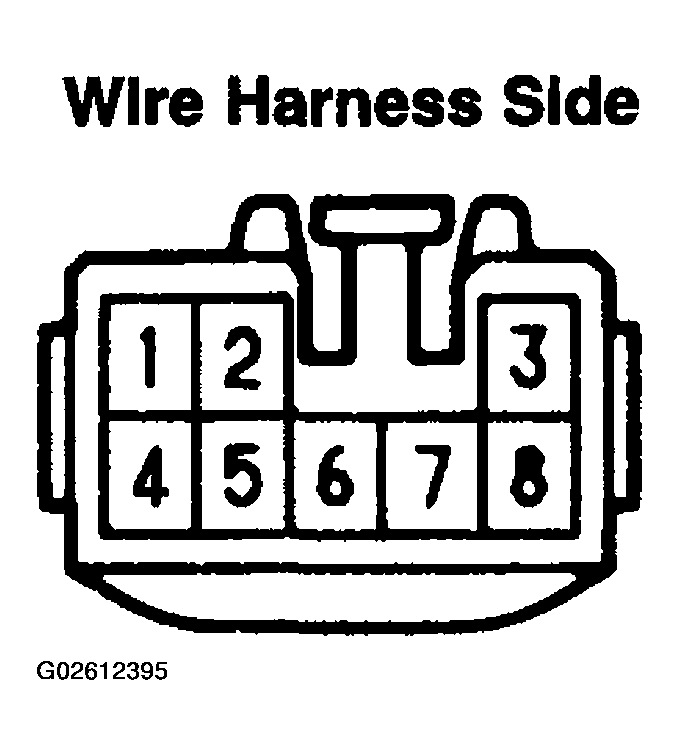

Fig 2: Identifying Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
