Sliding Roof System: Inspection

1. Measure the resistance of the sliding roof switch.

Standard:

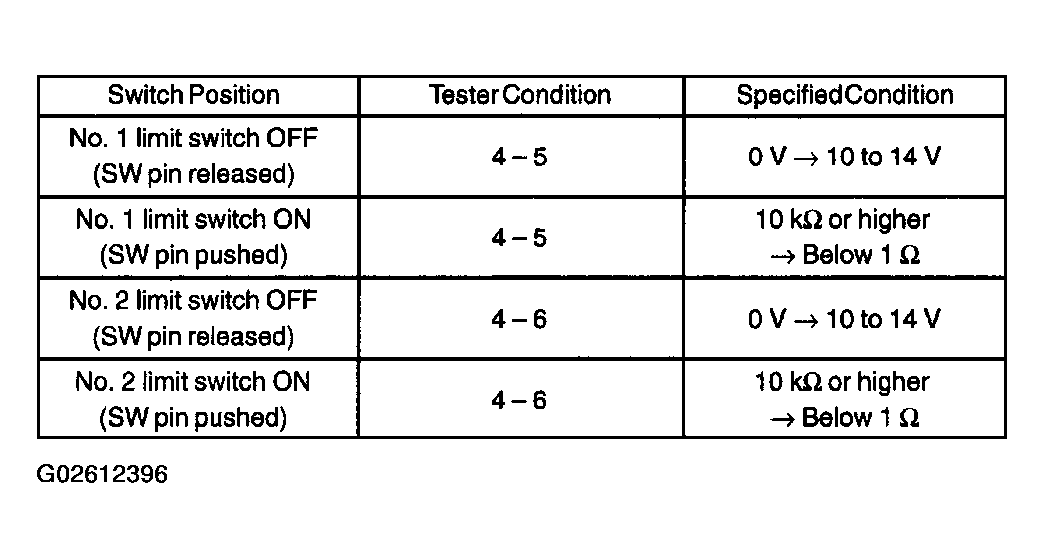

Fig 1: Switch Position Specified Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the switch.

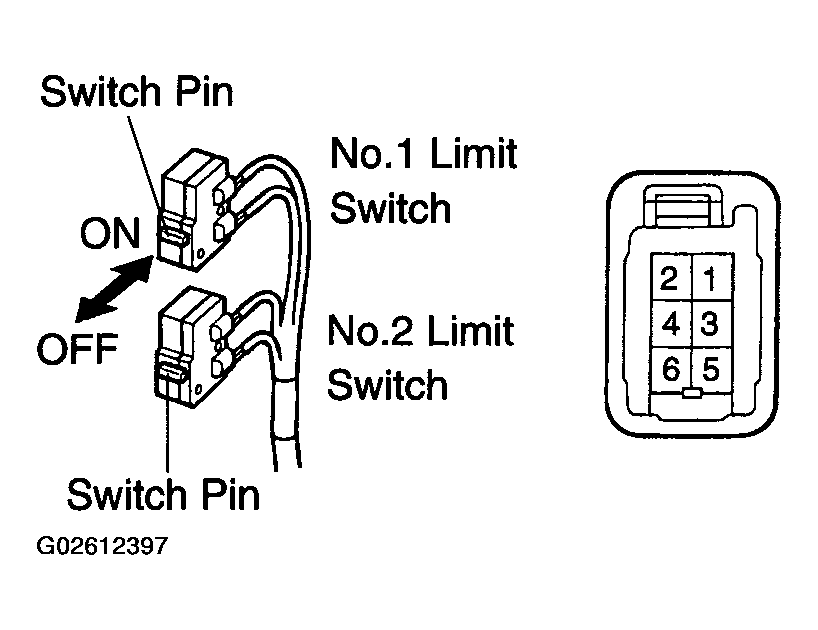

Fig 2: Identifying Sliding Roof Limit Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

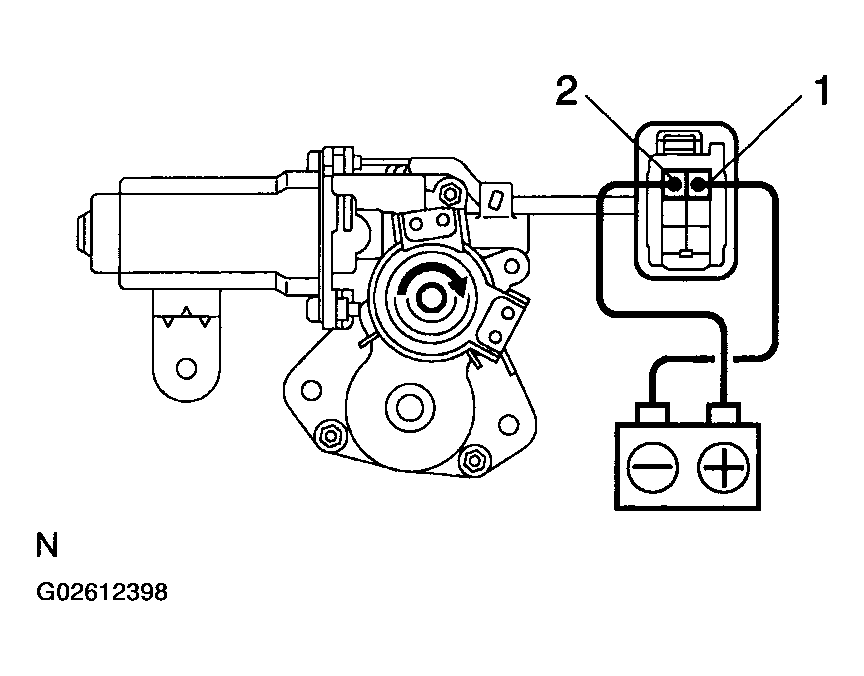

1. Connect the battery's positive (+) lead to terminal 2 and the negative (-) lead to terminal 1, and check that the motor turns clockwise (moves to the close side).
   Fig 3: Checking Motor Turns Clockwise

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

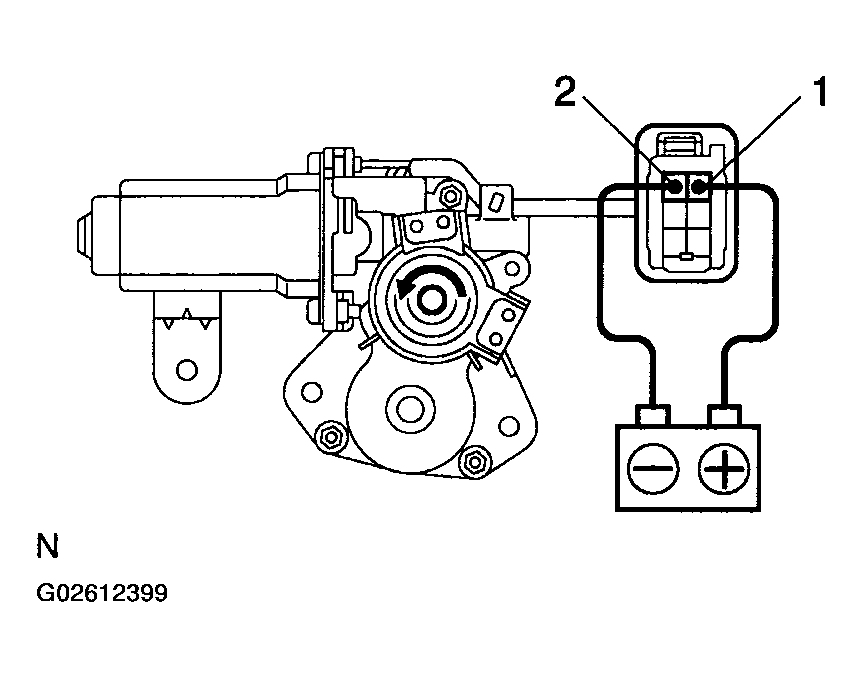

2. Reverse the battery's leads. Check that the motor turns counterclockwise (moves to the open side).

If the result is not as specified, replace the motor.

Fig 4: Checking Motor Turns Counterclockwise

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

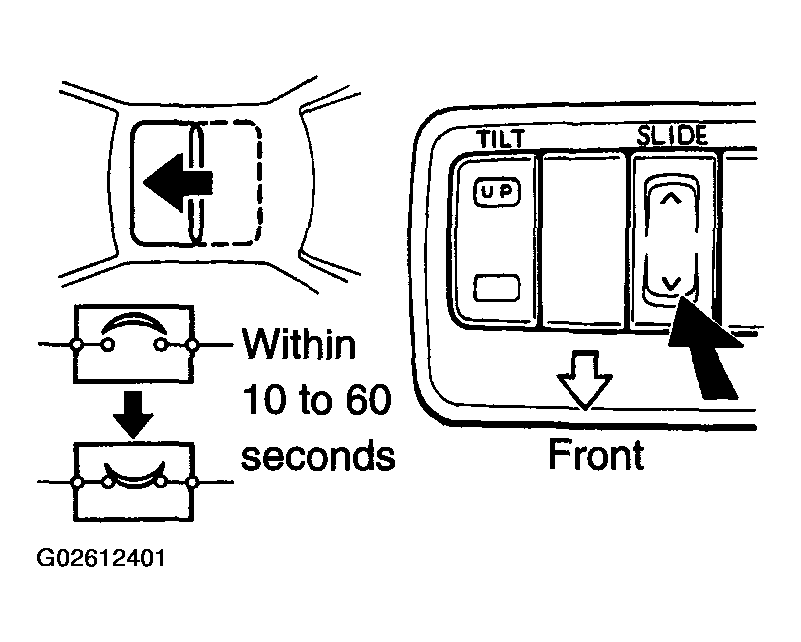

1. With the sliding roof in the fully opened position, hold the sliding roof switch to the OPEN side and check that there is a circuit breaker operating noise within 10 to 60 seconds.
   Fig 5: Inspecting Sliding Roof Motor Circuit Breaker

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

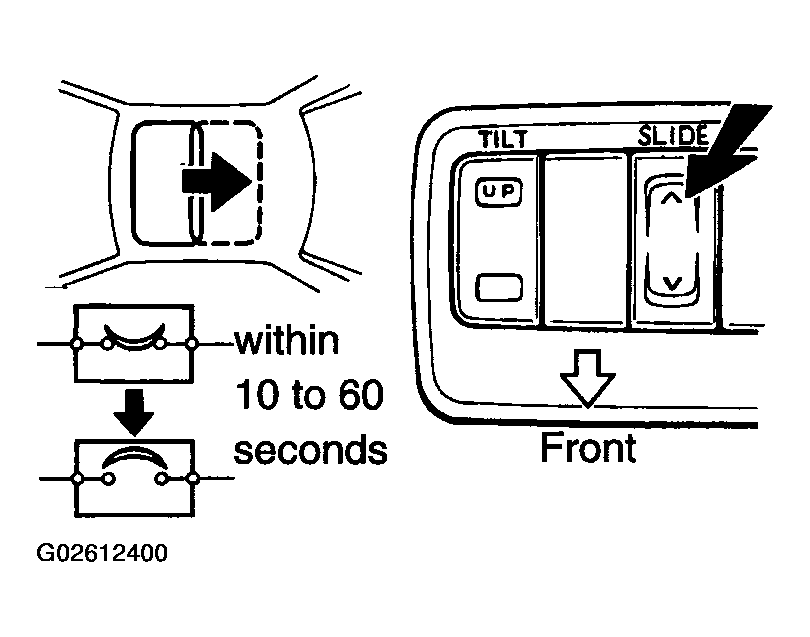

2. With the sliding roof in the fully opened position, hold the sliding roof switch to the CLOSE side and check that the sliding roof begins to close within 60 seconds.

If the result is not as specified, replace the motor.

Fig 6: Checking Sliding Roof Closes

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

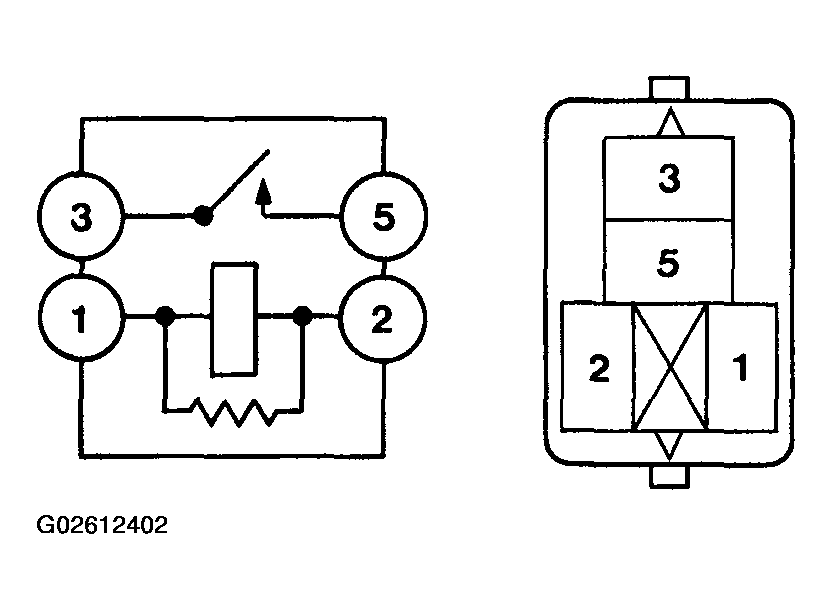

1. Remove the power window relay from the instrument panel J/B.
2. Measure the resistance of the relay.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   1 - 2	Always	Below 1 Ω
   3 - 5	Apply battery voltage between terminals 1 and 2	Below 1 Ω

   If the result is not as specified, replace the relay.

Fig 7: Inspecting Power Main Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
