Front Seat: Components

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

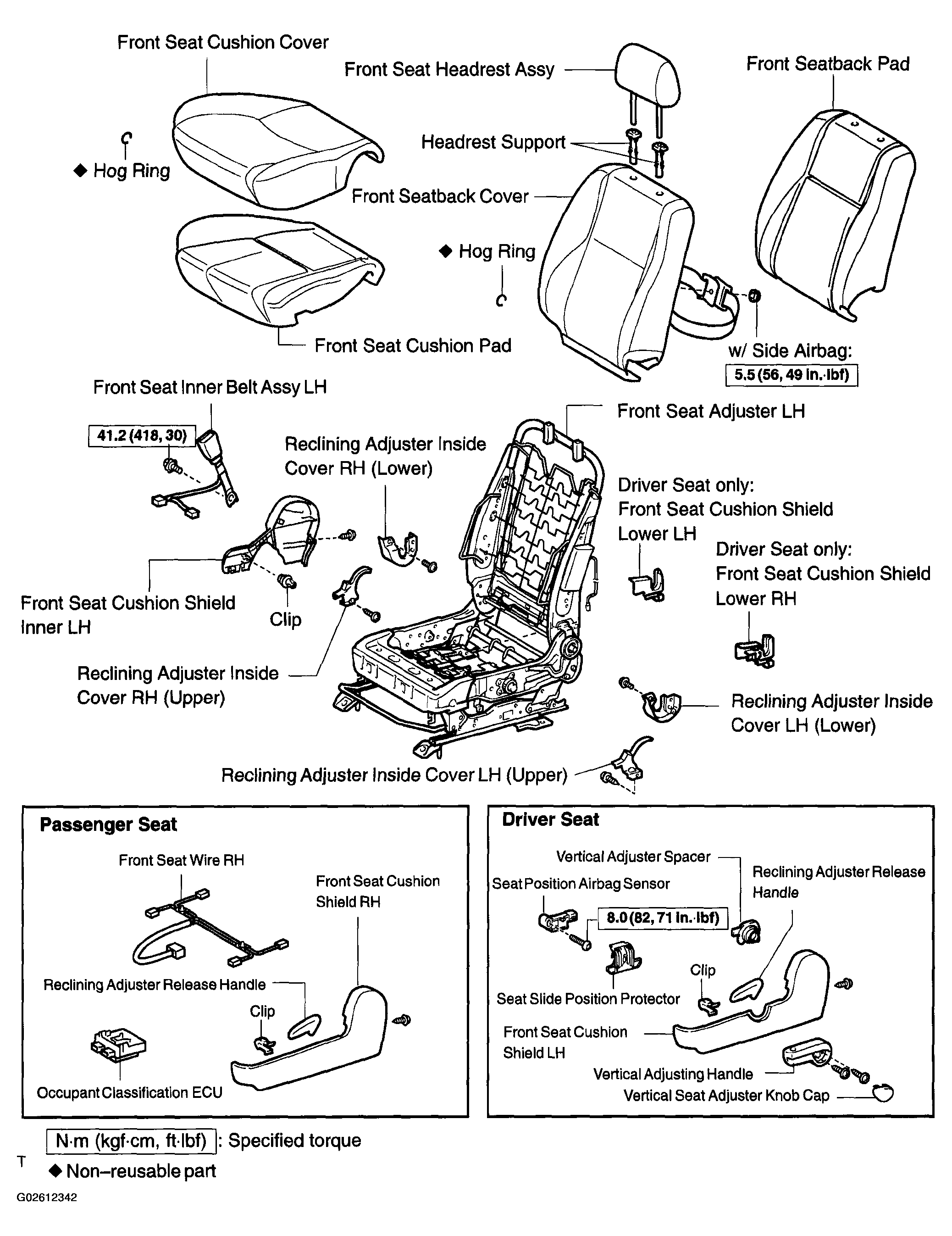

Fig 1: Identifying Front Seat Components (1 Of 2)
G02612342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

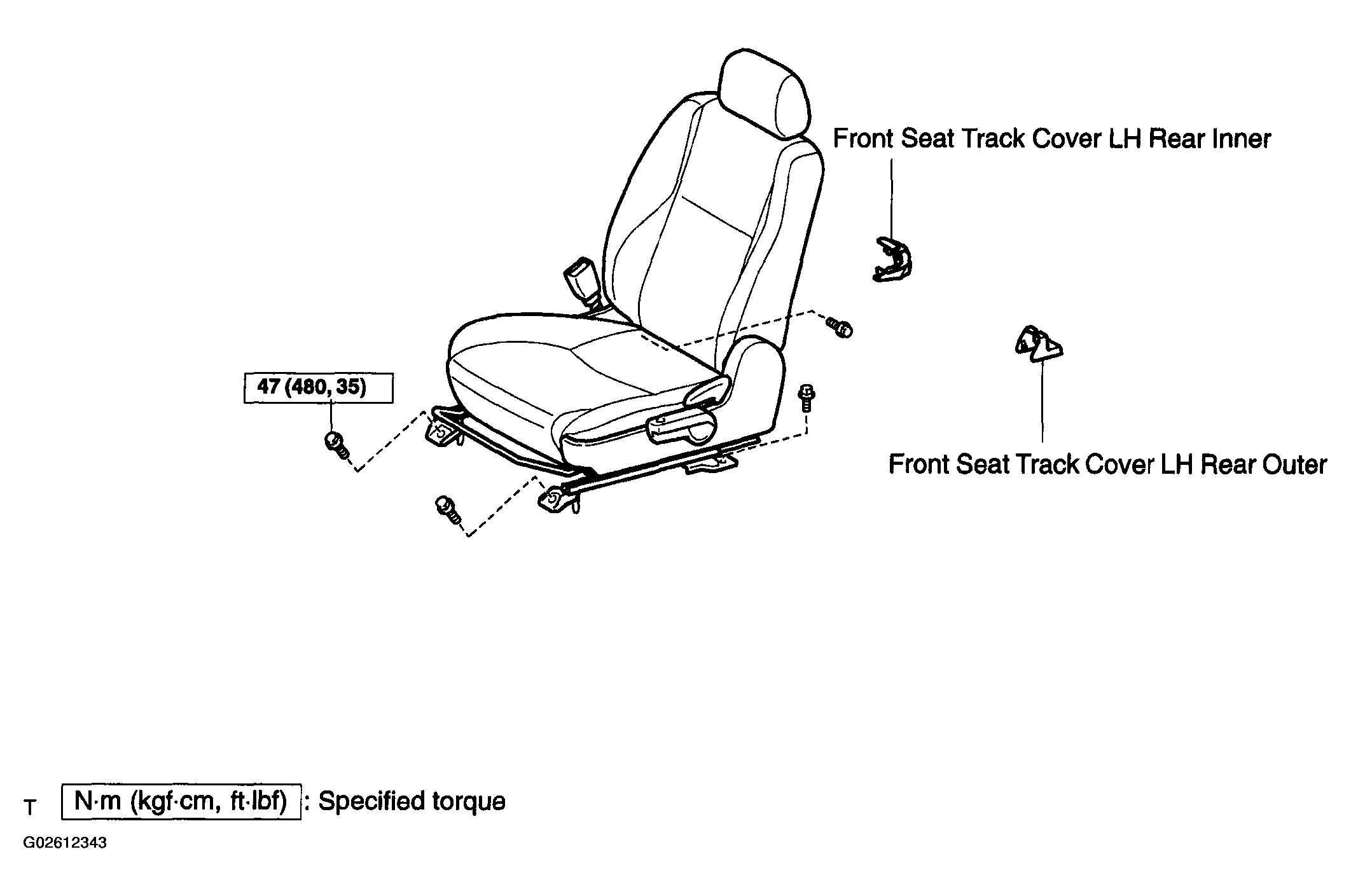

Fig 2: Identifying Front Seat Components (2 Of 2)
G02612343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
