Stereo Component Amplifier ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

DISCONNECT BATTERY NEGATIVE TERMINAL (See SUPPLEMENTAL RESTRAINT SYSTEM )
REMOVE FRONT SEAT TRACK COVER LH REAR OUTER (See OVERHAUL )
REMOVE FRONT SEAT TRACK COVER LH REAR INNER (See OVERHAUL )
REMOVE FRONT SEAT HEADREST ASSY (See OVERHAUL )
REMOVE FRONT SEAT ASSY (See OVERHAUL )
REMOVE STEREO COMPONENT AMPLIFIER ASSY
1. Disconnect each connectors.
2. Remove the 3 bolts and stereo component amplifier assy.

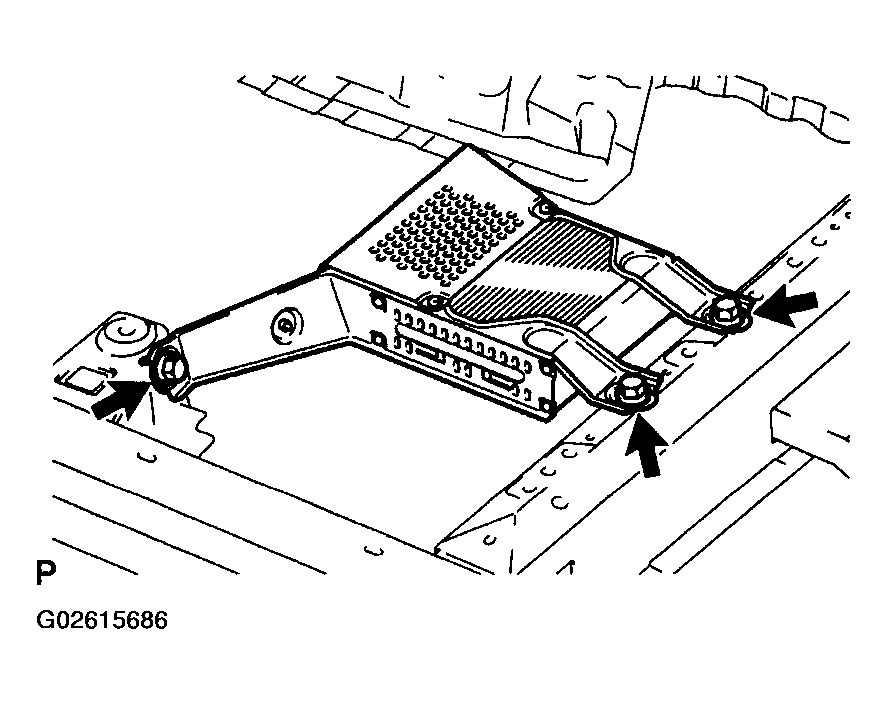

Fig 1: Locating Amplifier Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT ASSY (See OVERHAUL )
CHECK SEAT SLIDE ADJUSTER LOCKS (See OVERHAUL )
CONNECT BATTERY NEGATIVE TERMINAL (See SUPPLEMENTAL RESTRAINT SYSTEM )
CHECK SRS WARNING LIGHT (See DIAGNOSIS SYSTEM )
