Radio Receiver ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

  1. REMOVE SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE) (See  REPLACEMENT  )
  2. REMOVE CONSOLE PANEL UPPER (See  REPLACEMENT  )
  3. REMOVE HEATER CONTROL KNOB (See  REPLACEMENT  )
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL (See  REPLACEMENT  )
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
    1. Remove the 4 screws.
    2. Using a screwdriver, disengage the 2 clips and 4 claws, then remove the instrument cluster finish panel sub-assy center with radio receiver assy.

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the connectors.

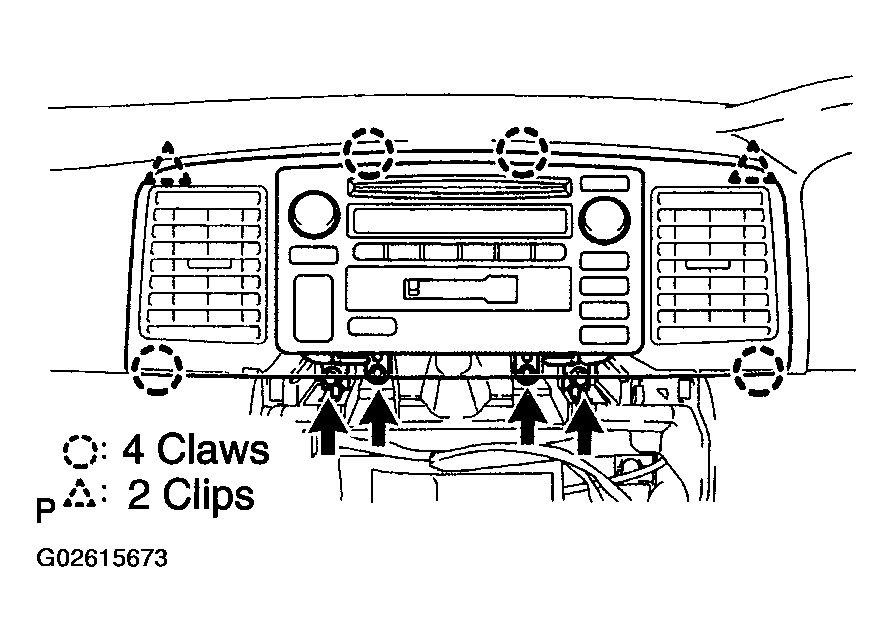

    Fig 1: Removing Instrument Cluster Finish Panel Sub-Assy Center
    G02615673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RADIO RECEIVER ASSY
    1. Disengage the 4 claws and 6 pins.
    2. Remove the radio receiver assy from the instrument cluster finish panel sub-assy center.

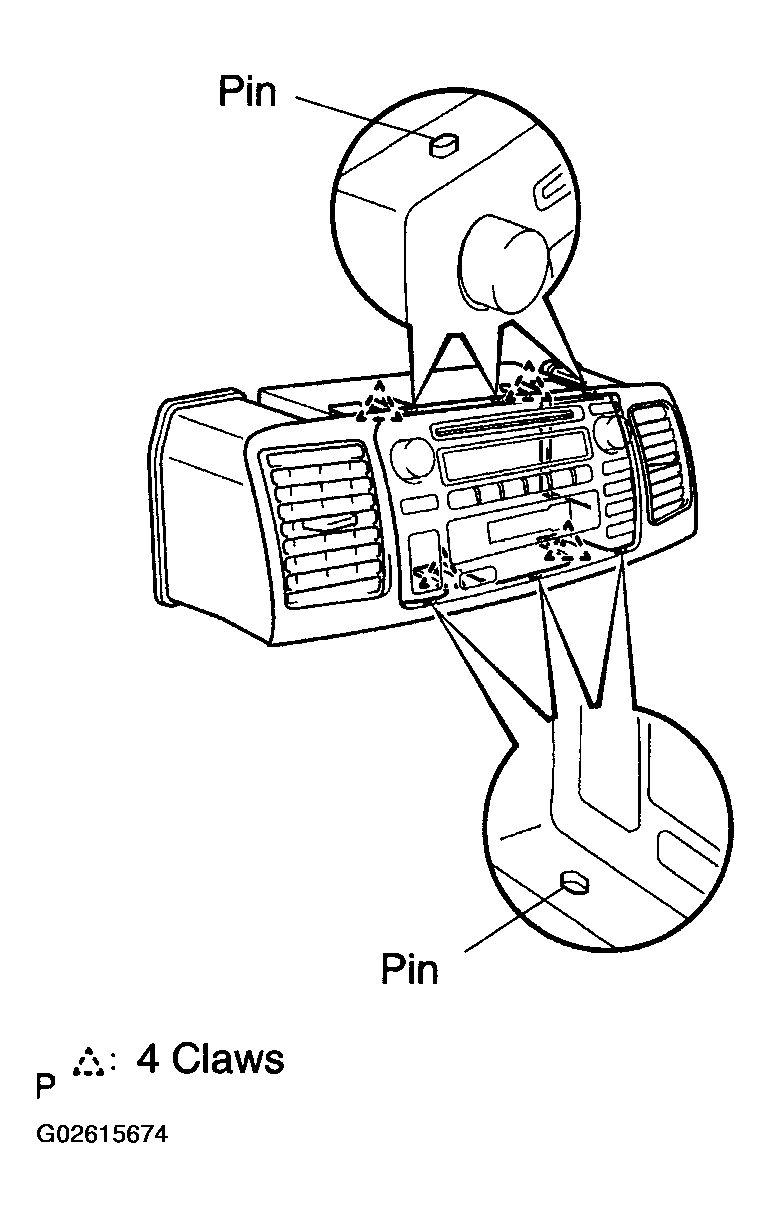

    Fig 2: Removing Radio Receiver Assy
    G02615674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE RADIO BRACKET NO. 1
    1. Remove the 4 screws and radio bracket No. 1.
    Fig 3: Removing Radio Bracket No. 1
    G02615675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE RADIO BRACKET NO. 2
    1. Remove the 4 screws and radio bracket No. 2.
    Fig 4: Removing Radio Bracket No. 2
    G02615676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
    1. Place the radio receiver assy temporarily on the instrument panel sub-assy upper. (*1)
    2. Under the condition of (*1), engage the 6 pins and 4 claws of the radio receiver assy with the instrument cluster finish panel sub-assy center. (*2)
    3. Under the condition of (*2), slide the instrument cluster finish panel sub-assy center and the radio receiver assy forward of the vehicle.
      Fig 5: Engage The 6 Pins And 4 Claws Of The Radio Receiver
      G02615677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the connectors and install the 2 clips and 4 claws.
    5. Install the 4 screws and instrument cluster finish panel sub-assy center with radio receiver assy.

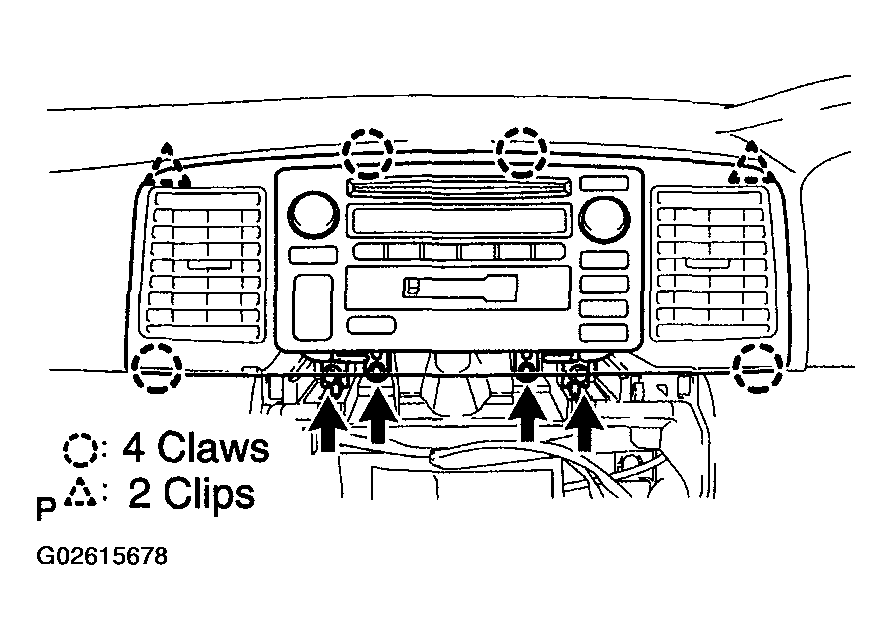

    Fig 6: Installing The 4 Screws And Instrument Cluster Finish Panel Sub-Assy
    G02615678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
