Horn Button ASSY: Components

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

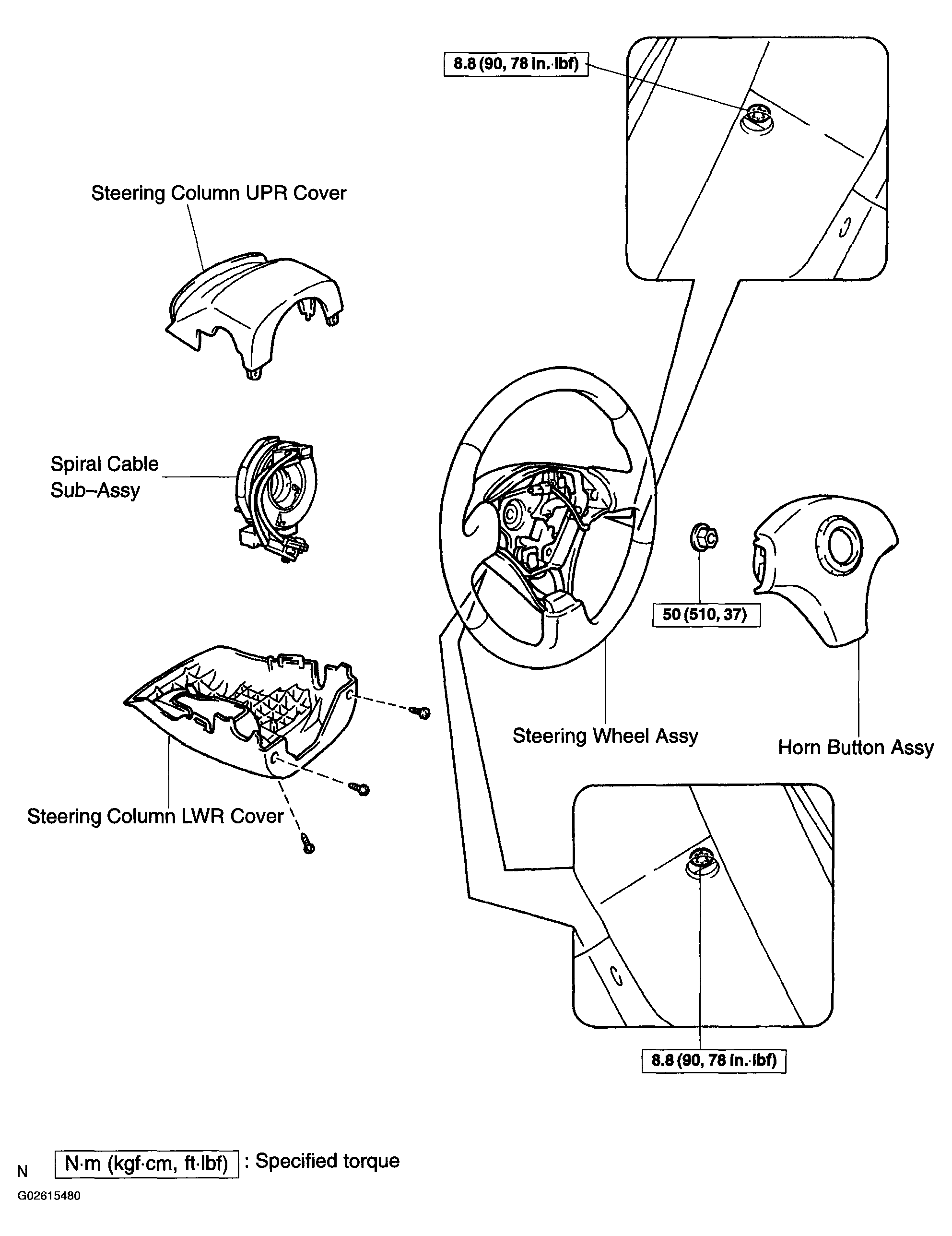

Fig 1: Identifying Horn Button Assy Components
G02615480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
